LC-46D82U/LC-52D82U
2 – 19

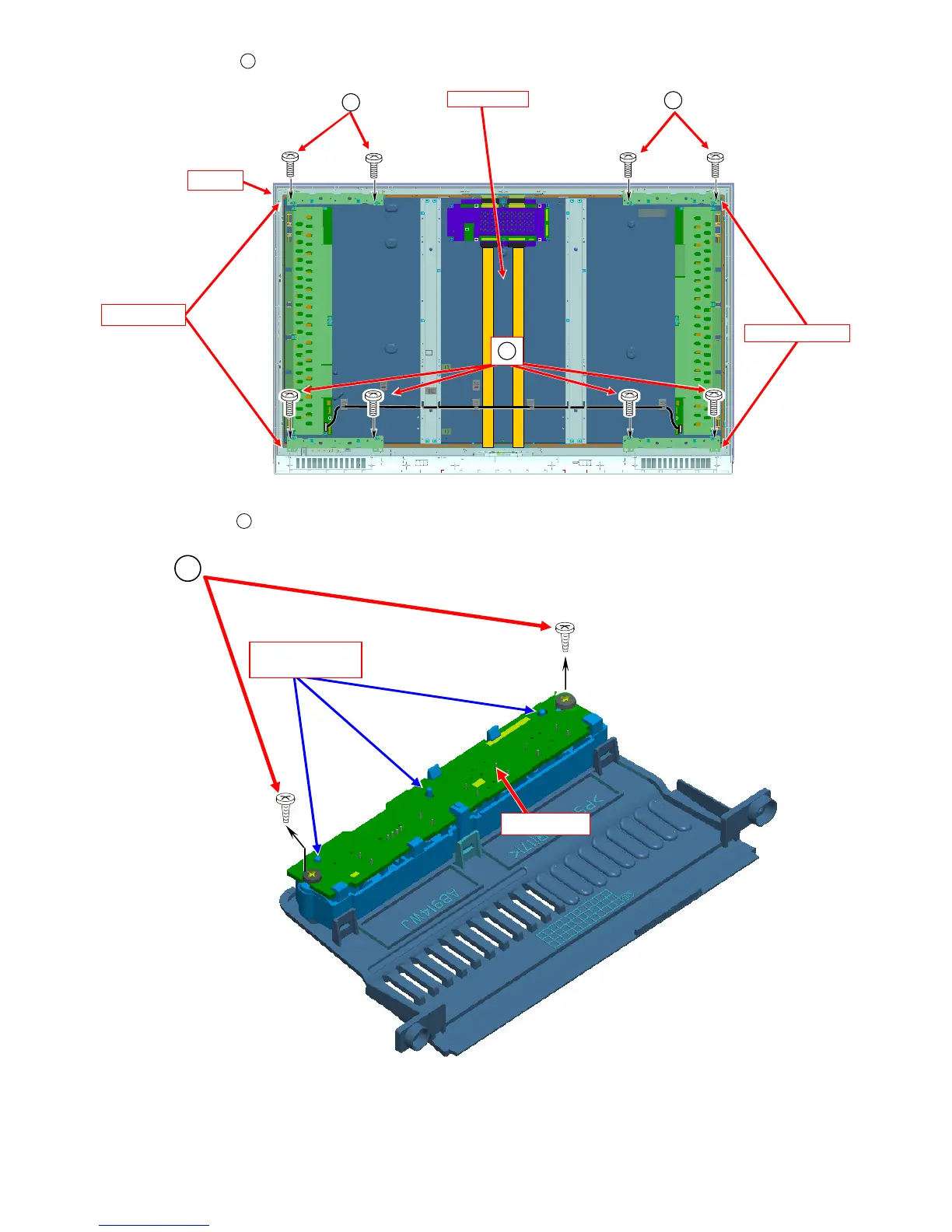

16.Remove the 8 lock screws and detach the Chassis Fix Angle Top/Bottom.
17.Remove the 2 lock screws , and detach the Key Unit.
14
PANEL_MODULE
KS CAB-A
CHS FIX ANG T/B
CHS FIX ANG T/B
14
14
14
15
KEY UNIT
The guidepin
㵘
of positioning x3
15
