LC-46D82U/LC-52D82U
2 – 22

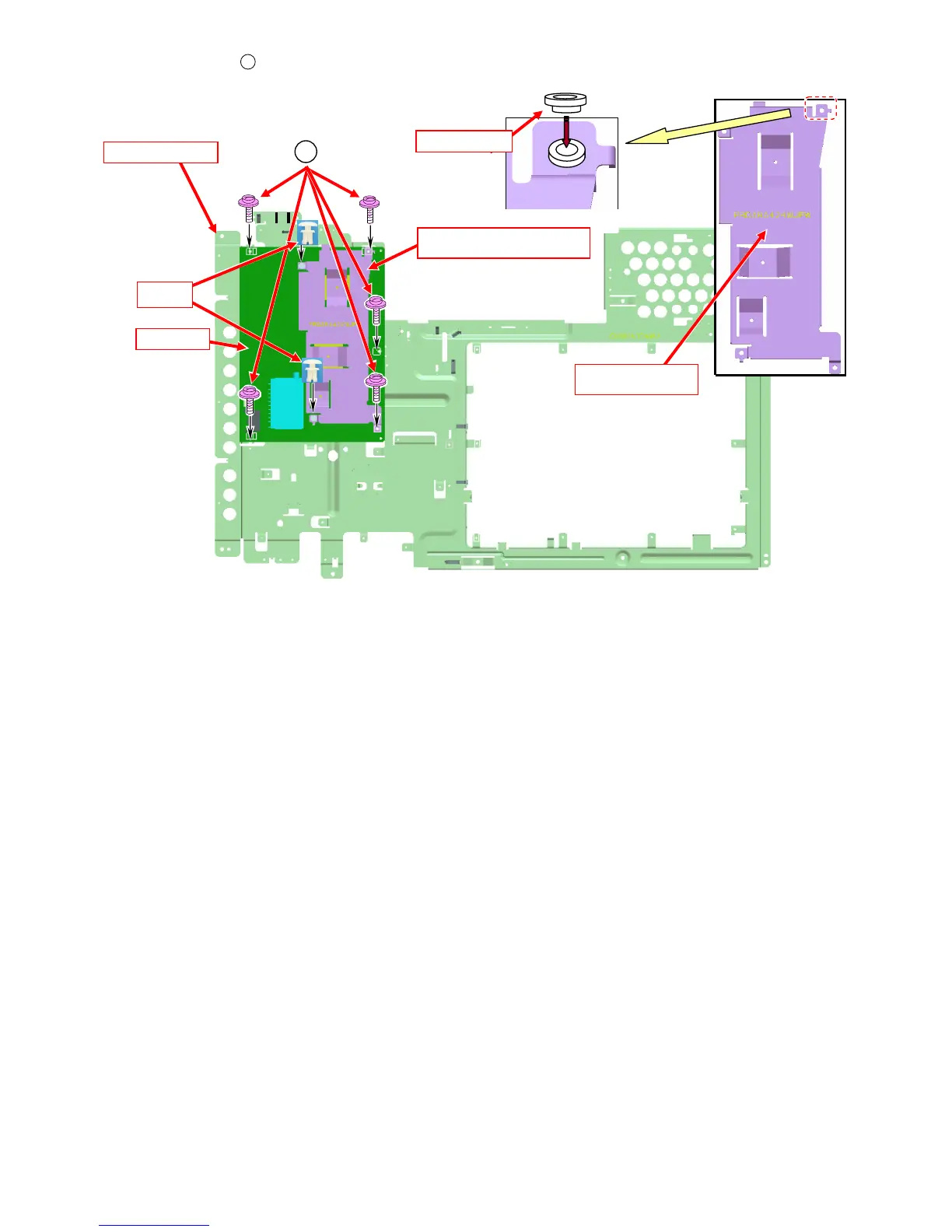

22.Remove the 5 lock screws and 2 lock rivets detach the Main unit and Radiator A Main.
21
CHA
MAIN UNIT
KS TRAY CHASSIS
PREPARED RADIATOR-A-MAIN
RIVET
RADIATOR-A-MAIN
RESIN WASHER
21
