Sharp LC-52LE640U User Manual

LC-52/60/70LE640U,C6400U (1st Edition)
4 – 5

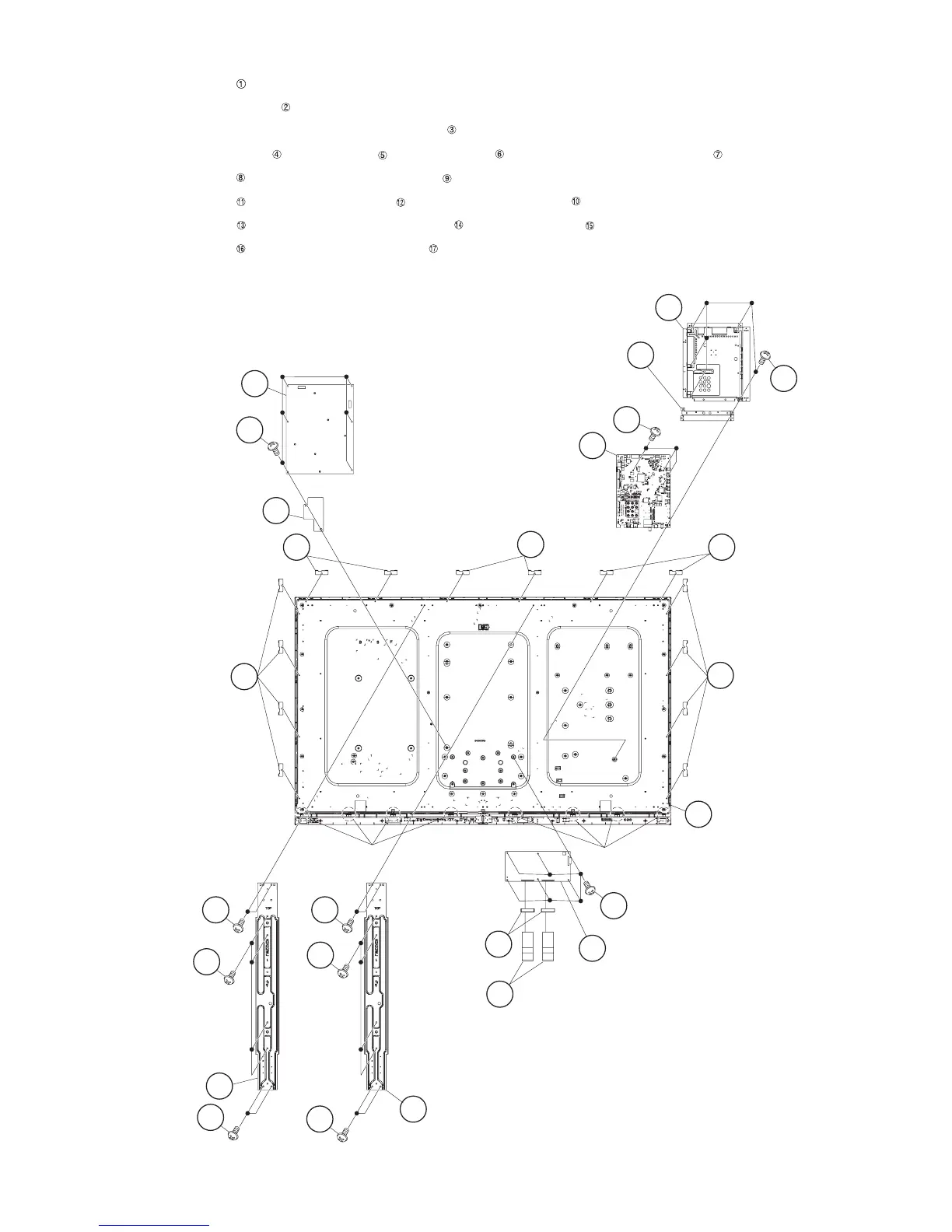

4. Removing of 60” LCD Panel Module Unit, LCD CONTROL Unit, MAIN Unit, POWER/DRIVE Unit.
1. Remove the 8 lock screws .
2. Detach the 14 Fixing Metal Angles .
3. Remove the 8 Hooks and detach the 60” LCD Panel Module Unit .
4. Remove the 2 Connecting Cords , 2 Ferrite Cores and 6 lock screws and detach the LCD CONTROL Unit .
5. Remove the 5 lock screws and detach the Shield (MAIN Unit) .
6. Remove the 3 lock screws and detach the MAIN Unit and Terminal Angle (Bottom) .
7. Remove the 6 lock screws and detach the POWER/DRIVE Unit and AC Cord Barrier .
8. Remove the 8 lock screws and detach the 2 Center Angles .
60" LCD Panel
Module Unit
3
LCD CONTROL Unit
7
17
Center
Angle
2Fixing Metal
Angle
5Ferrite Core
2 Fixing Metal
Angle
1
16
1
1
17 Center
Angle
1
16
Hook
4 Connecting
Cord
Hook
2Fixing Metal
Angle
15AC Cord Barrier
2
8
Fixing Metal
Angle
2 Fixing Metal
Angle
14
POWER/DRIVE Unit
13
12
11
MAIN Unit
10Terminal Angle
(Bottom)
9
Shield
(MAIN Unit)
6

Sharp LC-52LE640U Specifications

General

Display diagonal	52 \
Display brightness	- cd/m²
Native aspect ratio	16:9
Native refresh rate	120 Hz
Supported video modes	1080p
Viewing angle, vertical	176 °
Contrast ratio (dynamic)	4000000:1
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Placement supported	Horizontal
Product color	Black
Panel mounting interface	- mm
Tuner type	Analog & digital
Analog signal format system	NTSC
Digital signal format system	ATSC
RMS rated power	20 W
Number of speakers	2
HDCP	-
HDMI version	1.4
HDMI ports quantity	4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	0
Component video (YPbPr/YCbCr) in	1
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	- W
Power consumption (typical)	150 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	333 mm
Height (with stand)	771 mm
Weight (with stand)	25500 g
Depth (without stand)	72 mm
Width (without stand)	1208 mm
Height (without stand)	739 mm
Weight (without stand)	22500 g
