Sharp LC-52LE640U - Internal Connector Disconnection Procedures

LC-52/60/70LE640U,C6400U (1st Edition)
4 – 4
3. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. (PD, LV, PL, Cl, UB)
2. Disconnect the following connectors from the POWER/DRIVE Unit. (PD, LA)
3. Disconnect the following connectors from the LCD CONTROL Unit. (LW, PL)

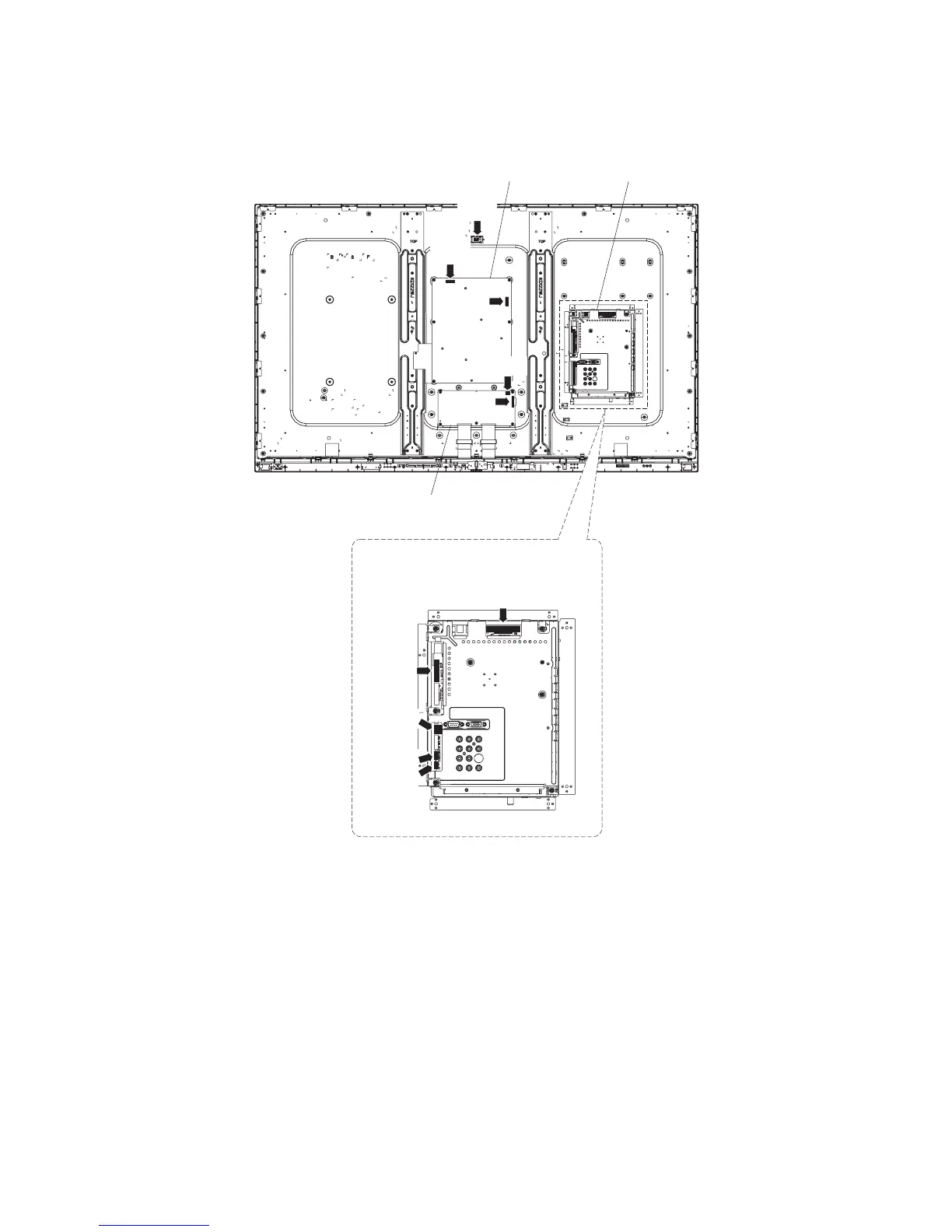

MAIN UnitPOWER/DRIVE Unit
LCD CONTROL Unit
MAIN Unit
[PD]
[LV]
[LW]
[PD]
[PL]
[CI]
[UB]
[PL]
[LA]
[LA]
