Sharp LC-52LE700E Service Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
4 – 3

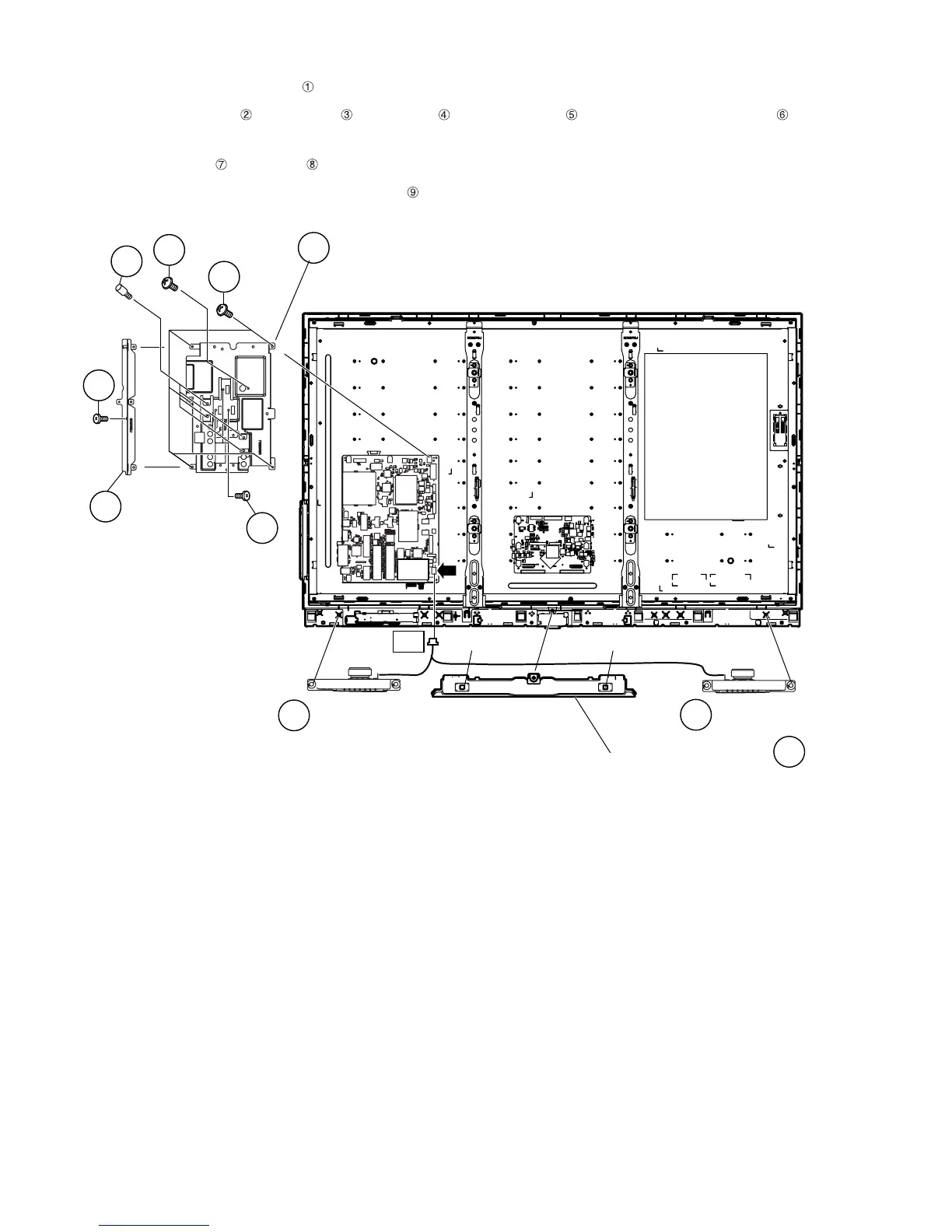

2. Removing of Side Terminal Angle Ass’y, Main PWB Shield, Speaker-L/R and Bottom Cover Ass’y.
1. Detach the Side Terminal Angle Ass’y .
2. Remove the 4 lock screws , 1 lock screw , 4 lock shafts and 5 lock screws and detach the Main PWB Shield .
3. Disconnect SP wire.
4. Detach the Speaker-L , Speaker-R .
5. Remove the 2 hooks and detach the Bottom Cover Ass’y .
䎶䎳
䎘
䎖
䎗
䎙
䎕
䎰䏄䏌䏑䎃䎳䰣䰎䙤䎶䏋䏌䏈䏏䏇
䎕
䎔
䎶䏌䏇䏈䎃䎷䏈䏐䏌䏑䏄䏏䎃
䎤䏑䏊䏏䏈䎃䎤䏖䏖䎊䏜
䎶䏓䏈䏄䏎䏈䏕䎐䎵
䎶䏓䏈䏄䏎䏈䏕䎐䎯
䎛
䎚
䎥䏒䏗䏗䏒䏐䎃䎦䏄䏙䏈䏕䎃䎤䏖䏖䎊䏜
䎜
䎶䎳
Hook
Hook

Sharp LC-52LE700E Specifications

General

Display diagonal	52 \
Display brightness	450 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Viewable size diagonal	1320 mm
Contrast ratio (dynamic)	3000000:1
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	176 °
Power requirements	AC 220-240 V / 50 Hz
RS-232 ports	1
HDMI ports quantity	4
SCART ports quantity	2
Component video (YPbPr/YCbCr) in	3
Product color	Black
Tuner type	Analog & digital
Analog signal format system	NTSC

Weight and Dimensions

Depth (without stand)	95 mm
Width (without stand)	1238 mm
Height (without stand)	765 mm
Weight (without stand)	27600 g
