Sharp LC-52LE700E Service Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
4 – 4

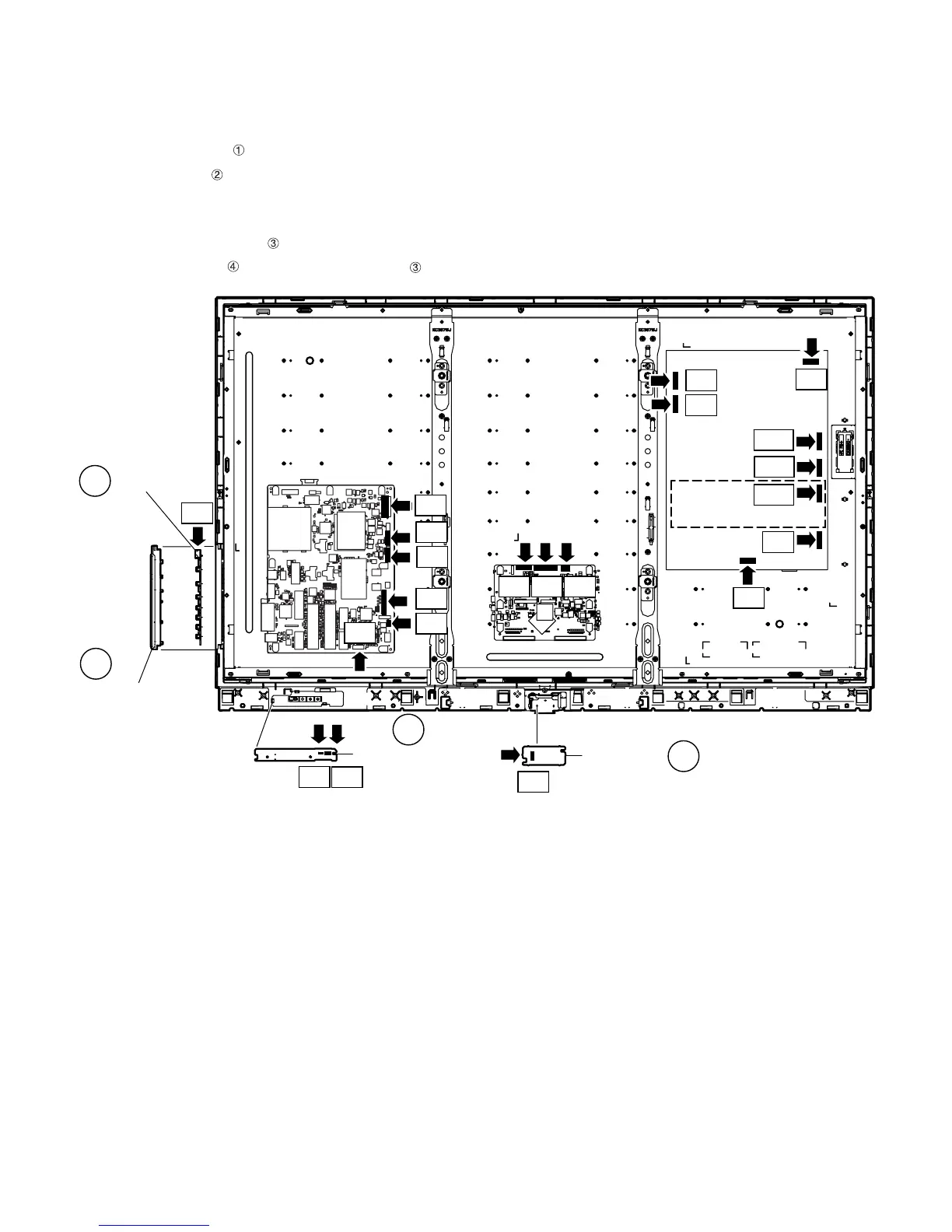

3. Removing of Connectors, R/C, LED Unit, ICON Unit and Control Button Ass’y.
1. Disconnect the following connectors from the MAIN Unit. (RA, LB, PD, KM, LP, LW)
2. Disconnect the following connectors from the POWER Unit. (PD, PL, LB, AS LA1, LA2, LA3 (except for 32/40 inch models))
3. Disconnect the following connectors from the LCD Control Unit. (LP, LW, PL)
4. Detach the R/C, LED Unit .
5. Detach the ICON Unit .
6. Disconnect the following connectors from the R/C, LED Unit. (RA, IM)
7. Disconnect the following connector from the ICON Unit. (IM)
8. Detach the Control Button Ass’y .
9. Disconnect the KEY Unit from the Control Button Ass’y and disconnect the connection cord from the KM Connector.
