Sharp LC-52LE700E Service Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
5 – 14

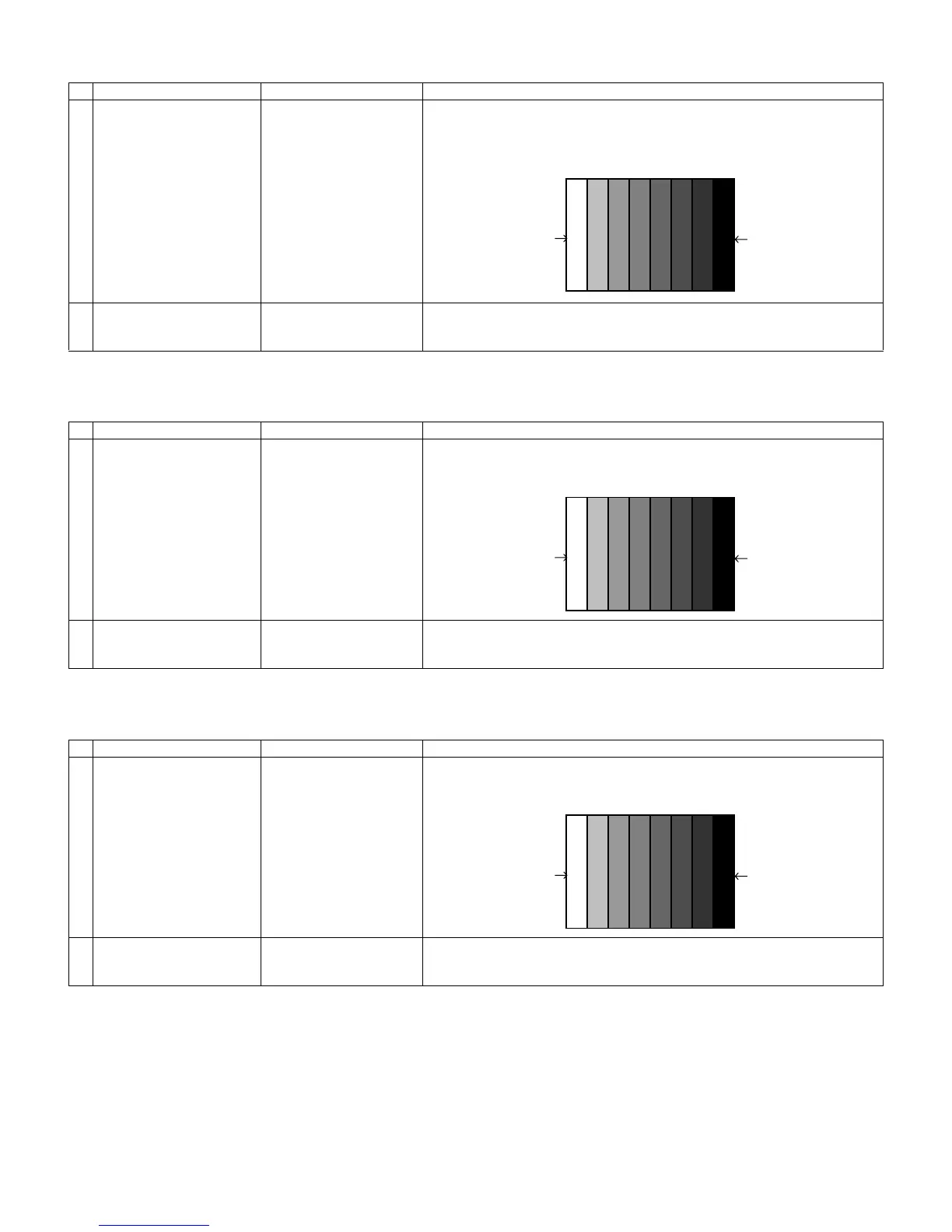

9.4. SECAM adjustment
9.5. ADC adjustment (Component 15K)
9.6. ADC adjustment (Component 33K)
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
SECAM
Full field colour Bar Signal
[Terminal]
EXT1 SCART IN
• Feed the SECAM full field colour bar signal (75% colour saturation) to EXT1
SCART IN.
2 Auto adjustment perfor-
mance
Adjustment process
[SECAML ADJ]
page 4/17
Bring the cursor on [SECAM ADJ] and press [OK] [SECAM ADJ OK] appears
when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
COMP15K, 50Hz
100% Full field colour bar
Signal
[Terminal]
EXT3 COMPONENT IN
• Feed the COMPONENT 15K 100% full field colour bar signal (100% colour sat-
uration) to EXT3 COMPONENT IN.
2 Auto adjustment perfor-
mance
Adjustment process
[COMP15k ALL ADJ]
page 6/17
Bring the cursor on [COMP15k ALL ADJ] and press [OK] [COMP15k ALL ADJ
[OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
COMP33K, 50Hz
100% Full field colour bar
Signal
[Terminal]
EXT3 COMPONENT IN
• Feed the COMPONENT 33K 100% full field colour bar signal (100% colour sat-
uration) to EXT3 COMPONENT IN.
2 Auto adjustment perfor-
mance
Adjustment process
[HDTV] menu
page 7/17
Bring the cursor on [HDTV ADJ] and press [OK].
[HDTV ADJ [OK] appears when finished.
100% white Black
[VIDEO input signal]
100% white Black
100% white Black

Sharp LC-52LE700E Specifications

General

Display diagonal	52 \
Display brightness	450 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Viewable size diagonal	1320 mm
Contrast ratio (dynamic)	3000000:1
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	176 °
Power requirements	AC 220-240 V / 50 Hz
RS-232 ports	1
HDMI ports quantity	4
SCART ports quantity	2
Component video (YPbPr/YCbCr) in	3
Product color	Black
Tuner type	Analog & digital
Analog signal format system	NTSC

Weight and Dimensions

Depth (without stand)	95 mm
Width (without stand)	1238 mm
Height (without stand)	765 mm
Weight (without stand)	27600 g
