Sharp LC-52LE700E Service Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
5 – 15

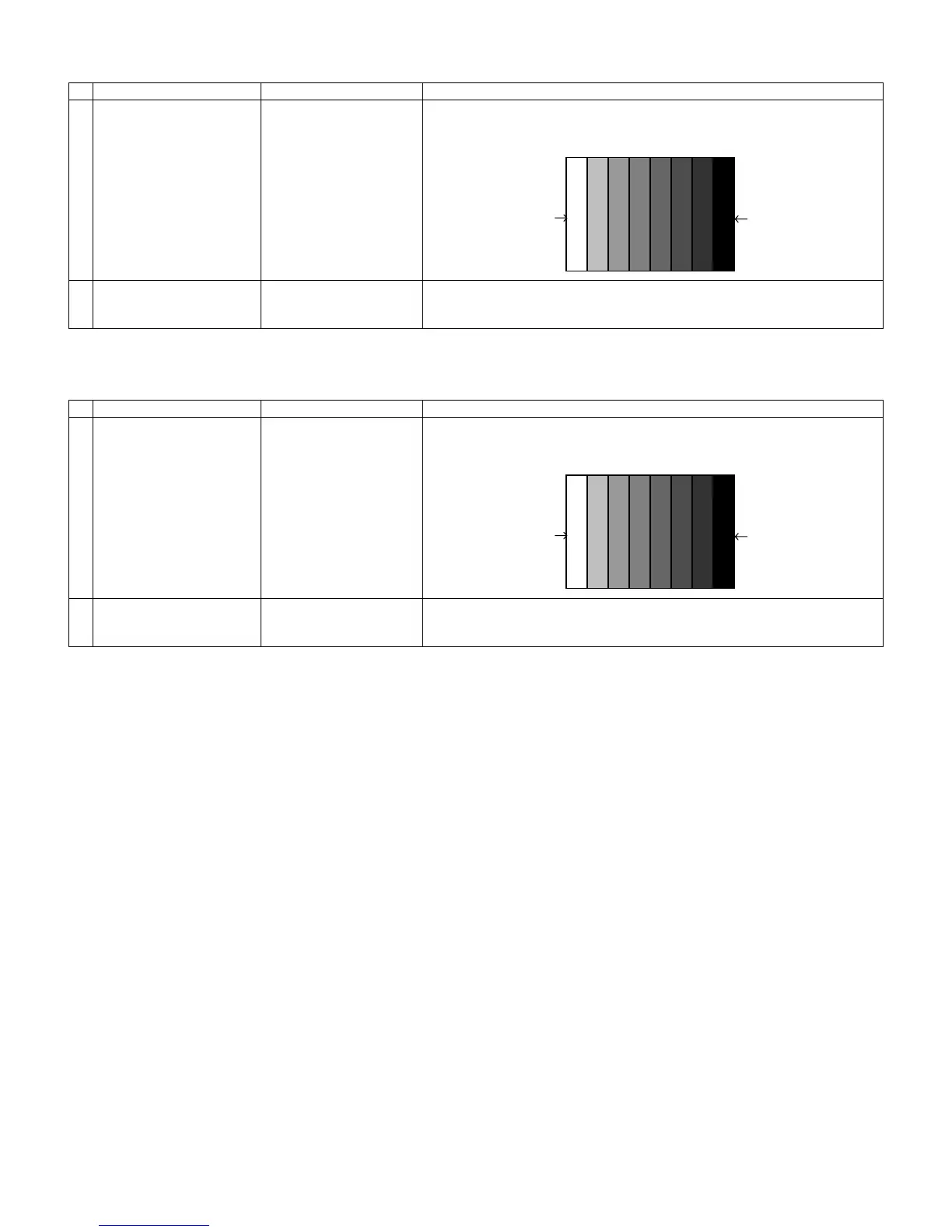

9.7. PC signal adjustment (ANALOG RPG)
9.8. RGB (SCART) adjustment (RGB 15K)
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
XGA, 60Hz
100% Full Field Colour Bar
Signal
[Terminal]
EXT4 PC IN
• Feed the XGA 60Hz 100% full field colour bar signal (100% colour saturation)
to EXT4 PC IN.
2 Auto adjustment perfor-
mance
Adjustment process
[ANALOG PC ADJ] menu
page 8/17
Bring the cursor on [ANALOG PC ADJ] and press [OK].
[ANALOG PC ADJ OK] appears when finished.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting [Signal]
RGB 15K, 50Hz
100% Full Field Colour Bar
Signal
[Terminal]
EXT1 SCART RGB IN
• Feed the RGB 15k 50Hz 100% full field colour bar signal (100% colour satura-
tion) to EXT1 SCART IN.
2 Auto adjustment perfor-
mance
Adjustment process
[SCART RGB ADJ] menu
page 9/17
Bring the cursor on [SCART RGB ADJ] and press [OK].
[SCART RGB ADJ OK] appears when finished.
100% white Black
100% white Black

Sharp LC-52LE700E Specifications

General

Display diagonal	52 \
Display brightness	450 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Viewable size diagonal	1320 mm
Contrast ratio (dynamic)	3000000:1
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	176 °
Power requirements	AC 220-240 V / 50 Hz
RS-232 ports	1
HDMI ports quantity	4
SCART ports quantity	2
Component video (YPbPr/YCbCr) in	3
Product color	Black
Tuner type	Analog & digital
Analog signal format system	NTSC

Weight and Dimensions

Depth (without stand)	95 mm
Width (without stand)	1238 mm
Height (without stand)	765 mm
Weight (without stand)	27600 g
