2.6. IC501 (VHiBR24C21F-1Y)

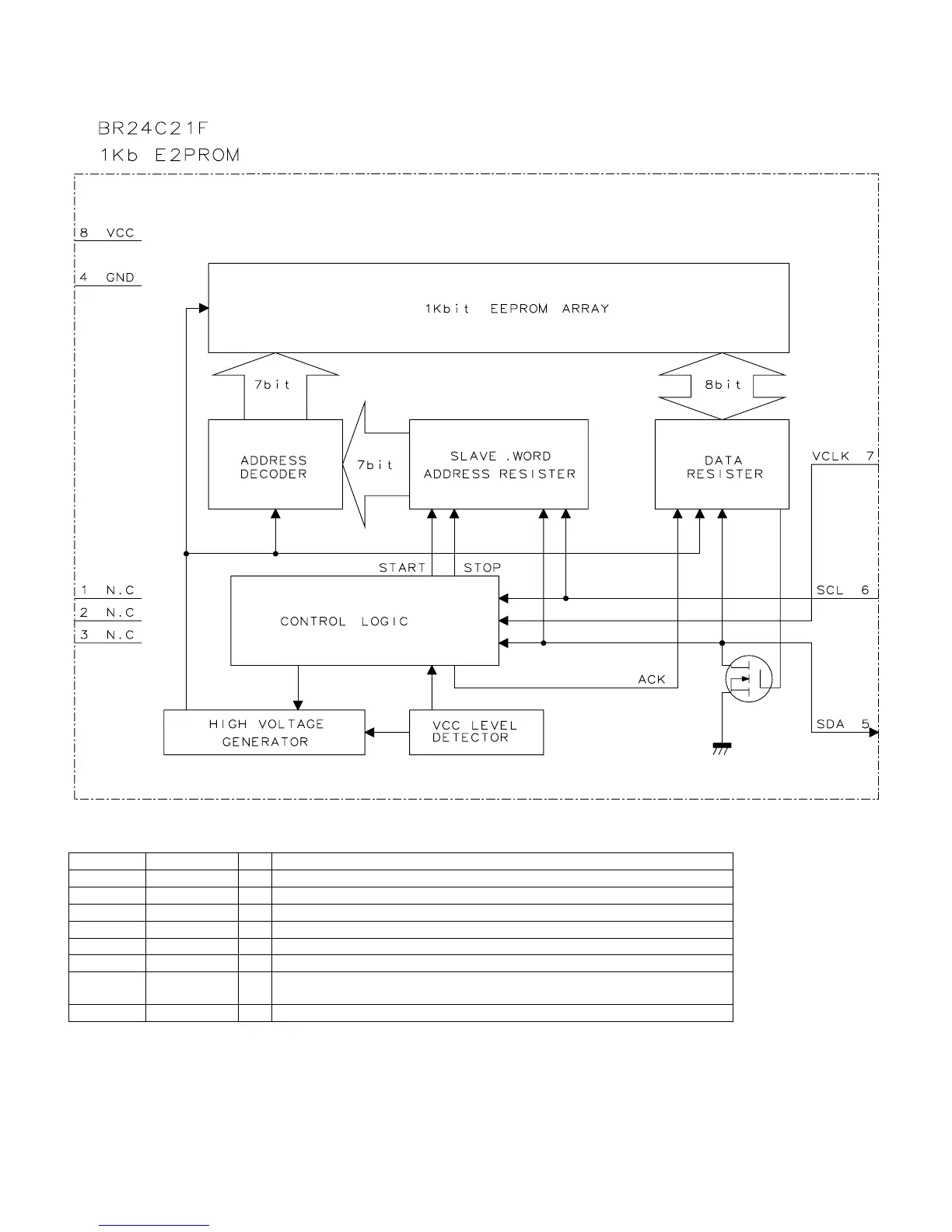

2.6.1 Block Diagram
2.6.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 N.C I No Connect : No internal electrical connection is present.
2 N.C I No Connect : No internal electrical connection is present.
3 N.C I No Connect : No internal electrical connection is present.
4 GND - Ground
5 SDA I/O Serial data Input/Output
6 SCL I Serial clock input (Bidirectional mode)
7 VCLC I CLCK Input (Transmit only mode )
Write Enable (Bidirectional mode)
8 VCC - Power supply
