Sharp LC-52LE700E Service Manual

LC-32/40/46LE700E/RU/S,LU700E/S,LX700E/RU,LC-52LE700E/RU/S
7 – 12

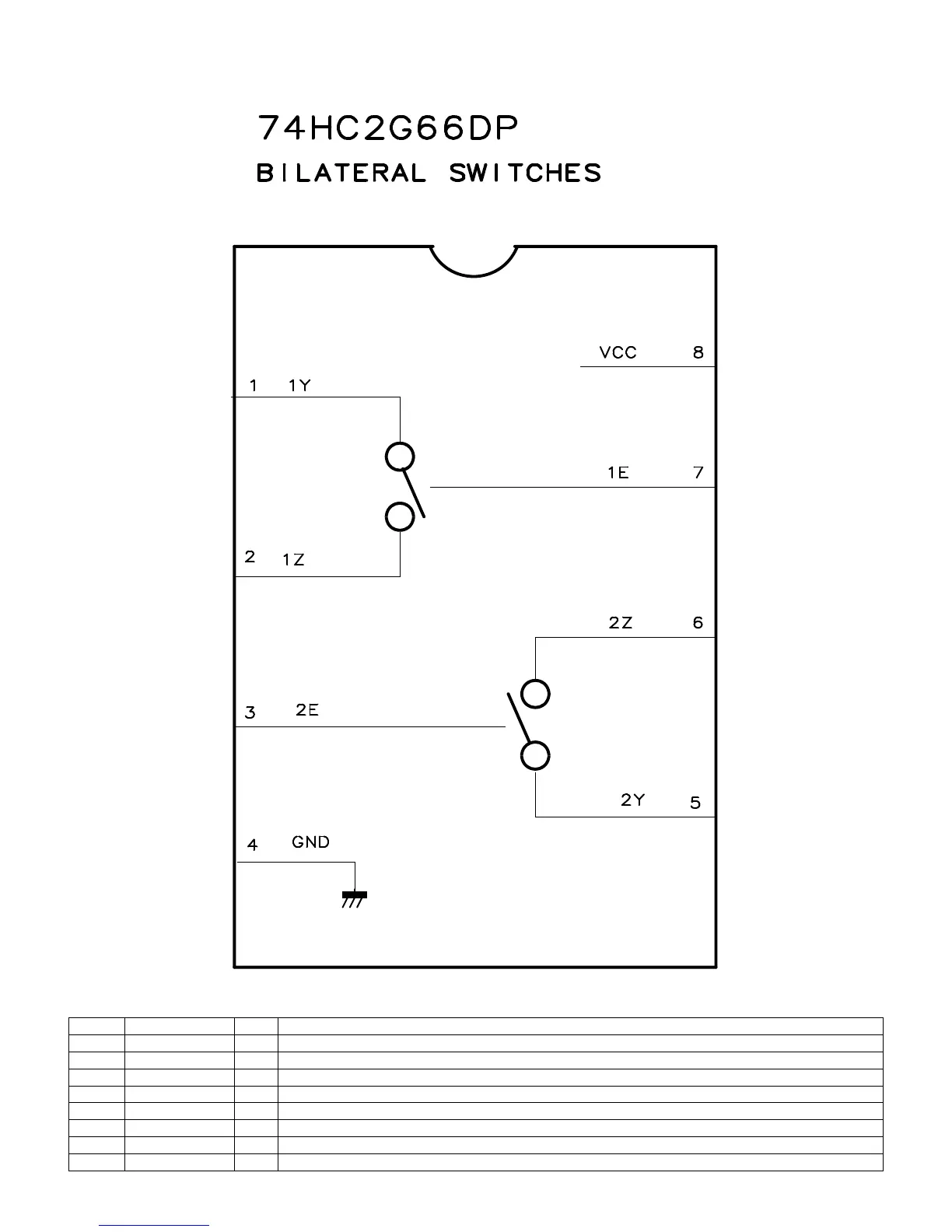

2.7. IC2601, IC9611 (VHiHC2G66DP-1Y)
2.7.1 Block Diagram
2.7.2 Pin Connections and short description
Pin No. Pin Name I/O Pin Function
1 1Y I/O Independent input or output.
2 1Z I/O Independent input or output.
3 2E I Enable input (active HIGH).
4 GND — Ground
5 2Y I/O Independent input or output.
6 2Z I/O Independent input or output.
7 1E I Enable input (active HIGH).
8 VCC — Supply voltage.

Sharp LC-52LE700E Specifications

General

Display diagonal	52 \
Display brightness	450 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Viewable size diagonal	1320 mm
Contrast ratio (dynamic)	3000000:1
Contrast ratio (typical)	4000:1
Viewing angle, horizontal	176 °
Power requirements	AC 220-240 V / 50 Hz
RS-232 ports	1
HDMI ports quantity	4
SCART ports quantity	2
Component video (YPbPr/YCbCr) in	3
Product color	Black
Tuner type	Analog & digital
Analog signal format system	NTSC

Weight and Dimensions

Depth (without stand)	95 mm
Width (without stand)	1238 mm
Height (without stand)	765 mm
Weight (without stand)	27600 g
