LC-60/70LE650U/C6500U/LE657U,LC-60/70LE755U/LE757U/LE857U/C7500U
4 – 10

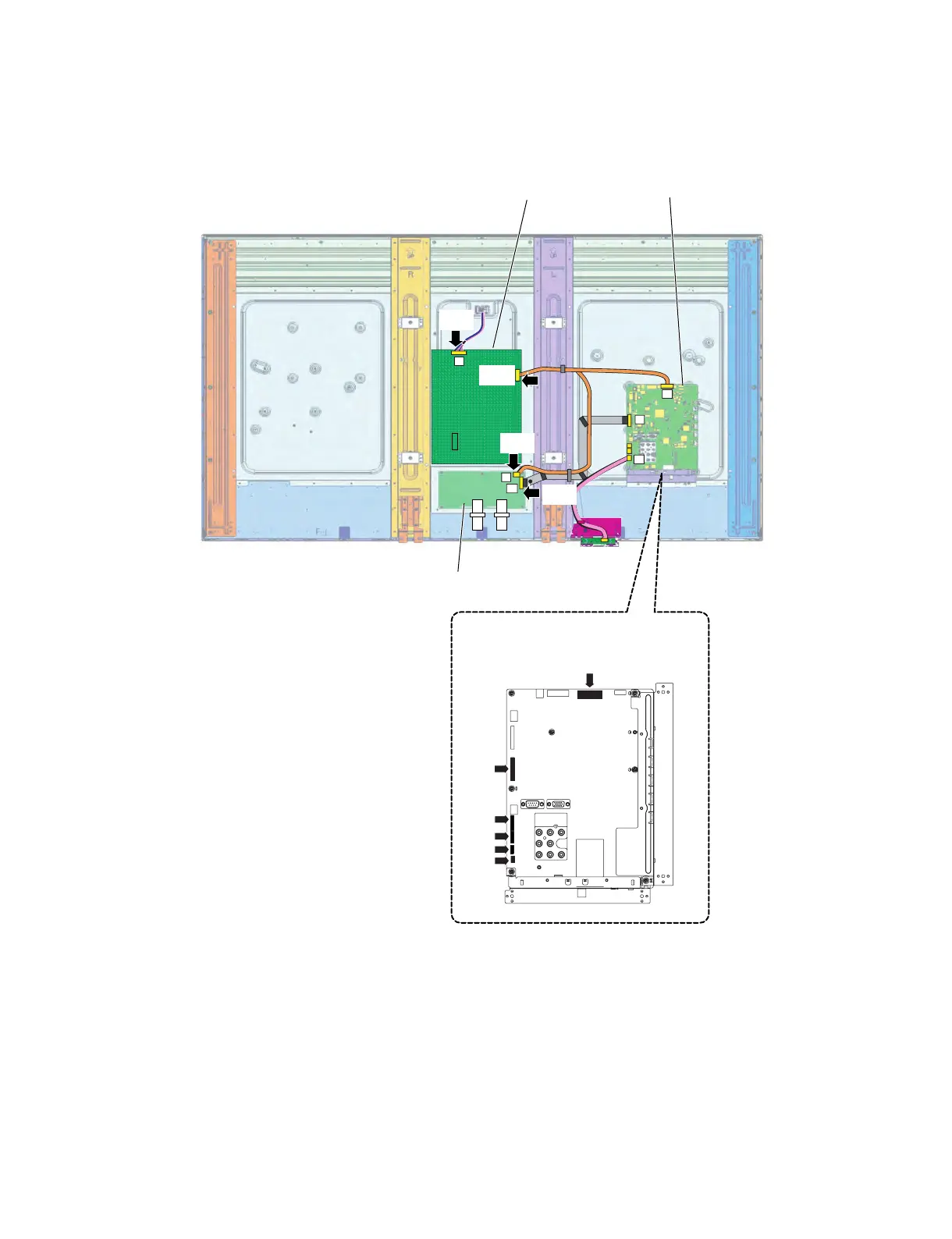

3. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. (PD, LV, RC, UB, BT/IR) (for LC-70LE657U)
2. Disconnect the following connectors from the MAIN Unit. (PD, LV, RC, UB) (for LC-70LE650U/C6500U)
3. Disconnect the following connectors from the POWER/LED DRIVER Unit. (PD, LA)
4. Disconnect the following connectors from the LCD CONTROL Unit. (LV, PL)
LA
PD
PD
LV
PL
LW
UB
䎾䎳䎧䏀
䎾䎯䎤䏀
䎯䎦䎧䎃䎦䎲䎱䎷䎵䎲䎯䎃䎸䏑䏌䏗
䎰䎤䎬䎱䎃䎸䏑䏌䏗
䎳䎲䎺䎨䎵䎒䎯䎨䎧䎃䎧䎵䎬䎹䎨䎵䎃䎸䏑䏌䏗
䎰䎤䎬䎱䎃䎸䏑䏌䏗
䎾䎳䎯䏀
䎾䎯䎹䏀
[UB]
[RC]
[IR]
[BT]
[LV]
[PD]
To Next Page
