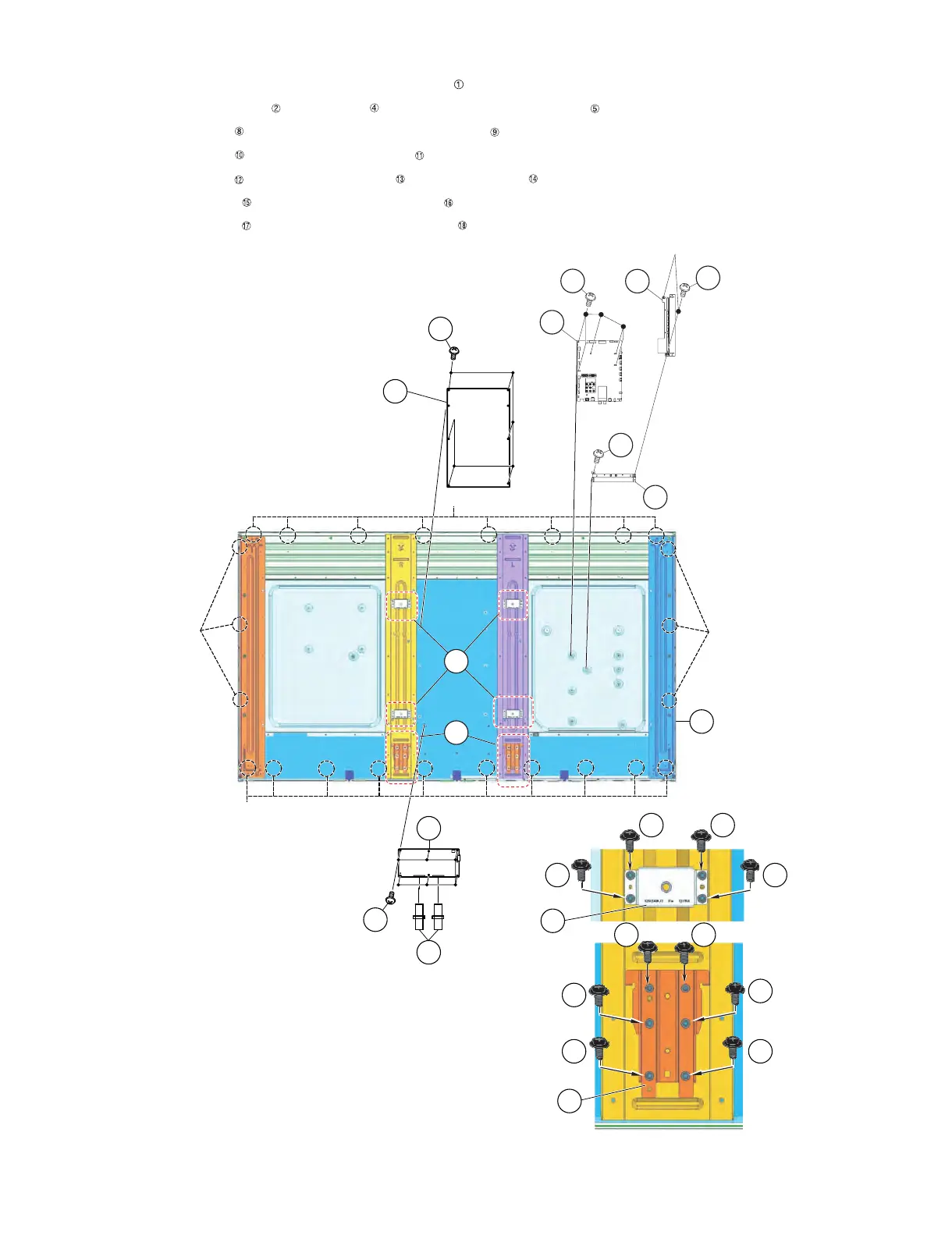

4. Removing of 70” LCD Panel Module Unit, LCD CONTROL Unit, MAIN Unit, POWER/LED DRIVER Unit.
1. Remove the 24 Hooks and detach the 70” LCD Panel Module Unit .
2. Remove the 2 Connecting Cords , 6 lock screws and detach the LCD CONTROL Unit .
3. Remove the 6 lock screws and detach the POWER/LED DRIVER Unit .
4. Remove the 2 lock screws and detach the Terminal Side .
5. Remove the 6 lock screws and detach the MAIN Unit and Terminal Bottom .
6. Remove the 12 lock screws and detach the 2 Stand Fix Angle .
7. Remove the 16 lock screws and detach the 4 VESA Angle Ass’y .
