LC-60/70LE650U/C6500U/LE657U,LC-60/70LE755U/LE757U/LE857U/C7500U
4 – 26

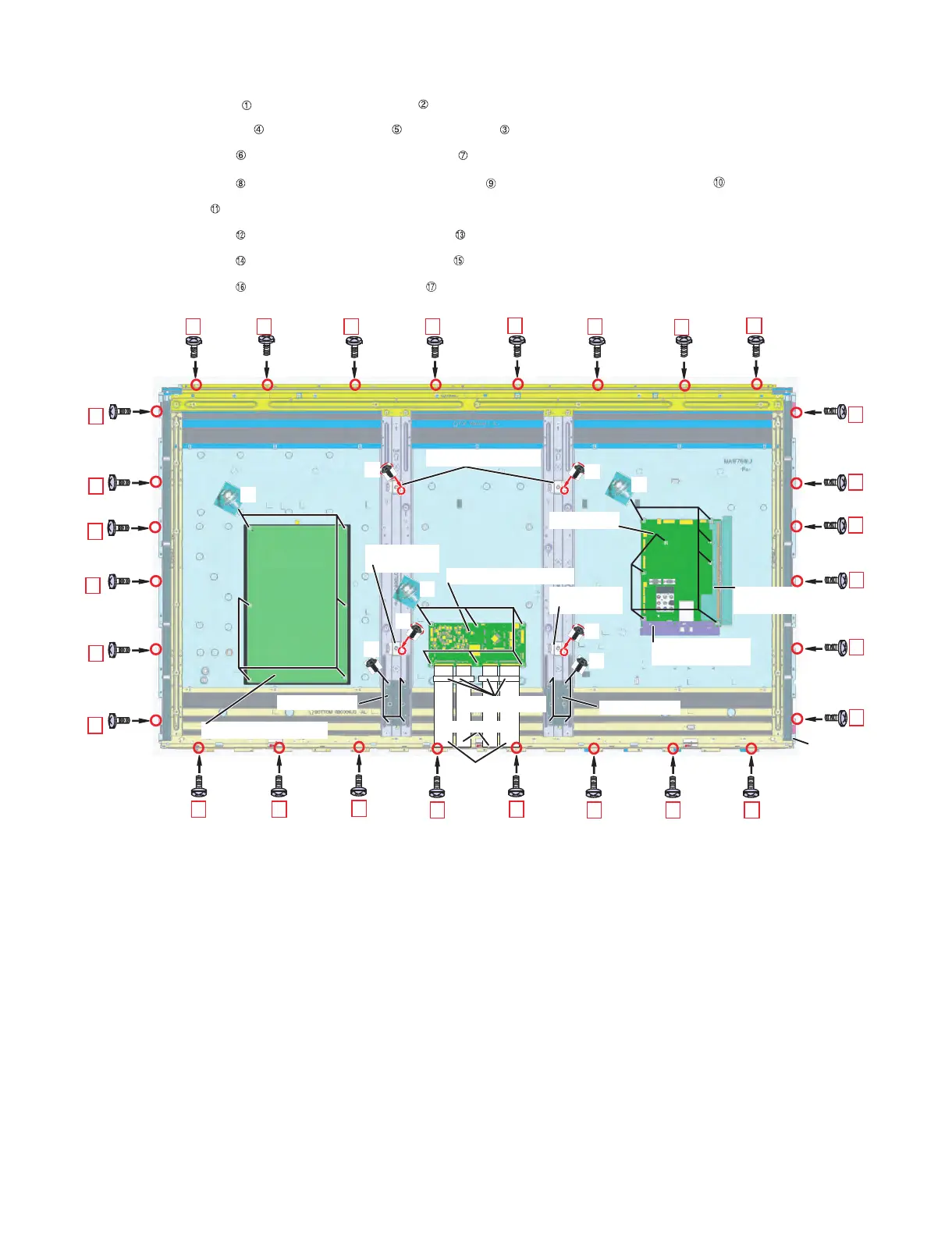

4. Removing of Frame Ass'y, LCD CONTROL Unit, MAIN Unit, POWER/DRIVE Unit, VESA Angle Ass'y and
Stand Angle.
1. Remove the 28 lock screws and Detach the Frame Ass'y .
2. Remove the 2 FFC80p Cords and 2 FFC64p Cords , 4 Ferrite Cores .
3. Remove the 6 lock screws and detach the LCD CONTROL Unit .
4. Remove the 8 lock screws and detach the Terminal Angle Side Ass'y and the Terminal Angle Bottom Ass'y .
5. Detach the MAIN Unit .
6. Remove the 6 lock screws and detach the POWER/DRIVE Unit .
7. Remove the 4 lock screws and detach the 4 VESA Angle Ass'y .
8. Remove the 8 lock screws and detach the 2 Stand Angles .
ԞLCD CONTROL Unit
ԚFerrite Core
ԛFFC80P
Ԧ8'5##PING#UU[
Ԧ8'5##PING
#UU[
Ԧ8'5##PING
#UU[
Ԩ5VCPF#PING
Ԩ5VCPF#PING
ԠTerminal Angle
Side Ass'y
ԡTerminal Angle
Bottom Ass'y
MAIN UnitԢ
ԤPOWER/DRIVE Unit
ԜFFC64P
ԙFrame
Ass'y
ԧ
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
ԝ
ԟ
ԣ
ԥ
ԥ
ԥ
ԥ
ԧ
