12

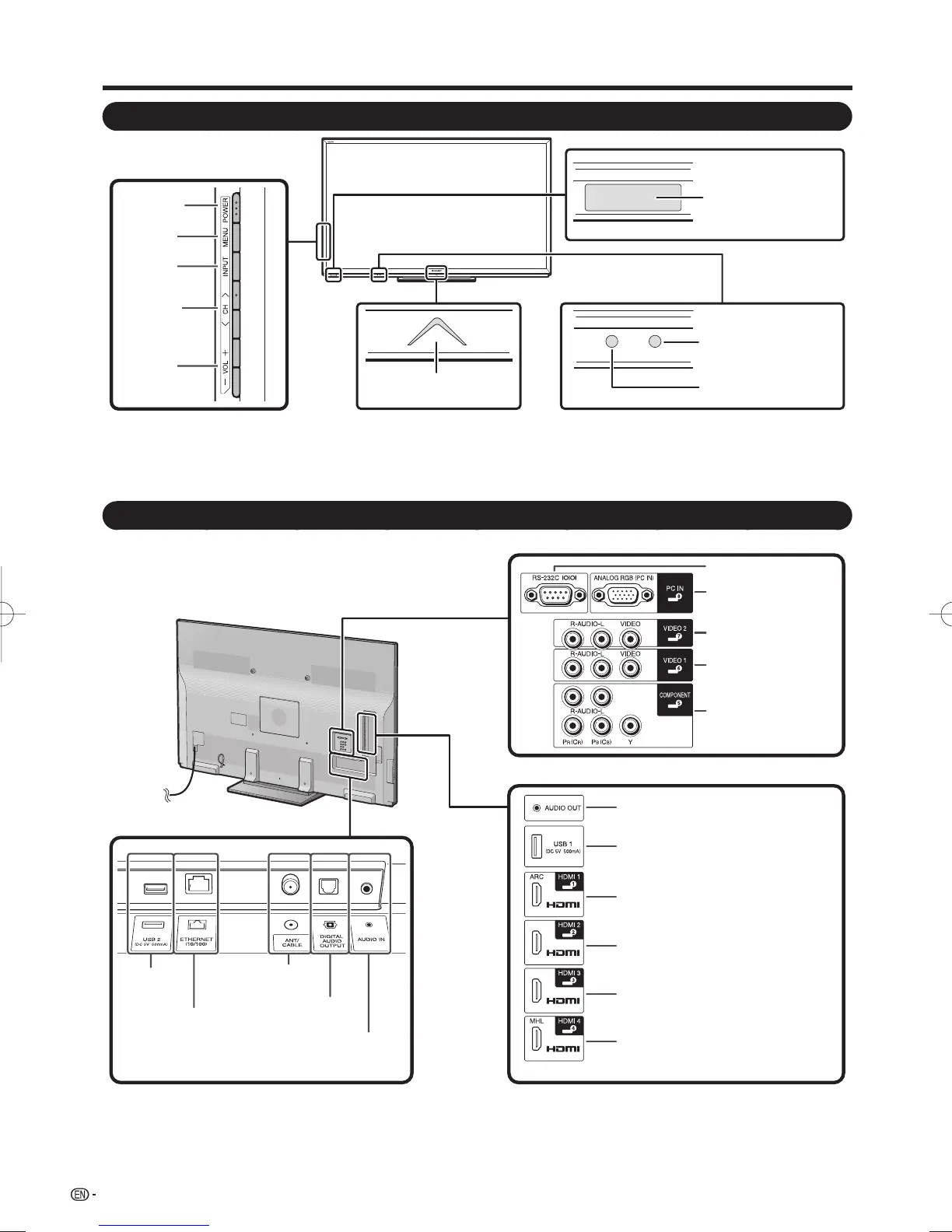

Part Names
TV (Front/Side)
Center Icon illumination
(See page 35.)
Remote control sensor
*1 See pages 14, 19 and 27 for button operations.
*2 This panel emits the infrared signal towards the 3D Glasses you wear when you view 3D images.
Do not place anything between the 3D infrared emitter on the TV and the infrared receiver on the 3D Glasses.
When the TV is in 3D mode, the emitter may look reddish.
*3 OPC: Optical Picture Control (See page 29.)
3D infrared emitter *2
OPC sensor *3
POWER
button
MENU
button
INPUT
button
Channel
buttons
(CH
U
/
V
)
Volume
buttons
(VOL
k
/
l
)
*1
TV (Rear)
RS-232C terminal
Antenna/
Cable in
COMPONENT
terminals
DIGITAL AUDIO
OUTPUT terminal
HDMI 3 terminal
HDMI 4 terminal
MHL: Mobile High-Definition Link
(See page 65.)
HDMI 1 terminal
ARC: Audio Return Channel
(See pages 61 and 62.)
VIDEO 2 terminals
VIDEO 1 terminals
AUDIO OUT terminal
USB 1 terminal
USB 2
terminal
ETHERNET
terminal
HDMI 2 terminal
PC IN terminal
*1
*1
*1
AUDIO IN terminal
(shared for PC IN
and HDMI 2) *2
*1 See pages 14 to 18 and 61 for external equipment connection.
*2 See page 67 for details on the Audio Select function.
