Connecting to External Equipment
■

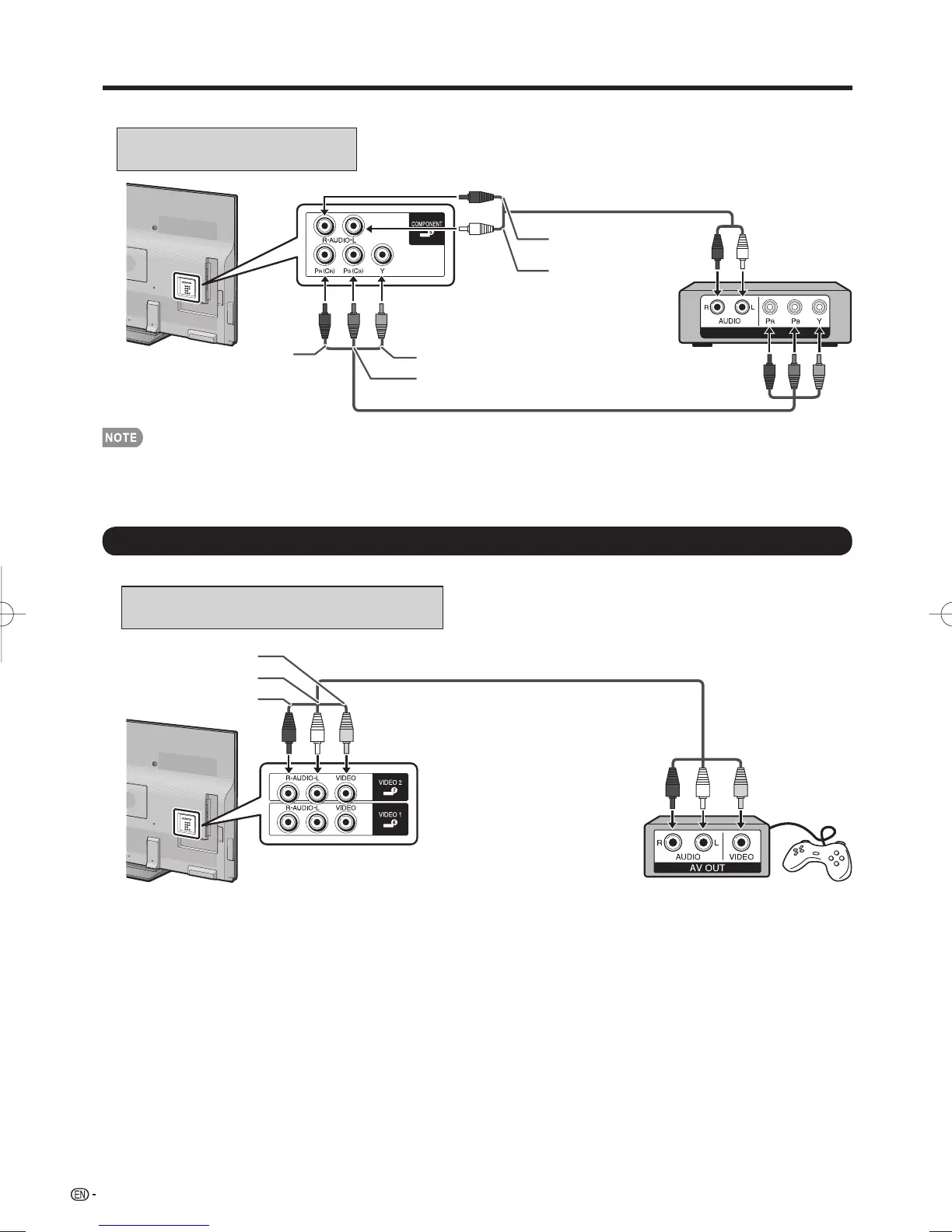

When using Component cable (COMPONENT):
• Blu-ray disc player • DVD player
• HD cable/satellite set-top box
COMPONENT OUT
AUDIO-L (White)
AUDIO-R (Red)
Y (Green)
P
B
(Blue)
P
R
(Red)
Audio cable
Component video cable
• To enjoy 1080p display capability, connect your external equipment using an HDMI-certifi ed cable or a component cable and
set the equipment to 1080p output.
• See page 15 for connecting a Blu-ray disc player, DVD player or an HD cable/satellite set-top box to the HDMI terminal.
Connecting a VCR, Game Console, Camcorder or Cable/Satellite Set-top Box
■
When using Composite cable (VIDEO 1 or 2):
• Game console • VCR
• Camcorder • Cable/Satellite set-top box
AV cable
VIDEO (Yellow)
AUDIO-L (White)
AUDIO-R (Red)
LC-7060C7450U8470UE.indb16LC-7060C7450U8470UE.indb16 2012/01/1011:59:172012/01/1011:59:17
