LC-32D47U/LC-32SB27U/LC-C3237U
4 – 4

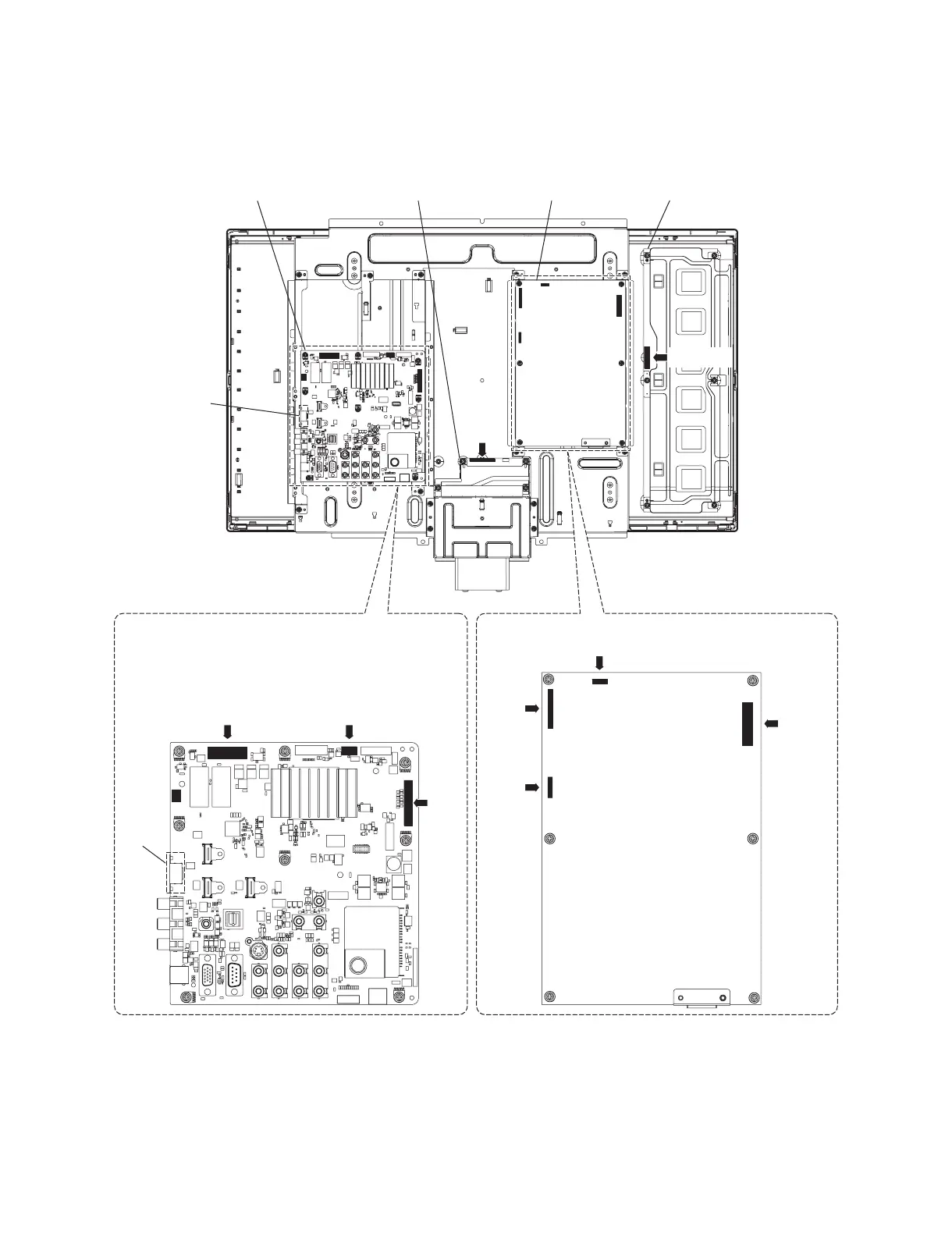

4. Removing of Connectors.
1. Disconnect the following connectors from the Main Unit. (PD, LB1, LW)
2. Disconnect the following connectors from the Power Unit. (PL, PD, LB1, LB2)
3. Disconnect the following connector from the Inverter Unit. (CN101)
4. Disconnect the following connector from the LCD Control Unit. (CN1)
[CN1]
[CN101]
POWER Unit INVERTER UnitLCD CONTROL UnitMAIN Unit
[LB1]
[LB1]
[LB2]
[PD]
[PD]
[PL]
[LW]
POWER UnitMAIN Unit
Except for
LC-32SB27U
Except for
LC-32SB27U
