13
EnglishDeutschFrançaisItalianoEspañolEnglish

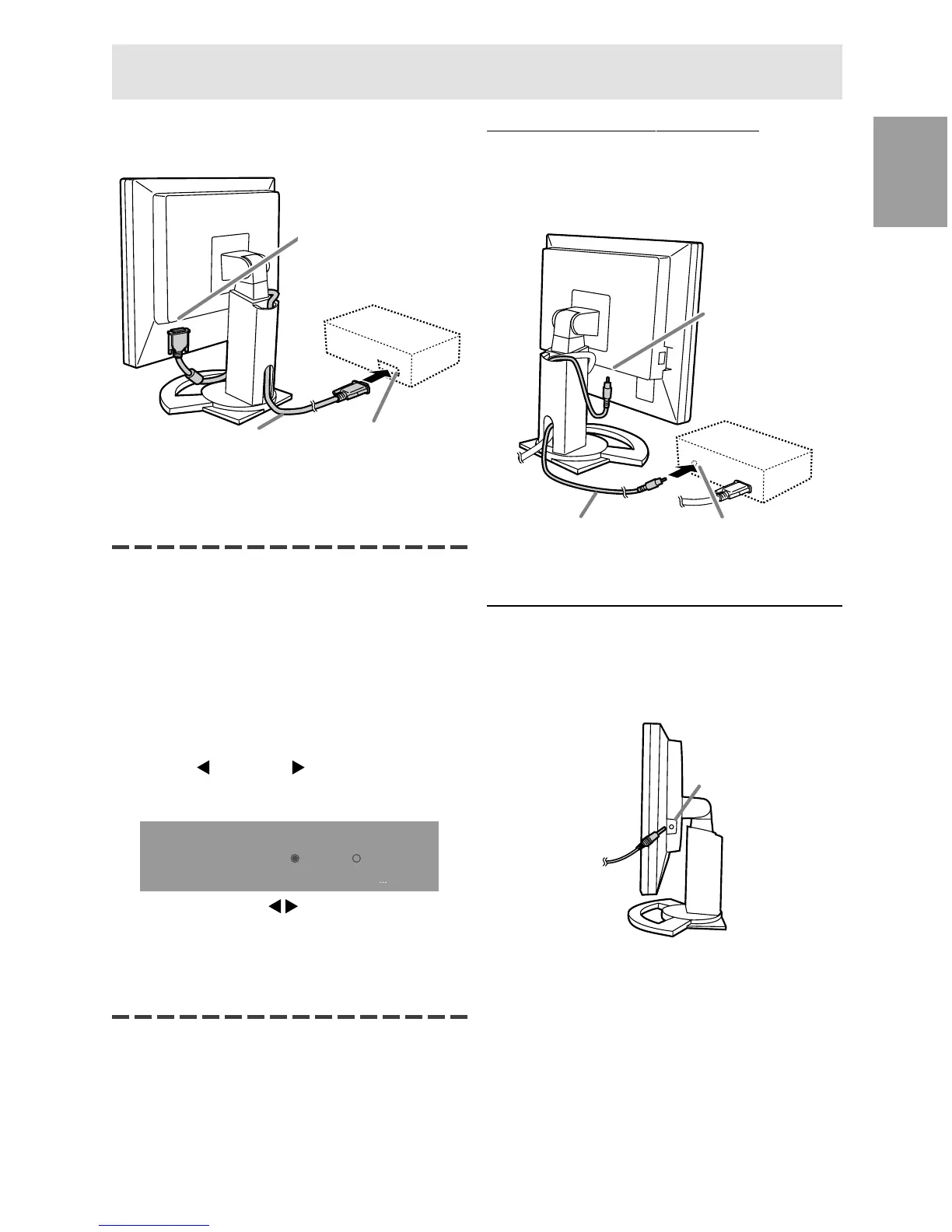

When connecting to an analog RGB output terminal:
- Use an analog signal cable (model name: NL-
C02E).
- Paying attention to connector direction, firmly
insert the signal cable to terminal, and then
tighten the screws at both sides.
Set the monitor as follows when establishing a
digital connection with a Power Mac using an ADC-
DVI adapter made by Belkin. (Operation has been
checked with the Power Mac G4 M7627J/A)
- Perform settings with the Power Mac power
supply off.
- The setup screen automatically disappears
approximately 30 seconds after the last command.
1.After connecting the power cord, turn on the
monitor’s main power.
2.Press the button and button simultaneously,
and while doing this press the POWER button
(i.e. turn the power on).
MAC DIGITAL
INPUT-2
OK [ MENU ]
ON
OFF
3.Set to "ON" with the buttons.
- Do not set to [ON] if you are not using a Belkin
ADC-DVI adapter, as this may result in
incorrect display.
4.Press the MENU button.
This completes setting.
Display cable
(purchased separately)
RGB output terminal
DVI-I input terminal
Connect the accessory audio cable
When the accessory audio cable is connected to
the audio output terminal of the computer, the
sound of the connected computer is output from
the display speakers. You can also use the
headphone jack of the display.
- If you plan to use a commercially available cable,
obtain one with no resistance.
Connection of headphones
(commercially available)
Headphones (commercially available) can be
connected.
Notes:
- When the headphones are connected, no sound
can be heard from the monitor speakers.
Audio input
terminal
Audio cable
Audio output terminal
Headphone
terminal
Headphones
Connecting the monitor and turning the monitor on and off
