Sharp MD-E9000H - Before Recording to a MiniDisc

– 31 –
MD-E9000H

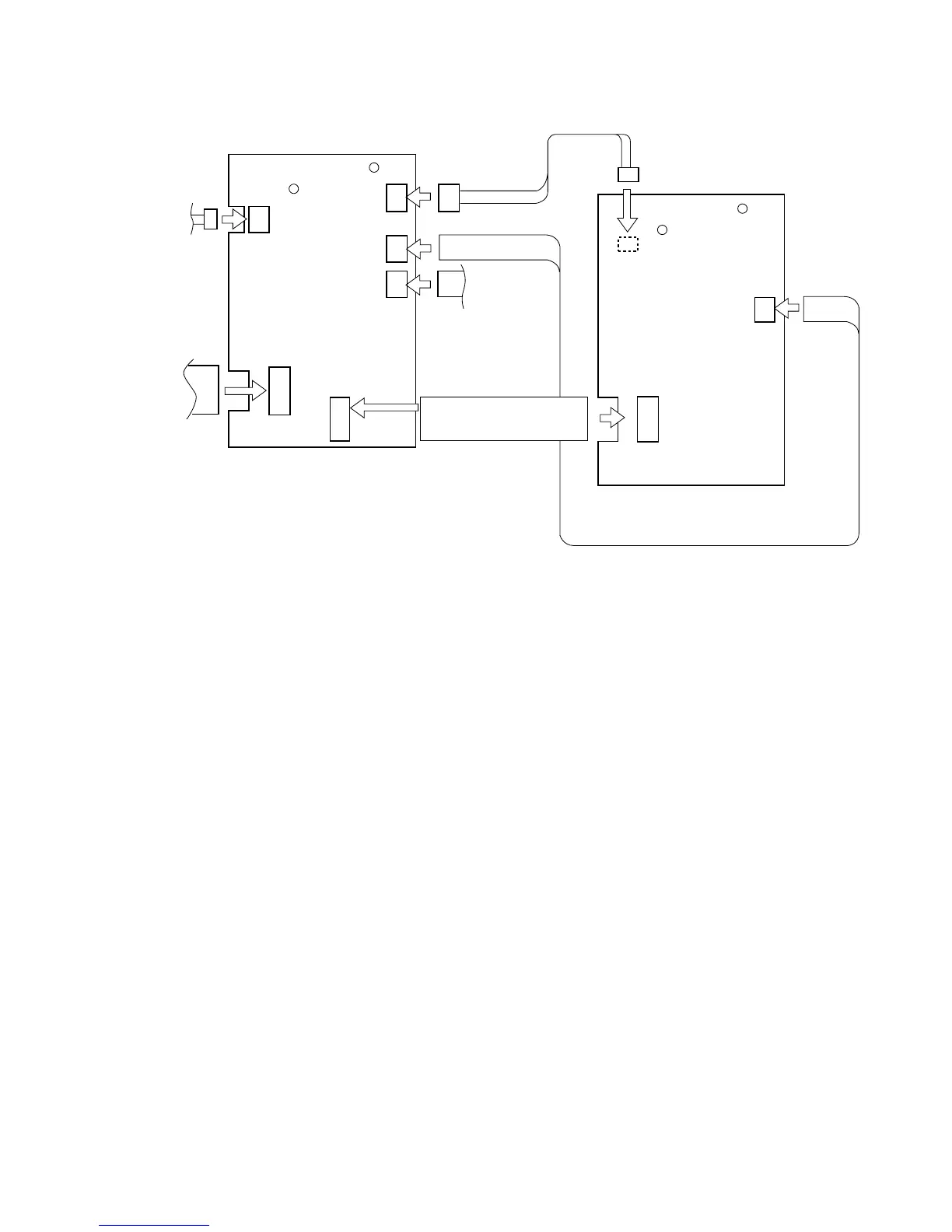

Figure 31
From
Magnetic Head
From Mechanism
Switch PWB
2 Pin Extension Connector
QCNWK0059AFZZ
MD Main PWB
28 Pin Extension Flat Cable
QCNWK0108AFZZ
9 Pin Extension Flat Cable QCNWK0132AFZZ
Extension PWB for service
(RUNTK0581AFZZ)
Fit the extension PWB for service to
the mechanism
From
Optical Pickup Unit
