Connecting external units
Headphones
Notes:
Before plugging in or unplugging the headphones, make sure the volume level is reduced.
Be sure your headphones have a 1/8" (3.5 mm) diameter plug and are between 16 ohms and 50 ohms impedance.
The recommended impedance is 32 ohms.
When headphones are connected, the speakers are disabled automatically.
Adjust the VOLUME control for the desired headphone volume.

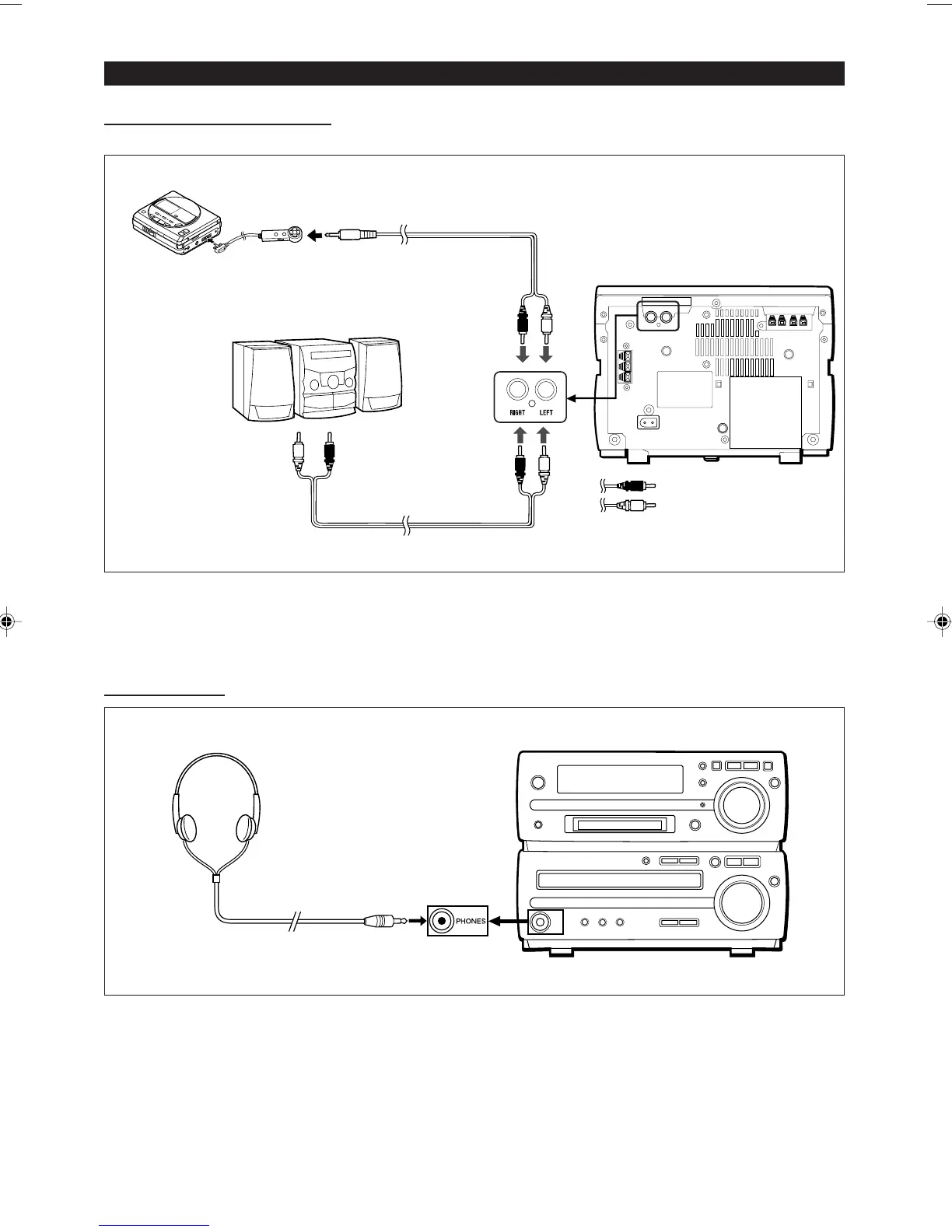

USING EXTERNAL UNITS
Before connecting external units, set this unit to the stand-by mode and turn off the power to the external units.
The other MD/CD player
Commercially available cord
with 1/8" (3.5 mm) stereo
mini-plug and RCA plugs
To the output /
headphone jack
RIGHT
LEFT
To the analog
output jacks
LEFT
RIGHT
RIGHT
LEFT
Red plug To RIGHT
White plug To LEFT
Commercially available RCA cord
