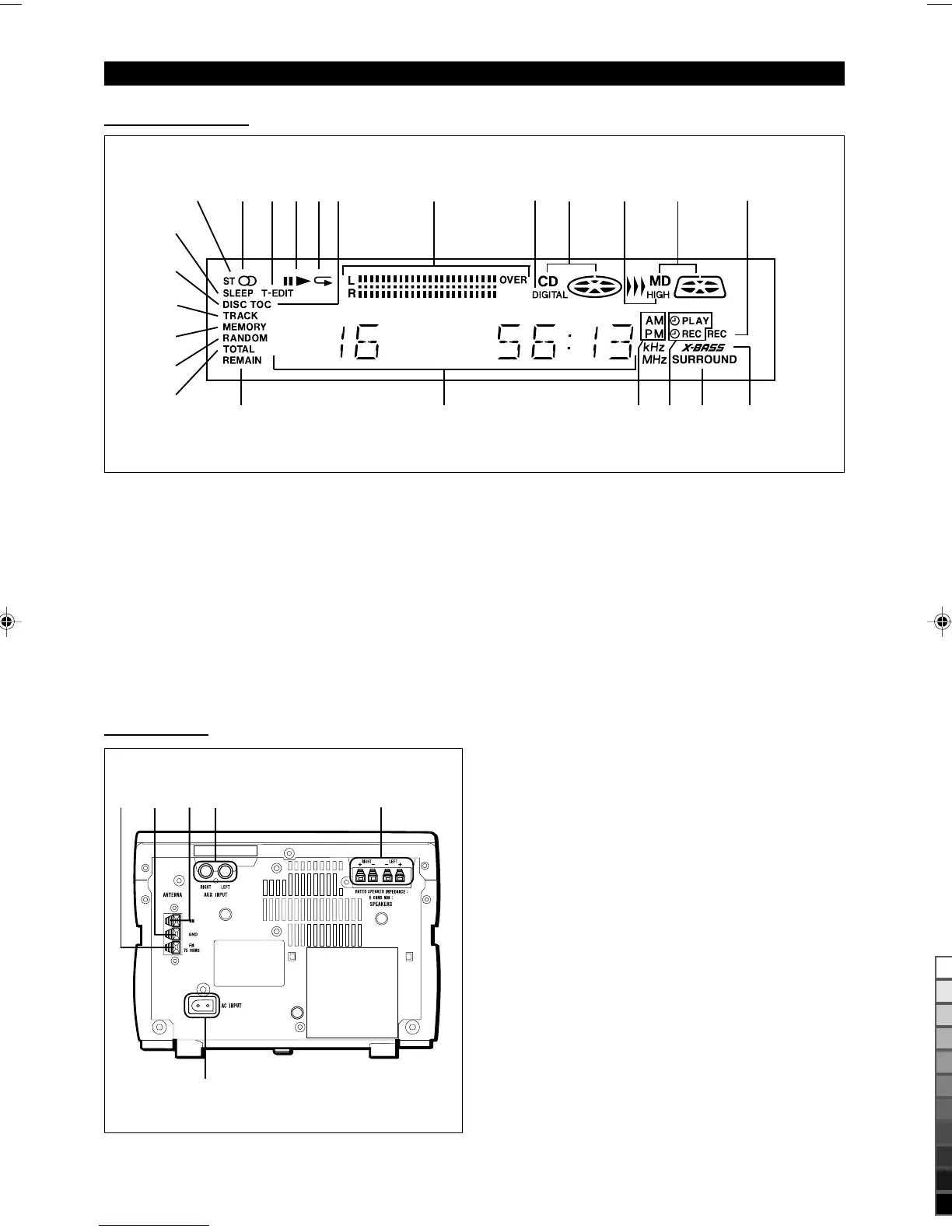

1. FM Stereo Indicator
2. FM Stereo Mode Indicator
3. Track Edit Indicator
4. Play/Pause Indicator
5. Repeat Indicator
6. TOC Indicator
7. Level Meters
8. Digital Recording Indicator
9. CD Indicator
10. High Speed Edit Indicator
(Continued)
1. FM 75 Ohms Antenna Terminal
2. Antenna Ground Terminal
3. AM Loop Antenna Terminal
4. Auxiliary Input Jacks
5. Speaker Terminals
6. AC Power Input Jack
5
1
2
6
■ Display window
■ Rear panel
11. MD Indicator
12. Record Indicator
13. Sleep Indicator
14. Disc Indicator
15. Track Indicator
16. Memory Indicator
17. Random Play Indicator
18. Total Time Indicator
19. Remaining Time Indicator
20. Character Information Display
21. AM/PM Indicator
22. Timer Record/Timer Play Indica-
tor
23. Surround Indicator
24. Extra Bass Indicator
2 3 4
5
6 7 9 10
11112
13
14
15
16
17
18
19 20 21 22 23 24
3 4
8
