41
HH
HH
H Internal care
I In order to ensure proper operation of the CD player, preventative
maintenance (cleaning of the Laser Pick-up lens) should be performed
periodically in order to keep the lens dust-free. Lens cleaners are
commercially available. Contact your local CD software dealer for
options.
HH
HH

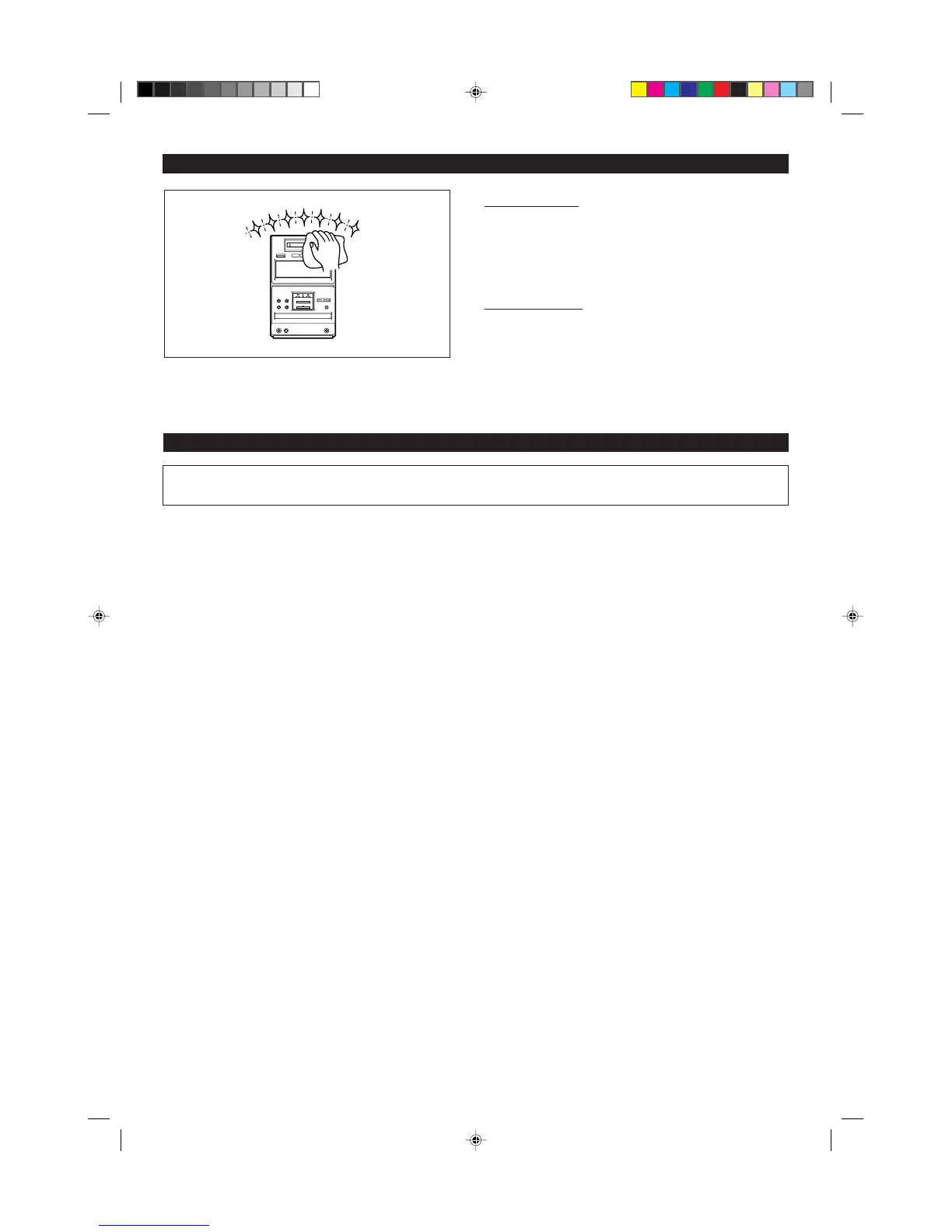

H External care
I Periodically wipe the cabinet with a soft cloth and dilute soap solution,
then wipe with a dry cloth.
I Do not use chemically treated cleaning cloths or other chemicals.
MAINTENANCE
SPECIFICATIONS
As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement
without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these
values in individual units.
(General)
Power source: AC 120 V, 60 Hz
Power consumption: 80 W
Output power: 10 watts minimum RMS per
channel into 6 ohms from 60 Hz to
20 kHz,10 % total harmonic distortion
Input terminals: Auxilialy (Analog); 2.0 V (30 kohms)
Auxilialy (Digital-1)
Auxilialy (Digital-2)
Phono; 2.5 mV (47 kohm)
Output terminals: Headphones; 16- 50 ohms
(recommended; 32 ohms)
Speakers; 6 ohms
Line out (Analog); 2.0 V (47 kohm)
Dimensions: Width; 5-15/16" (150 mm)
Height; 9-1/2" (241 mm)
Depth; 12-1/8" (307 mm)
Weight: 9.5 lbs. (4.3 kg)
HH
HH
H Speaker section
Type: 2-way 4-3/4" (120 mm) woofer and 2" (50
mm) tweeter type
Maximum input power: 25 W
Rated input power: 12.5 W
Impedance: 6 ohms
Dimensions: Width; 5-3/4" (146 mm)
Height; 9-1/2" (241 mm)
Depth; 9-1/8" (229 mm)
Weight: 4.9 lbs. (2.2 kg)/each
HH
HH
H Main unit section
(MiniDisc recorder section)
Type: MiniDisc recorder
Signal readout: Non-contact, 3-beam semi-conductor
laser pick-up
Audio channel: Stereo; 2 channel
Monaural; 1 channel (long-time
recording mode)
Frequency response: 20 - 20,000 Hz
Rotational speed: 400 - 900 rpm CLV, Approx.
Quantization: 16-bit linear
Filter: 8-times oversampling digital filter
Error correction: ACIRC (Advanced Cross Interleave
Reed-Solomon Code)
Coding: ATRAC (Adaptive TRansformd
Acoustic Coding)
Recording method: Magnetic modulation overwrite method
D/A converter: 1-bit
Sampling frequency: 44.1 kHz
Wow and flutter: Unmeasurable
(less than 0.001% W. peak)
Signal/noise ratio: 95 dB (1 kHz)
Dynamic range: 90 dB (1 kHz)
T.H.D at 1kHz: 0.1%
(Compact disc player)
Type: Compact disc player
Signal readout: Non-contact, 3-beam semi-conductor
laser pickup
Rotational speed: 200 - 500 rpm CLV, Approx.
Error correction: CIRC (Cross Interleave Reed-
Solomon Code)
Quantization: 16-bit linear
D/A converter: 1-bit
Filter: 4-times oversampling digital filter
Frequency response: 20 - 20,000 Hz
Signal/noise ratio: 95 dB (1 kHz)
Dynamic range: 90 dB (1 kHz)
Wow and flutter: Unmeasurable
(less than 0.001% W. peak)
(Tuner section)
Frequency range: FM; 87.5 - 108 MHz
AM; 530 - 1,720 kHz
Sensitivity: FM; 8.0 µV (75 ohms, unbalanced)
AM; 650 µV/m
