Sharp MD-X5H - Page 96

MD-X5H/CP-X5H
– 96 –
A
B
C
D
E
F
G
H
1
23456

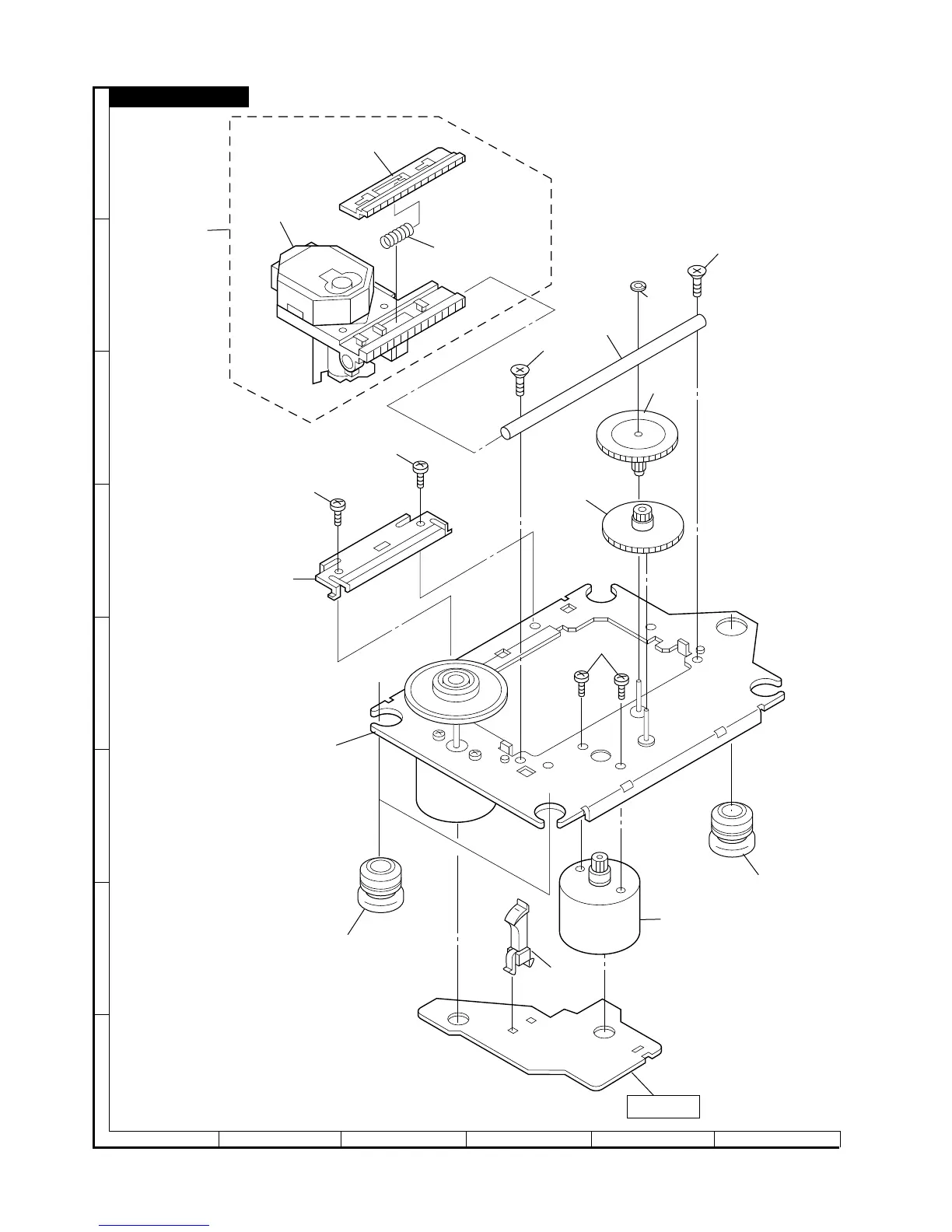

Figure 9 CD MECHANISM EXPLODED VIEW
– 9 –
MD-X5H
306-1
701
304
701
302
301
702
702
303
M701
703
305x2
SW702
M702
305
PWB-E
306-2
306-3
306
704
