MX-3610N ADJUSTMENTS AND SETTINGS 4 – 29

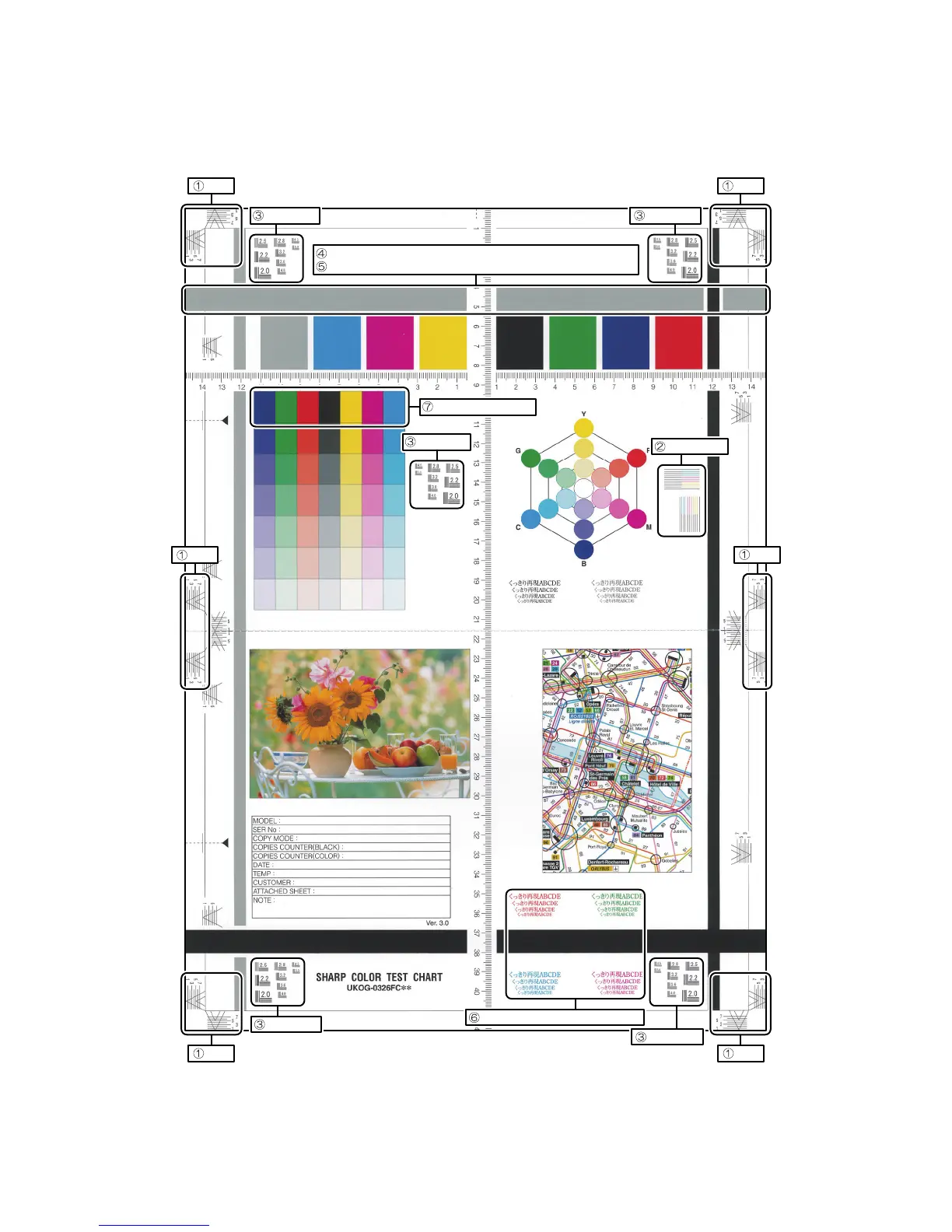

a. Color copy check items (Check to confirm the following:)
1) There are 12 void areas.
2) Registrations (one point for the main scanning, and one point
for the sub scanning) are not shifted.
3) The resolution of 5.0 (5 points) can be seen.
4) The color difference in gray balance between the F and the R
sides is not so great.
5) There are no white and black streaks.
6) Color texts are clearly reproduced.
7) The background density is not so light.
Color difference in gray balance between the F and the R sides
No white and black streaks
Background density
Color text reproduction capability
Void Void
Void
VoidVoid
Void
Registration
Resolution
Resolution
Resolution
Resolution
Resolution
