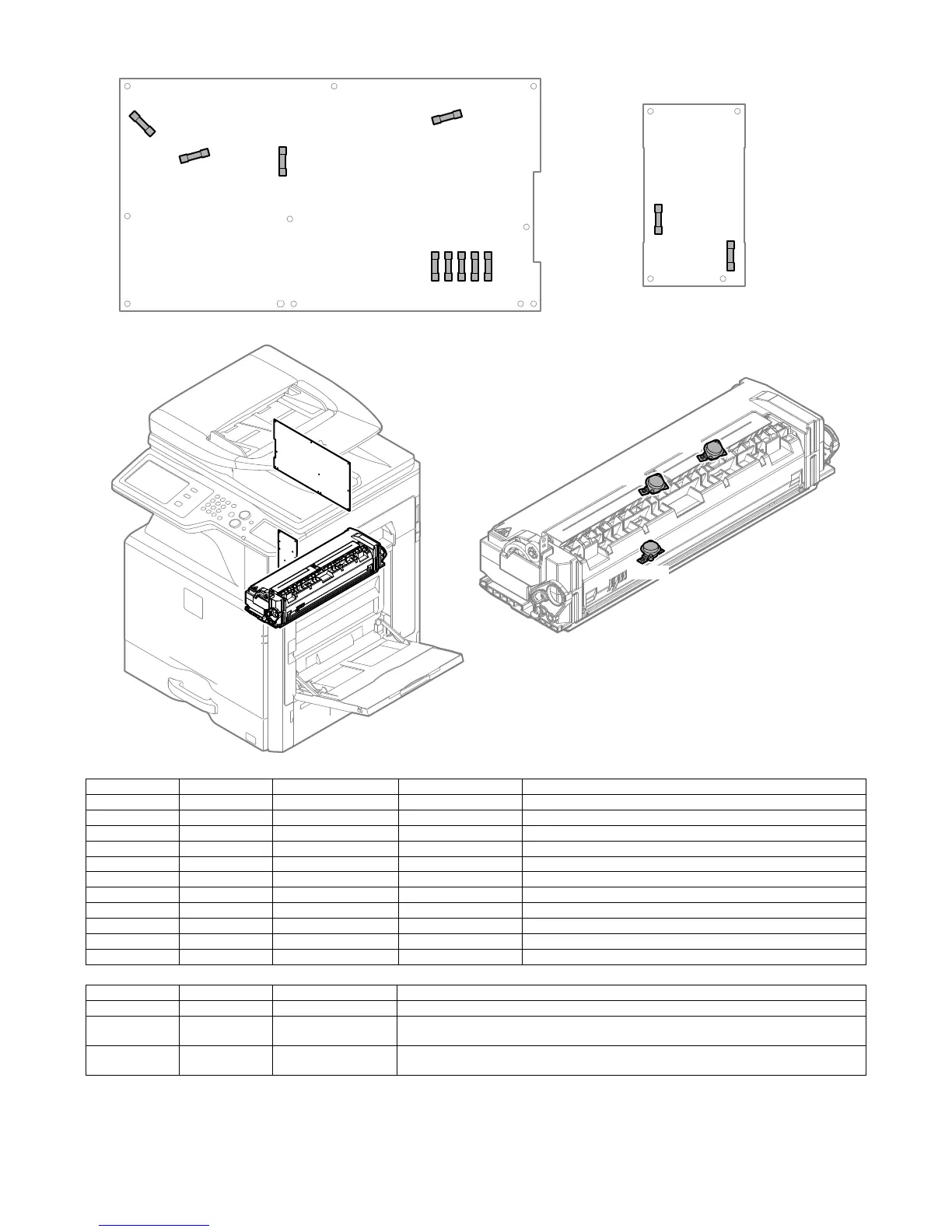

MX-3610N EXTERNAL VIEW AND INTERNAL STRUCTURE 3 – 41
(2) 23cpm/26cpm/31cpm machine
Signal name Name 100v series 200v series Section
F1 Fuse 20A 250V T10AH 250V AC Power PWB
F2 Fuse - T10AH 250V AC Power PWB
F001 Fuse T12AH 250V T6.3AH 250V DC Power PWB
F003 Fuse T3.15AH 250V T3.15AH 250V DC Power PWB
F101 Fuse F10AH 250V (F101) F5AH 250V (F101) DC Power PWB
F401 Fuse F3.15AH 250V (F401) F2AH 250V (F401) DC Power PWB
F201 Fuse 6.3A 6.3A DC Power PWB
F202 Fuse 6.3A 6.3A DC Power PWB
F203 Fuse 6.3A 6.3A DC Power PWB
F204 Fuse 6.3A 6.3A DC Power PWB
F205 Fuse 4.0A 4.0A DC Power PWB
Signal name Name Type Function/Operation
TS LM Thermostat LM Mechanical thermostat Shuts down the heater lamp (HL_LM) circuit when the fusing section is overheated.
TS UM Thermostat UM Mechanical thermostat Shuts down the heater lamp (HL_UM) circuit when the fusing section is overheated.
(Center section)
TS US Thermostat US Mechanical thermostat Shuts down the heater lamp (HL_US) circuit when the fusing section is overheated.
(Edge section)
TS LM
TS_UM
F1
F001
F003
F101
F401
F201
F202
F203
F204
F205
F2
TS_US
