MX-2300G/N, MX-2700G/N 1 – 7
E. Developing (each color) installation

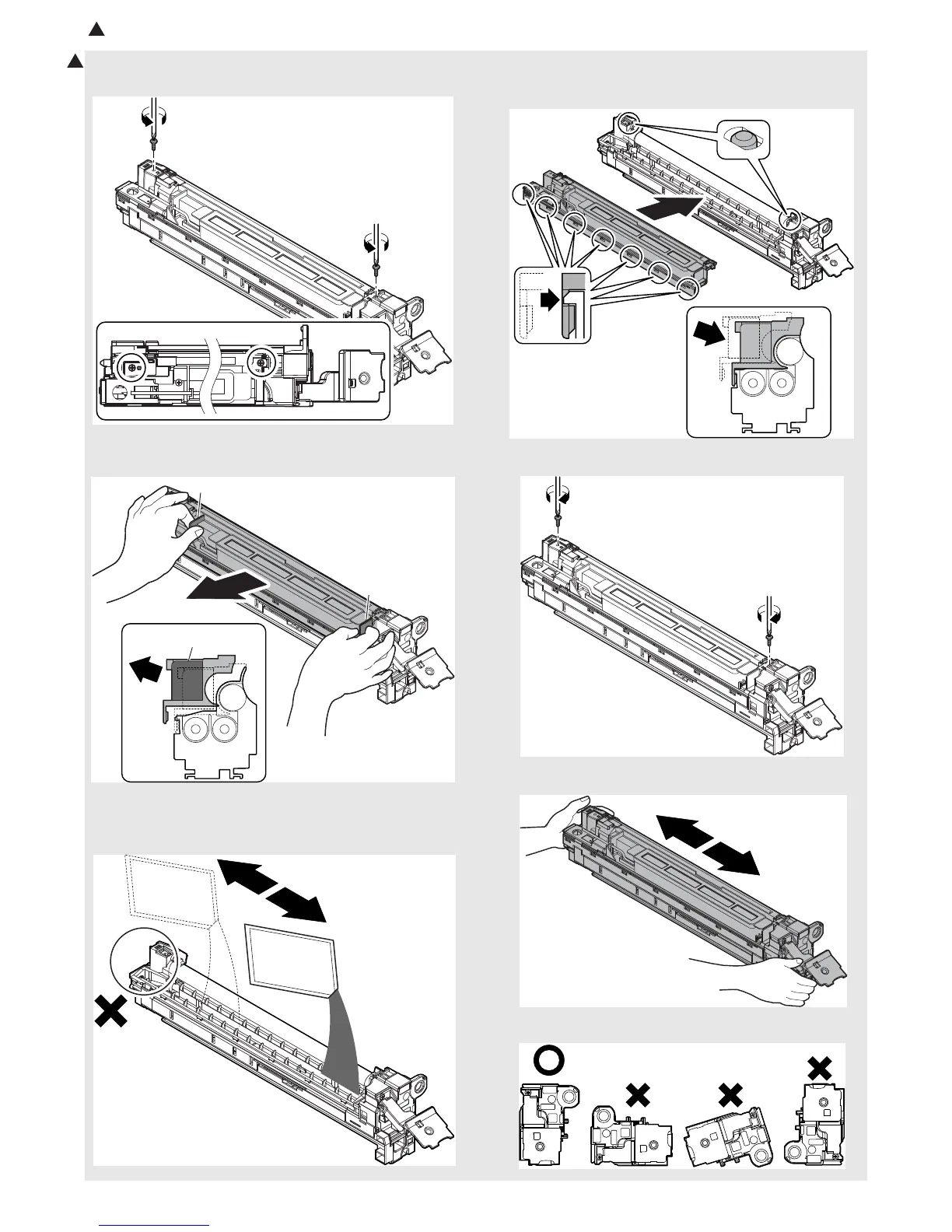

1) Remove two fixing screws of the DV cover.
2) Hold the sections A, and remove the DV cover in the arrow
direction (B).
3) Supply developer in the developer unit.
* When replacing developer, use an extreme care not to drop
developer on the drive section (marked with {).
4) Install the DV cover in the arrow direction (A).
* When installing the DV cover, be sure to engage the pawl
with the boss.
5) Fix the DV cover with the two screws.
6) Shake the developer unit horizontally a few times.
* When supplying developer, do not tilt the developing unit.
