MX-3610N MX-PN11A/B/C/D (PUNCH MODULE) 23 – 2

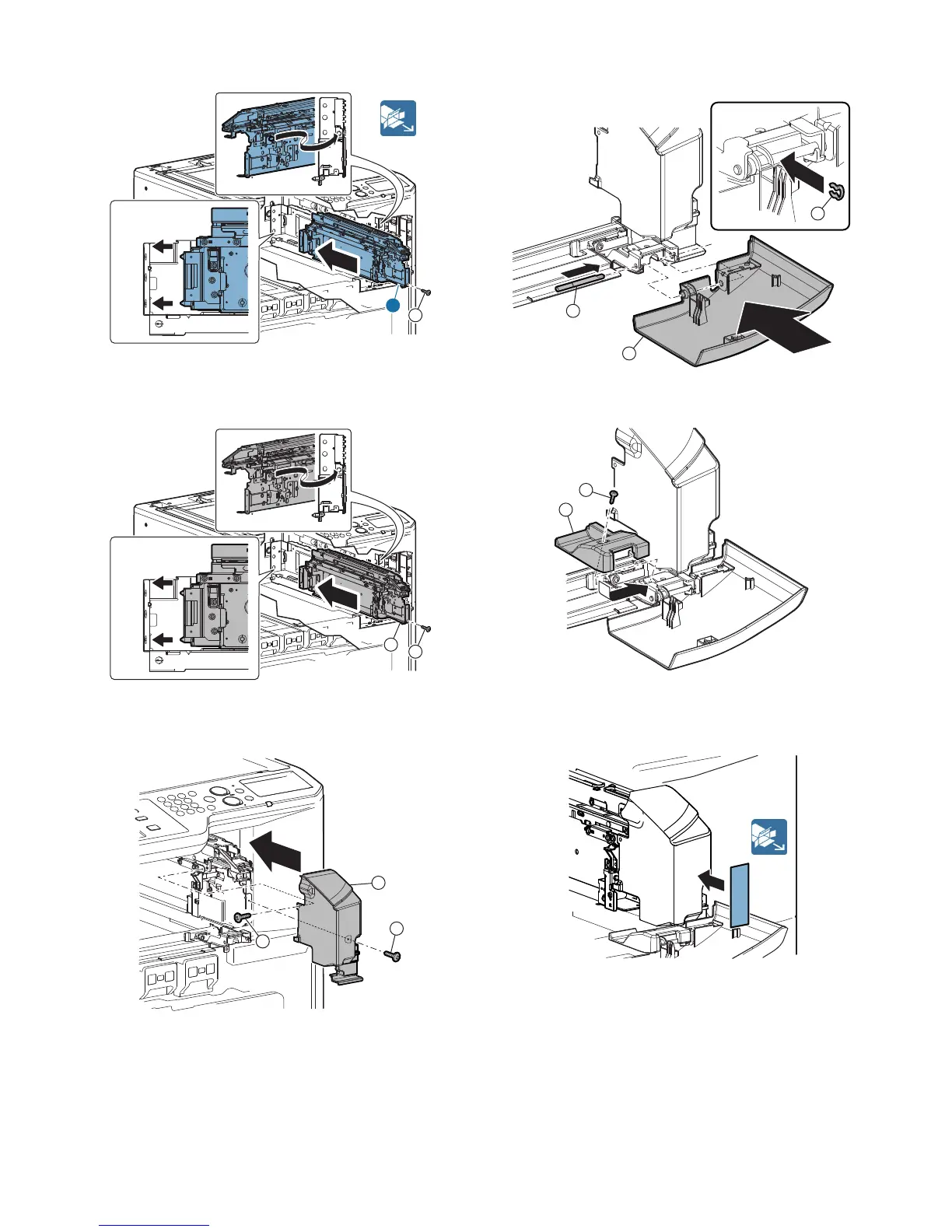

4) Remove the path guide.
B. Punch unit attachment
1) Attach the punch unit.
C. Open/close cover attachment
1) Attach the punch F cover.
2) Insert the fulcrum shaft into the open/close cover, and attach
the cover and fix it with the clip.
3) Attach the fulcrum cover.
D. Label attachment
1) Attach the punch dust label.
