MX-3114N MX-2314N/2614N/3114N (MAIN UNIT) 2 – 5

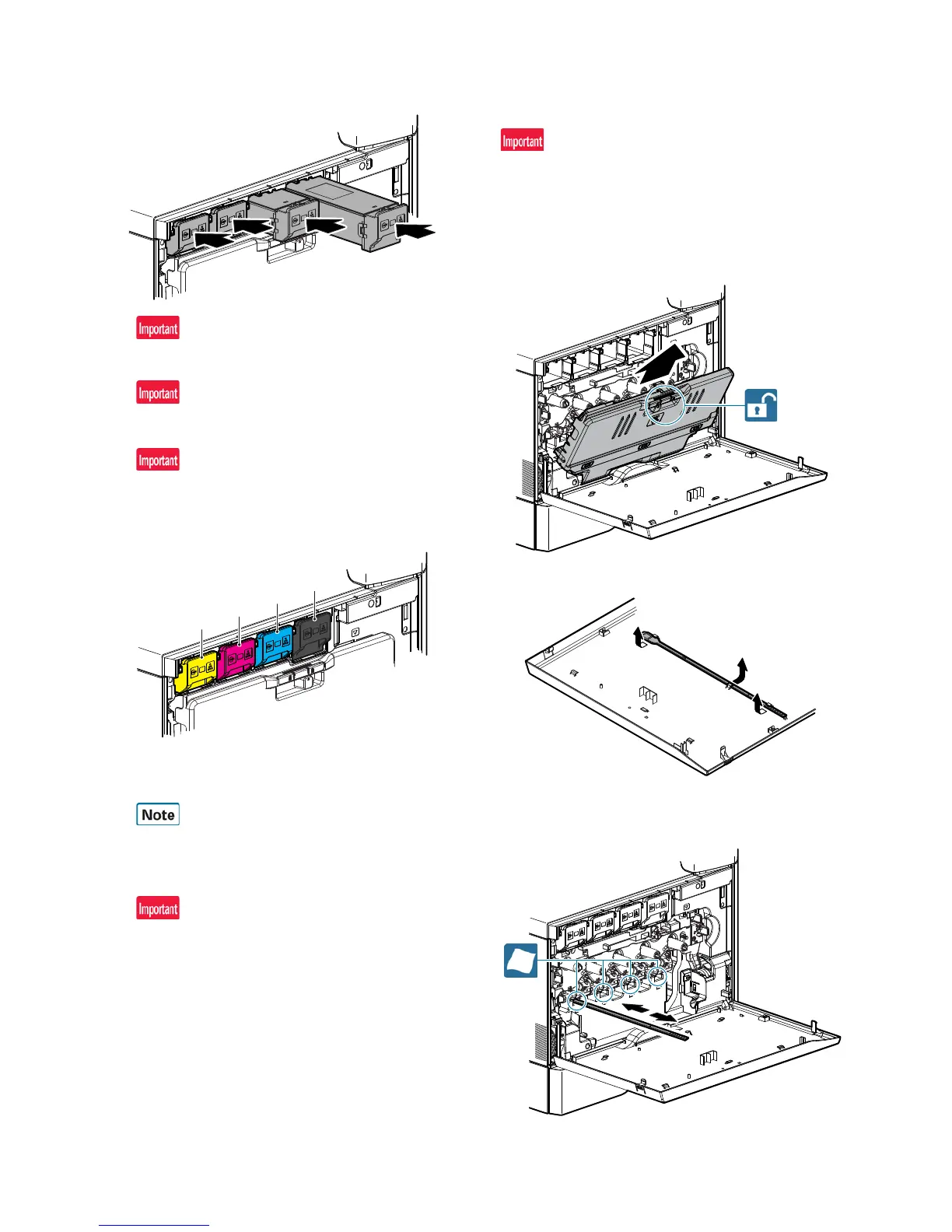

9) Open the front cabinet, and insert each toner cartridge.
Be sure to install the color cartridges to their proper positions.
Avoid installation to a different color position.
Do not forcibly insert the toner cartridge.
Push it in until the cartridge is securely locked in place.
Developing units removed, be sure to remove the toner car-
tridges as well to prevent toner clogging.
Color toner cartridge positions
10) Close the front cabinet.
11) Confirm that "Toner replenishment in progress" is displayed,
and wait until the display disappears. (It takes 30 sec - 6 min.)
This procedure is for checking the toner supply operation from
the toner cartridge to the DV unit. The operation time differs
depending on the toner quantity in the toner cartridge, uneven
distribution of toner, and the inside state of the toner cartridge.
Do not perform operations which interrupt the above operation,
such as opening the front cover, entering the SIM mode, and
turning OFF/ON the power. If this precaution is ignored, an
error of F2-40 - 43 or F2-64 - 67 may occur or an overtoner
may be caused.
C. Cleaning
(1) Cleaning of LSU's dust-proof glass and PTC wire
Dust from the transfer belt or shutter or some other adjacent part
may fall onto the LSU during transport or installation. Be sure to
clean the dust-proof glass and PTC wire before checking the image
quality.
1) Open the front cabinet. Slide the lock to release, and remove
the waste toner box.
2) Detach the LSU cleaning bar from the front cover.
3) Turn the felt side of the cleaning bar downward and insert it.
Slide it back and forth a few times to clean the LSU dust-proof
glass.
Y
M
C
BK
To Next Page
