HDD Replacement Procedure:
Where possible, backup the HDD storage data before replacement:-
• Use SIM56-02 or device cloning/storage backup function to backup the Address book, Image
Send registration data and User authentication data to USB memory.
• When using the MFP Web Page, back up the Document Filing data, Font, Macro and JOB LOG
data to PC
When there is FAX/Internet Fax received data present, use SIM66-62 to backup the image data to USB
memory (PDF file), and then provide the PDF data to the user. (This data cannot be restored to the
machine).
Confirm that the UI icon which indicates “HDD trouble” is displayed. Use SIM62-20 to confirm the HDD
status to determine which HDD is in trouble:-
If HDD1 is in trouble, replace the HDD of the mirroring kit.
If HDD2 is in trouble, replace the HDD of the machine.
Power off the MFP device (Primary power switch).
WHEN REPLACING THE MIRRORING KIT HDD ONLY:-
1. Using a new HDD unit from Service Spare Parts, replace the Mirroring Kit HDD.
2. Power on / Boot the MFP device:- Rebuilding is automatically executed.
3. Check that E7-03 trouble does not occur, and the UI icon which indicates rebuilding of the
mirroring kit is displayed. Use SIM 62-20 to confirm the status of the replaced HDD is displayed
as REBUILDING.
Note: It may take approx. three hours to complete HDD “rebuilding”.
4. Once REBUILDING is complete, use SIM62-20 to confirm that the HDD status is displayed as
HDD1/HDD2=OK/OK.
WHEN REPLACING BOTH THE MIRRORING KIT AND MACHINE HDDs TOGETHER:-
1. Using a new HDD units from Service Spare Parts, replace both HDD's (and RAID PWB if required).

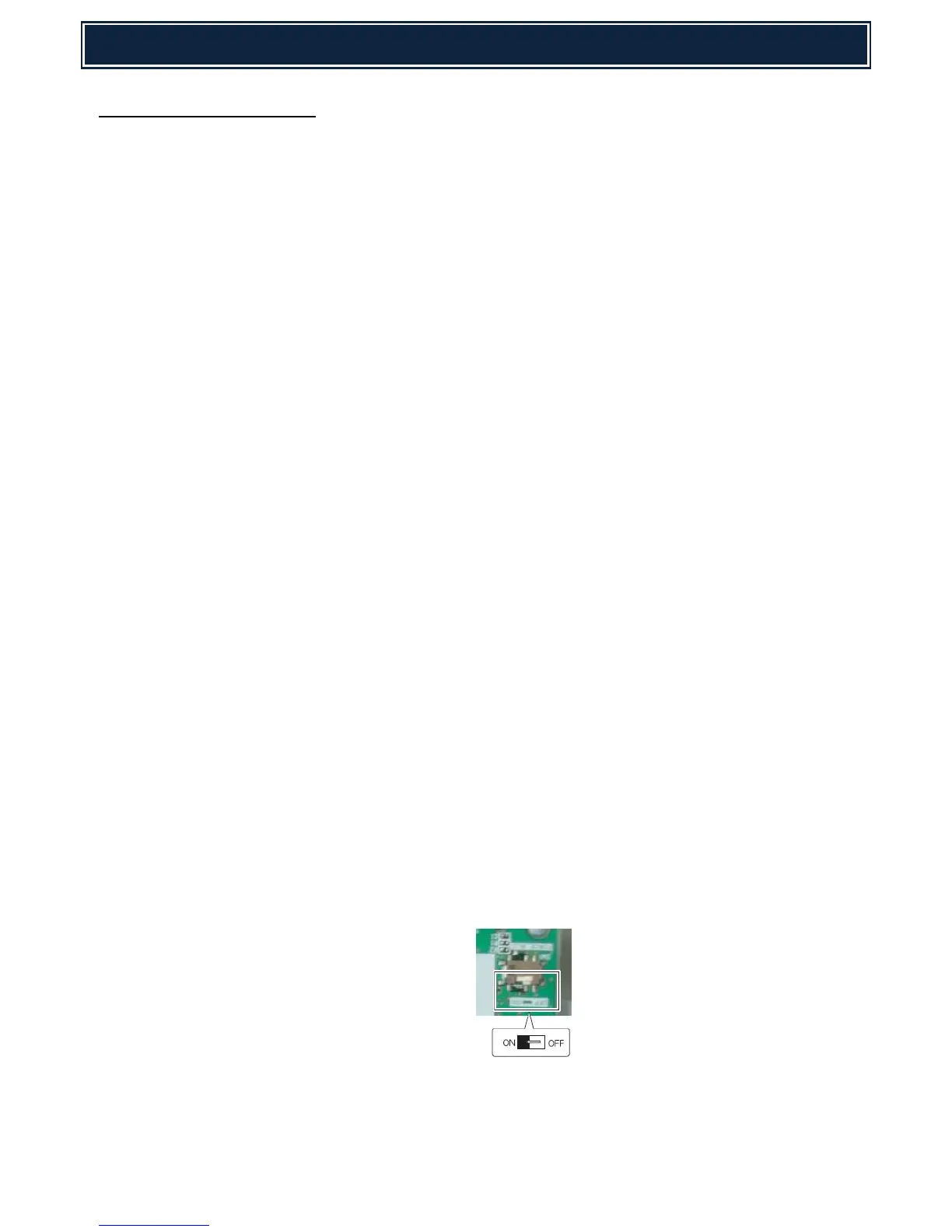

2. Set DIPSW1 of the mirroring kit to ON:-
3. Power on the MFP device - Forcible rebuilding is executed.
