MX-C250 OPERATIONAL DESCRIPTIONS 11 – 9
5. Paper registration section

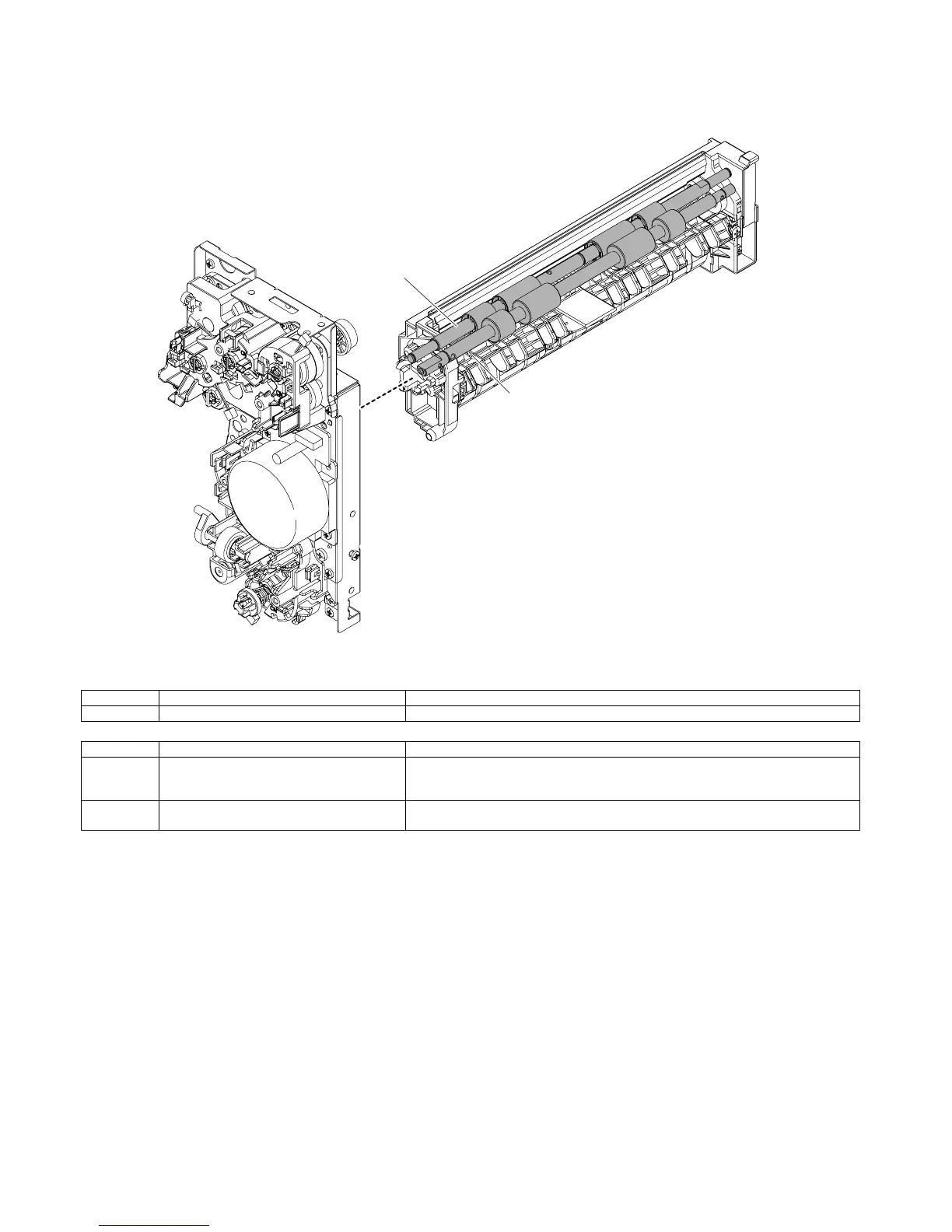

A. Electrical and mechanism relation diagram
B. Operational description
The resist roller set controls the synchronization of the Image on
the Transfer Belt to the Timing of the paper making its way to the
Primary and Secondary Transfer section. Start stop movement is
controlled by the PS Clutch (RRC). Drive for the Registration roller
comes from FUM, the Fusing Motor.
Signal name Name Function and operation
FUM Fusing drive motor Drives the fusing unit, the paper feed section and Registration sections.
No. Name Function and operation
1 Resist roller (Drive) The Resist Roller (Drive) synchronizes the paper timing to the image on the Transfer Belt. A
buckle is created to eliminate any skew in the paper. The paper is then driven to the Transfer
section where the image is correctly timed for transfer onto the paper.
2 Resist roller (Idle) The Resist Roller (Idle) puts pressure on the back side of the paper allowing the Drive roller
to move the paper to the transfer section after proper buckle timing has occurred.
