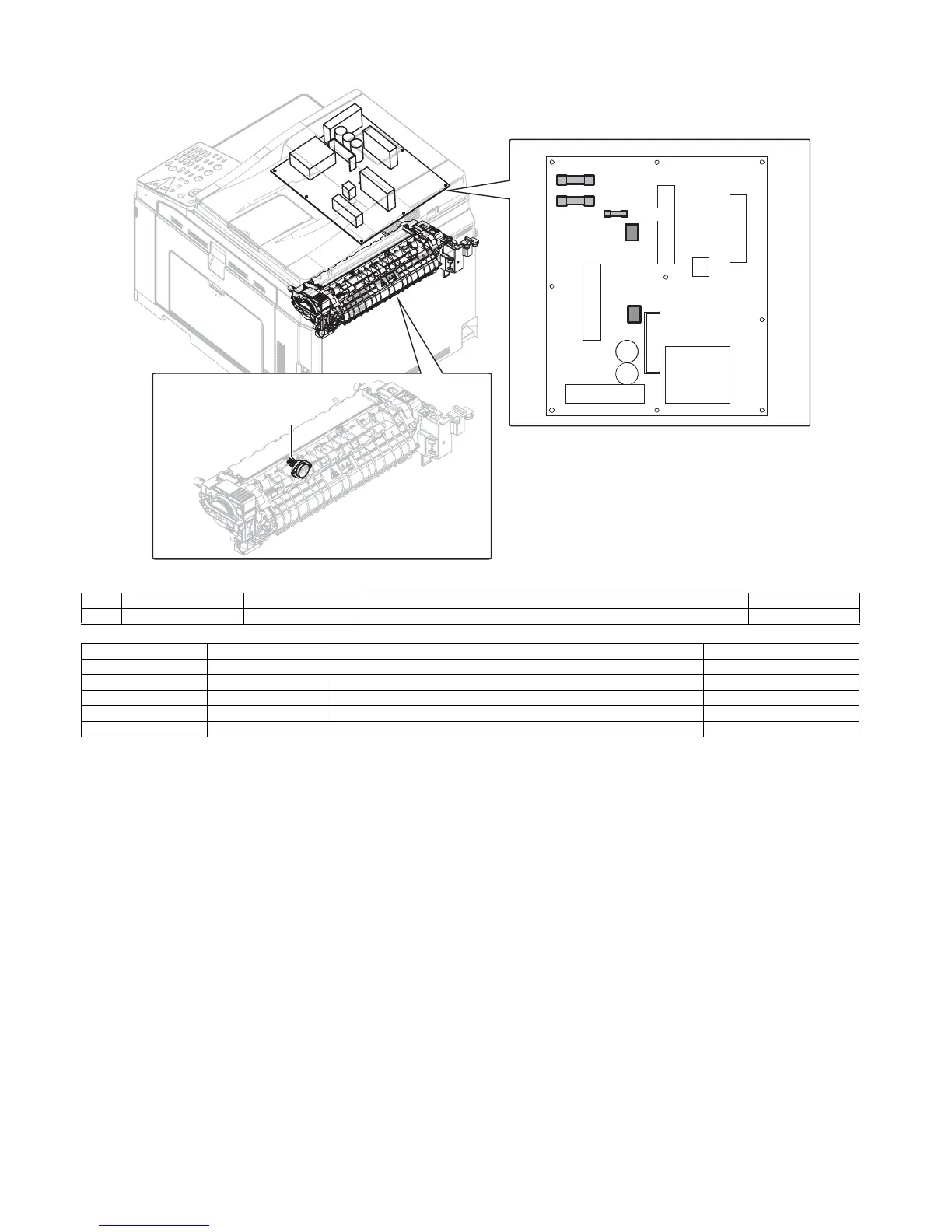

MX-C250 EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 16
O.Fuses/Thermostats
No Signal name Name Specifications Section
1 TS UM Thermostat Fusing roller overheat protection Fusing unit
Signal name Name Specifications Section
F7001 Fuse AC250V 20A AC/DC power PWB
F7002 Fuse AC250V 20A AC/DC power PWB
F7003 Fuse AC250V T4AH AC/DC power PWB
F7004 Fuse AC250V T2AL AC/DC power PWB
F7201 Fuse DC450V 3.15A AC/DC power PWB
