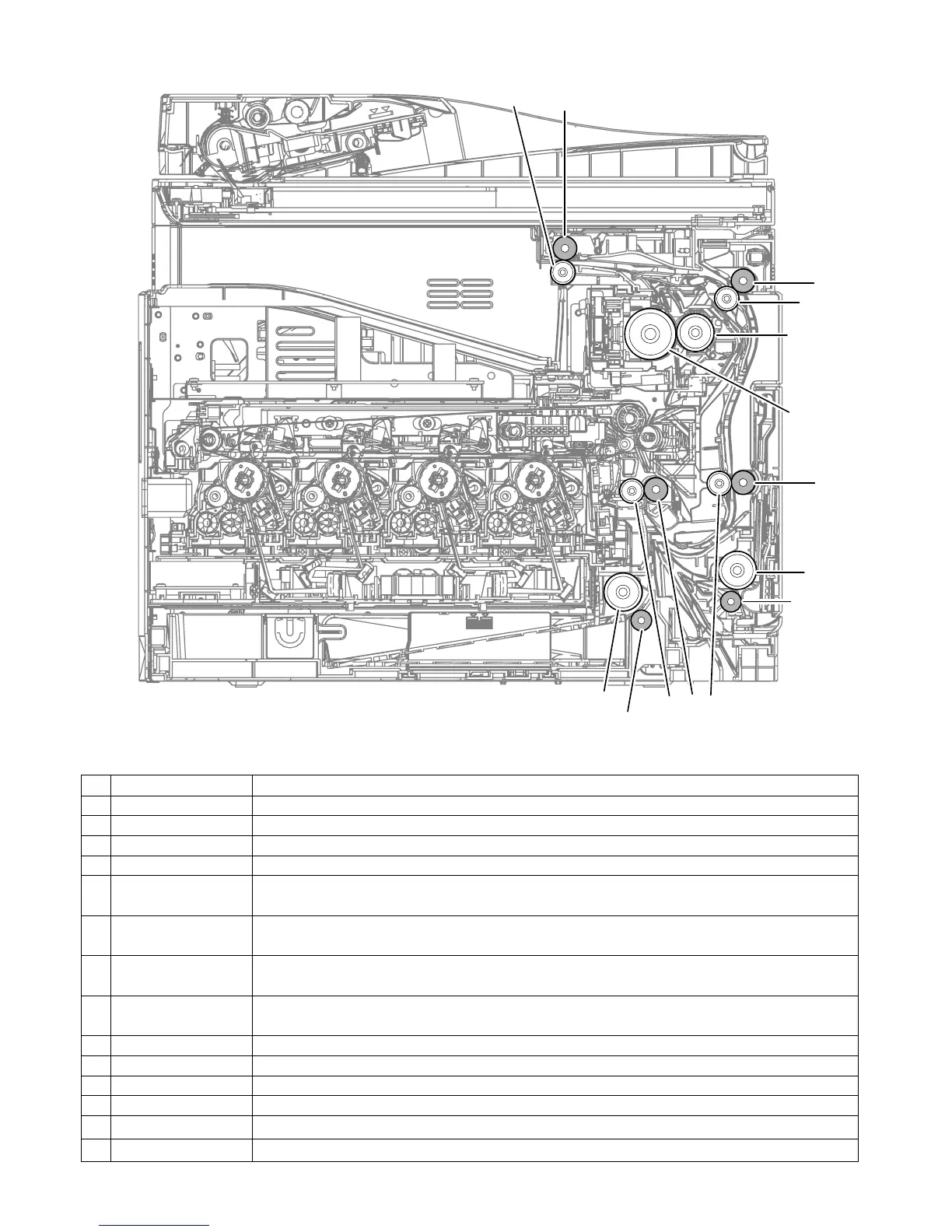

MX-C250 EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 12
K.Rollers
No. Name Function/Operation
1 Paper exit roller (Drive) Drives the roller in the paper exit section.
2 Paper exit roller (Idle) Apply a pressure to paper and the paper exit roller to provide the transport power of the Paper pressure (idle) roller to paper.
3 Transport roller 4 (Drive) Transports paper from the transport roller to the transport roller 5.
4 Transport roller 4 (Idle) Apply a pressure to paper and the transport roller to provide the transport power of the Paper pressure (idle) roller to paper.
5 Transport roller 5 (Drive) Lower duplex drive transport roller which transports paper to the registration rollers.
6 Transport roller 5 (Idle)
Transports paper to the Pressure (idle) Transport Roller. Paper is buckled between the Pressure (idle) Transport Roller and this
roller to correct the paper skew and the relation between images and paper.
7 Registration roller (Drive)
Registration Drive Roller that controls the transport timing of paper and adjusts the relative position between images on the
Transfer Belt and the registered paper.
8 Registration roller (Idle)
Transports paper to the transfer section. / Controls the transport timing of paper and adjusts relative relations between the image
and paper.
9 Paper Feed Roller Feeds paper from the cassette to the Registration rollers.
10 Fuser heat roller Applies heat through the roller to the toner on the paper to fuse the toner into the paper.
11 Fusing pressure roller Flexible silicone-rubber pressure fusing roller.
12 Paper Feed Roller Feeds paper to the paper transport section.
13 Separation roller
Apply the pressure to the paper feed roller in reverse direction and prevents the paper
from feeding it in layered condition.
14
Separation roller (Paper feed
tray 1)
Apply the pressure to the paper feed roller in reverse direction and prevents the paper
from feeding it in layered condition.
