Sharp MX-C250E

MX-C250 OPERATIONAL DESCRIPTIONS 11 – 6
3.Scanner section

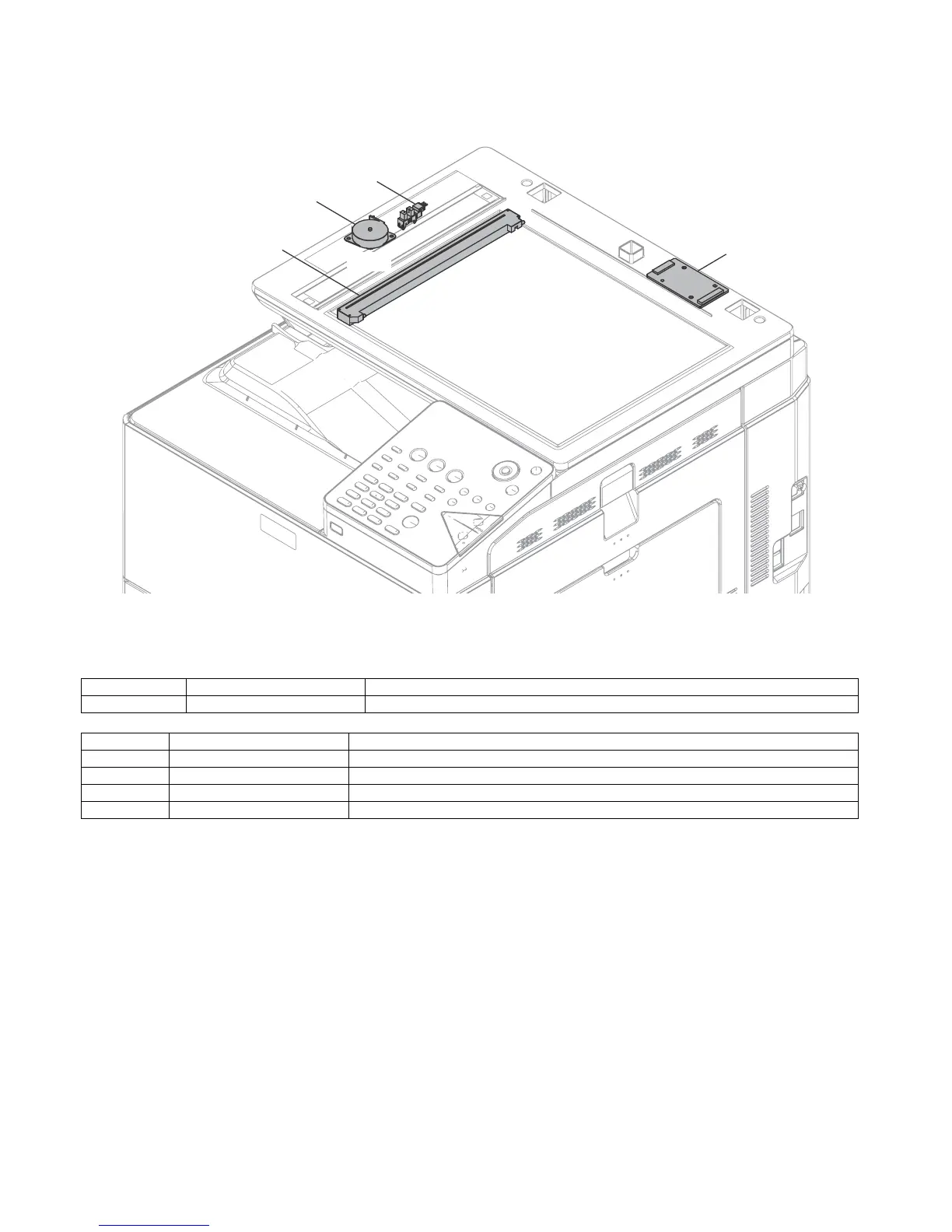

A. Electrical and mechanism relation diagram
Signal name Name Function/Operation
MIM Scanner motor Drives the carriage unit.
No. Name Function/Operation
1 Home position sensor Detects the home position of the CIS
2 Scanner motor Drives the carriage unit.
3 AFE PWB Transfers the analog signal to the digital signal.
4 CIS unit Scanner lamp and the light-receiving sensor
1
2
3
4
MIM
