Sharp MX-C402SC

B
A
B
A
Configuration A
These configurations require the
MX-MFX1. The MX-LC12 cannot
be used with the MX-LCX3N. The
MX-LCX3N is available only on the
MX-M904. These items cannot be
combined with items from paper
feed configuration B.
Configuration B
This configuration requires the
MX-RB16 and MX-LC13. An MX-RB17
is required to connect two MX-LC13
Large Capacity Trays. The MX-MF11
can also be added to the first MX-LC13,
but cannot be used alone. These items
cannot be combined with items from
paper feed configuration A.
1. Base Unit
MX-MFX1*
100-sheet
Multi Bypass
Tray
and or
MX-LC13
Large Capacity Tray
(2 Drawers; Ledger)
MX-RB16
LCT Mounting
Kit
3. MX-LC13
MX-MF11
500-sheet
Multi Bypass Tray
(not required)
MX-LC12
Large Capacity
Cassette
(Letter)
MX-LCX3N
Large Capacity
Cassette
(Ledger)
*Available only on MX-M904.
2. MX-LC12
5. MX-MFX1 6. MX-MF11
4. MX-LCX3N
and and and
and
MX-LC13
Large Capacity Tray
(2 Drawers; Ledger)
(not required)
MX-RB17
LCT Connecting
Kit (required for
2nd MX-LC13)
MX-M904/M1054/M1204
MX-SL10 (optional)
Status Indicator can be
added to any configuration.

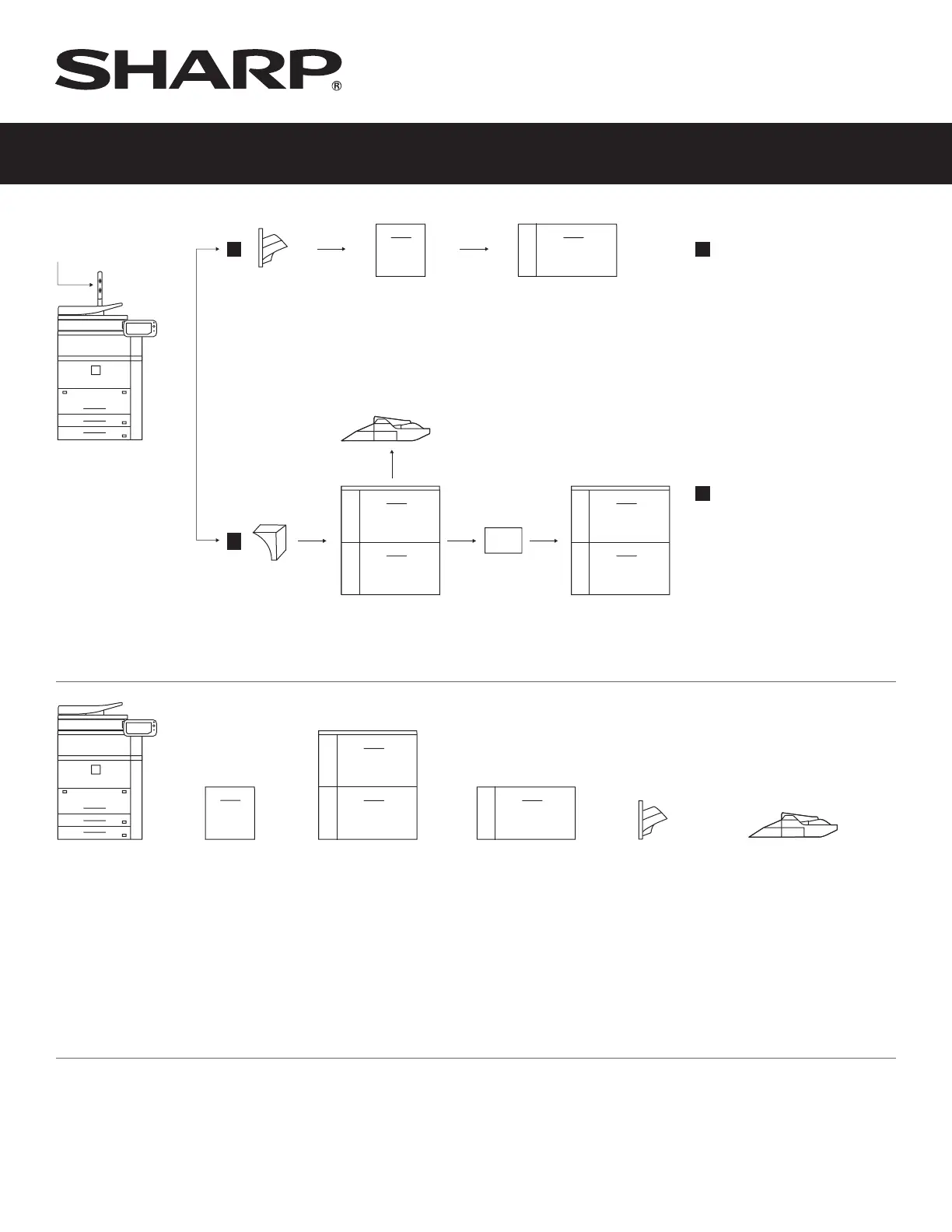

mX-m904/m1054/m1204 configuration chart
Step 1: chooSe paper feed configuration
Supported Paper Weights
1. Base Unit
UpperDrawer(tandem):16lb.Bondto28lb.Bond
Middle/LowerDrawer:16lb.Bondto100lb.Bristol
2. MX-LC12
16lb.Bondto100lb.Bristol
3. MX-LC13
Upper/LowerDrawer:15lb.Bondto110lb.Cover
4. MX-LCX3N
16lb.Bondto100lb.Bristol
5. MX-MFX1
15lb.Bondto110lb.Cover
6. MX-MF11
15lb.Bondto100lb.Bristol
Supplies & Accessories
•TonerCartridge MX-900NT
•Developer MX-900NV
•Drum MX-850NR
•WasteTonerBottle MX-850HB
•120V/15APowerFilter(forMX-FN21, AR-D5133NT
MX-FN22,MX-LC13,andMX-ST10)
•208-240V/20APowerFilter MX-E524ZNT
(forMX-M904/M1054/M1204)
* The MX-MFX1 is required
if no other paper feed options
are selected.
