Configuration B: High Capacity Stacking
This configuration requires the MX-RB18 and
one MX-ST10. An additional MX-ST10 can be added,
but is not required. Each MX-ST10 includes one
MX-CA10 Paper Cart. Additional paper carts can
be ordered for convenience. The MX-SL10 Status
Indicator can be added to any configuration.
A
Configuration A: 50-sheet Staple Finishing
This configuration requires the MX-M904 and the
MX-FN24 or MX-FN25. The MX-FN24 cannot be used
with the MX-FN25. The MX-PNX4B can be added, but
cannot be used alone. These items cannot be combined
with items from other finishing configurations.
C
Configuration C: Basic 100-sheet Staple Finishing
This configuration requires the MX-RB18 and the MX-FN21 or MX-FN22.
The MX-FN21 cannot be used with the MX-FN22. The MX-BM50 requires
the MX-FN21 and MX-PCB50. The MX-FD50 must be connected to the
MX-TM50. The MX-SL10 Status Indicator can be added to any configuration.
MX-TM10
Trimming Unit
MX-PN13B
3-Hole
Punch Unit
MX-FN25
Saddle Stitch
Finisher 2K
(50-sheet staple)
MX-FN24
Finisher 3K
(50-sheet staple)
or
MX-PNX4B
3-Hole
Punch Unit
MX-ST10
High Capacity
Stacker
(not required)
and
and
MX-CF11
2-Tray
Inserter Unit
Plockmatic Production Booklet Maker System
MX-M904/M1054/M1204
MX-SL10
Status Indicator
(optional)

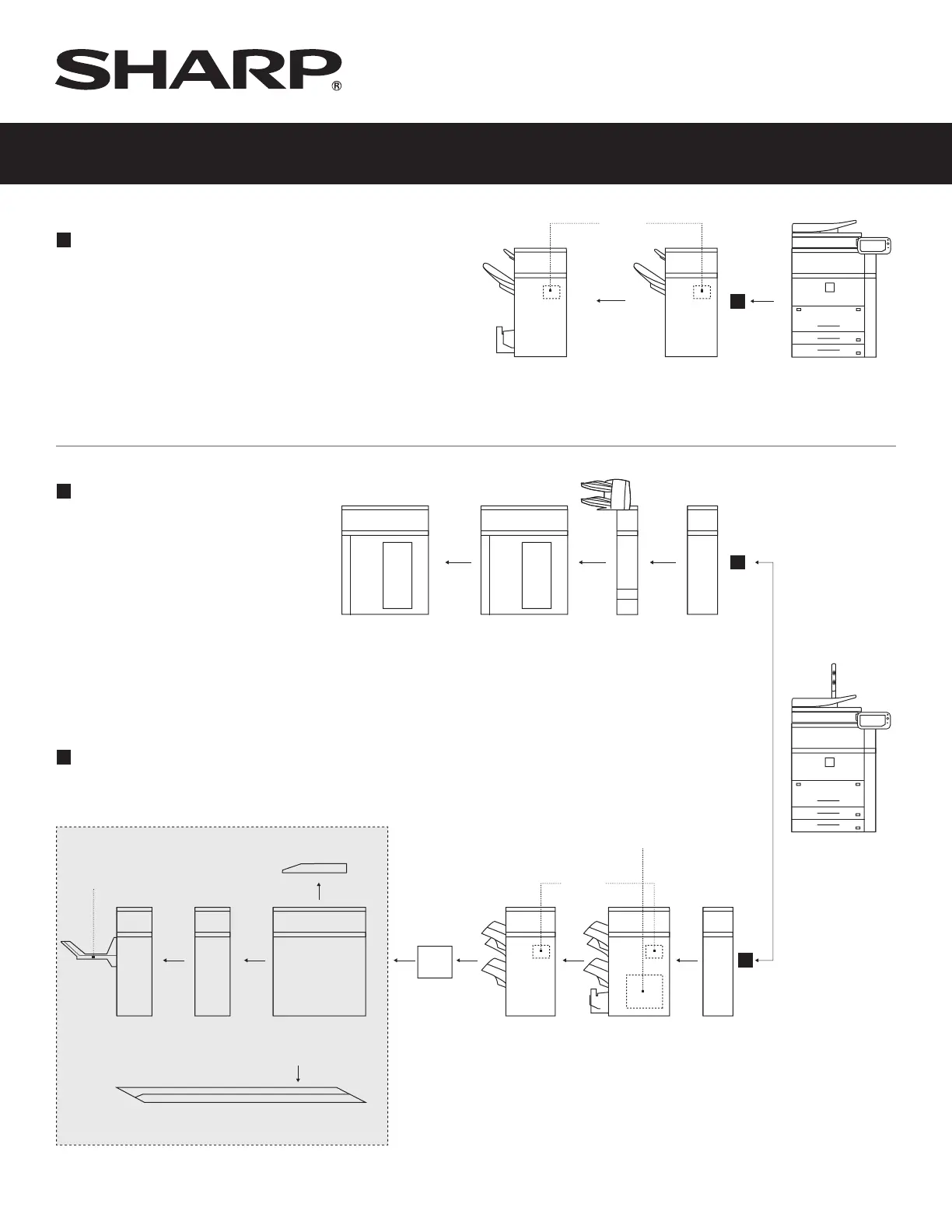

Step 2: chooSe finiShing configuration
mX-m904/m1054/m1204 configuration chart
