AR-SM5 13 - 1
[13]AR-SM5 256Mb EXPANSION MEMORY
1. Unpacking
<Parts included>

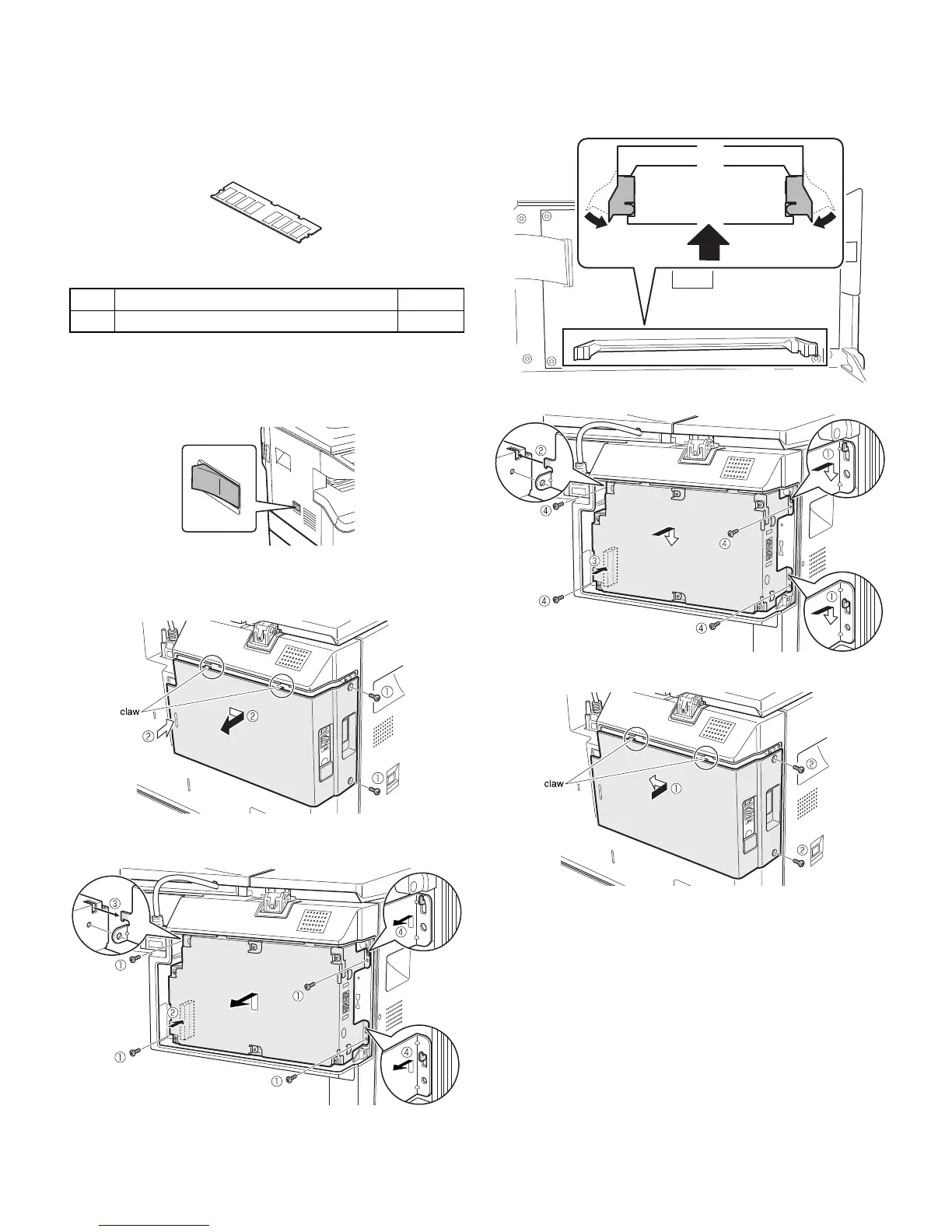

2. Installation
A. Turn off the power switches of the main unit.
B. Remove two screws.
Push the 2 part to disengage the pawl, slide the rear cabinet and
remove it.
C. If the FAX unit is installed, remove four screws to remove the FAX
unit.
D. Insert the memory to the empty socket of the IMC2 PWB.
E. Install the FAX unit, and secure it with four screws.
F. Install the rear cabinet, and secure it with two screws.
No. Packed part names Quantity
1 256Mb expansion memory 1
1
