Sharp MX-M182D User Manual

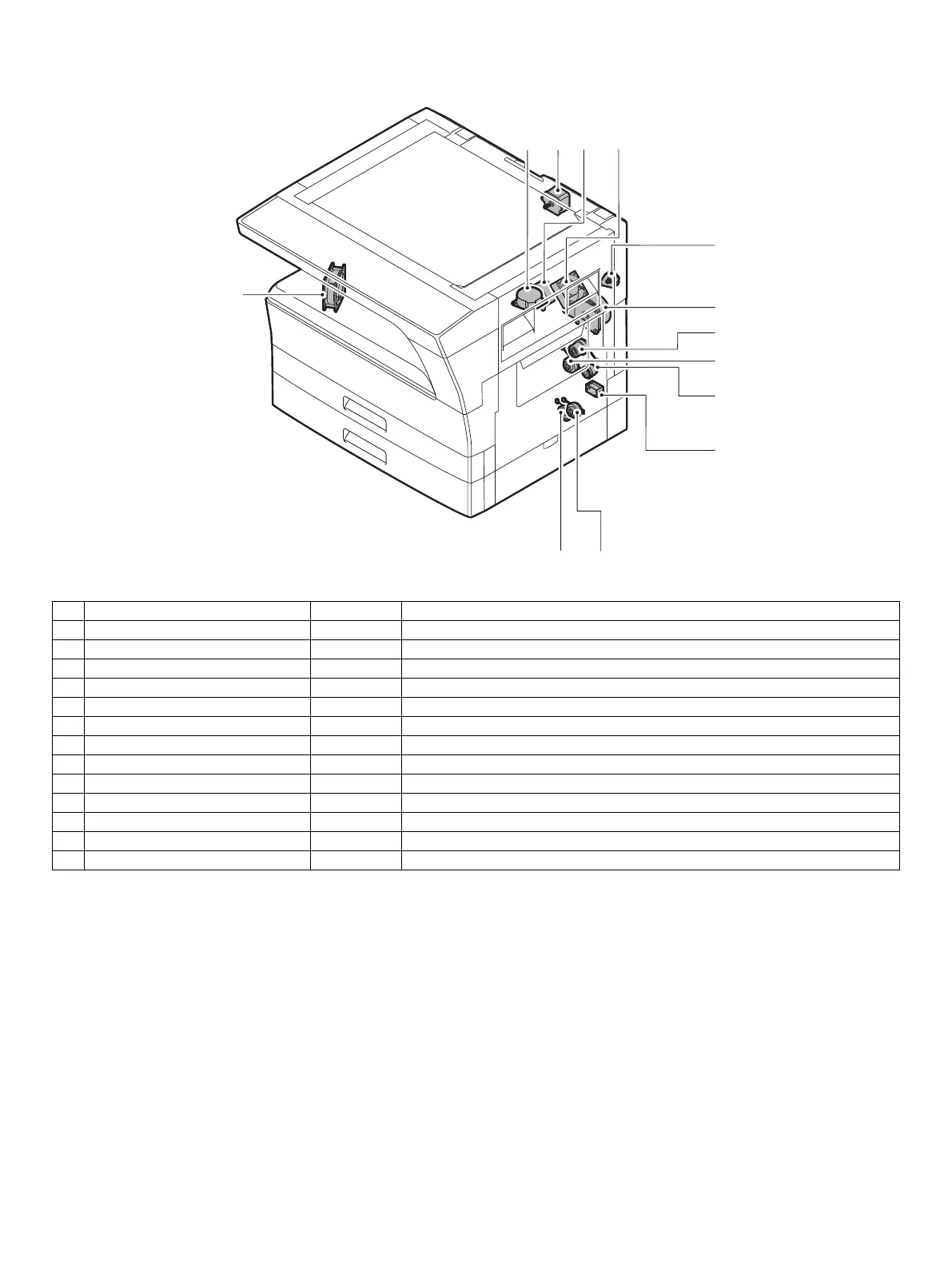

MX-M182 EXTERNAL VIEWS AND INTERNAL STRUCTURES 5-4
4. Motor, solenoid, clutch
No. Name Code Function operation
1 Mirror motor MRM Drives the optical mirror base (scanner unit).
2 Toner motor TM Toner supply
3 Duplex motor DPX Switchback operation and paper exit motor in duplex. (MX-M182D/M202D/M232D)
4 Main motor MM Drives the machine.
5 1st tray paper feed clutch CPSCL1 Drives the pick up roller
6 PS clutch RRC Drives the resist roller
7 Bypass tray paper transport clutch MPTC Drives the bypass tray paper transport roller.
8 Bypass tray paper feed solenoid MPFS Bypass tray paper feed solenoid
9 2nd tray transport clutch FSCL1 Drives the 2nd tray transport roller. (MX-M202D/M232D)
10 2nd tray paper feed clutch PSCL2 Drives the 2nd tray paper feed roller. (MX-M202D/M232D)
11 Exhaust fan motor PSFM Cools the inside of the machine.
12 Cooling fan motor VFM Cools the inside of the machine.
13 Shifter motor SFTM Drives the shifter motor.
11
910
6
5
7
8
4
3
113
2
12

Sharp MX-M182D Specifications

General

Functions	Print, Copy, Scan, Fax
Print Speed	18 ppm
Print Resolution	600 x 600 dpi
Copy Speed	18 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Max Paper Size	A4
USB Connectivity	Yes
Memory (Standard)	64 MB
Type	Monochrome Multifunction Printer
Duplex Printing	Yes
Connectivity	USB
Network Connectivity	Ethernet
