Sharp MX-M200D Service Manual

MX-M200D SIMULATIONS 7-35
46 29 Image contrast adjustment (600dpi)
Used to adjust the image contrast for each mode.
When this simulation is executed, the current set value of each mode is displayed in two digits. (Default: 50)
Select an adjustment item (mode) with the arrow keys and enter a desired value with numeric keys.
When [OK] key is pressed, the entered value is saved to the EEPROM and the machine shifts to the copy
execution window.
After completion of copying, the machine returns to the adjustment value input window.
When [START] key is pressed instead of [OK] key, the machine shifts to the copy execution window and
performs copying.
Default:
AE: 50
TEXT: 50
PHOTO1: 50
PHOTO2: 50
TEXT (TS): 50
AE (TS): 50
30 AE limit setting
Used to set the limit value in AE and AE (toner save) mode.
When this simulation is executed, the selection window of the adjustment items and the current set value
are displayed.
Select an item to be changed with [ ] key and [ ] key and enter a desired value with numeric keys. The
entered value is saved to the EEPROM.
The adjustment value is in the range of 0 - 31.
* Note: When SIM26 - 06 (Destination setting) and SIM46 - 19 (Auto exposure mode) are changed, this
setting returns to the default accordingly.
Default:
0
Main
code
Sub
code
Contents Remark

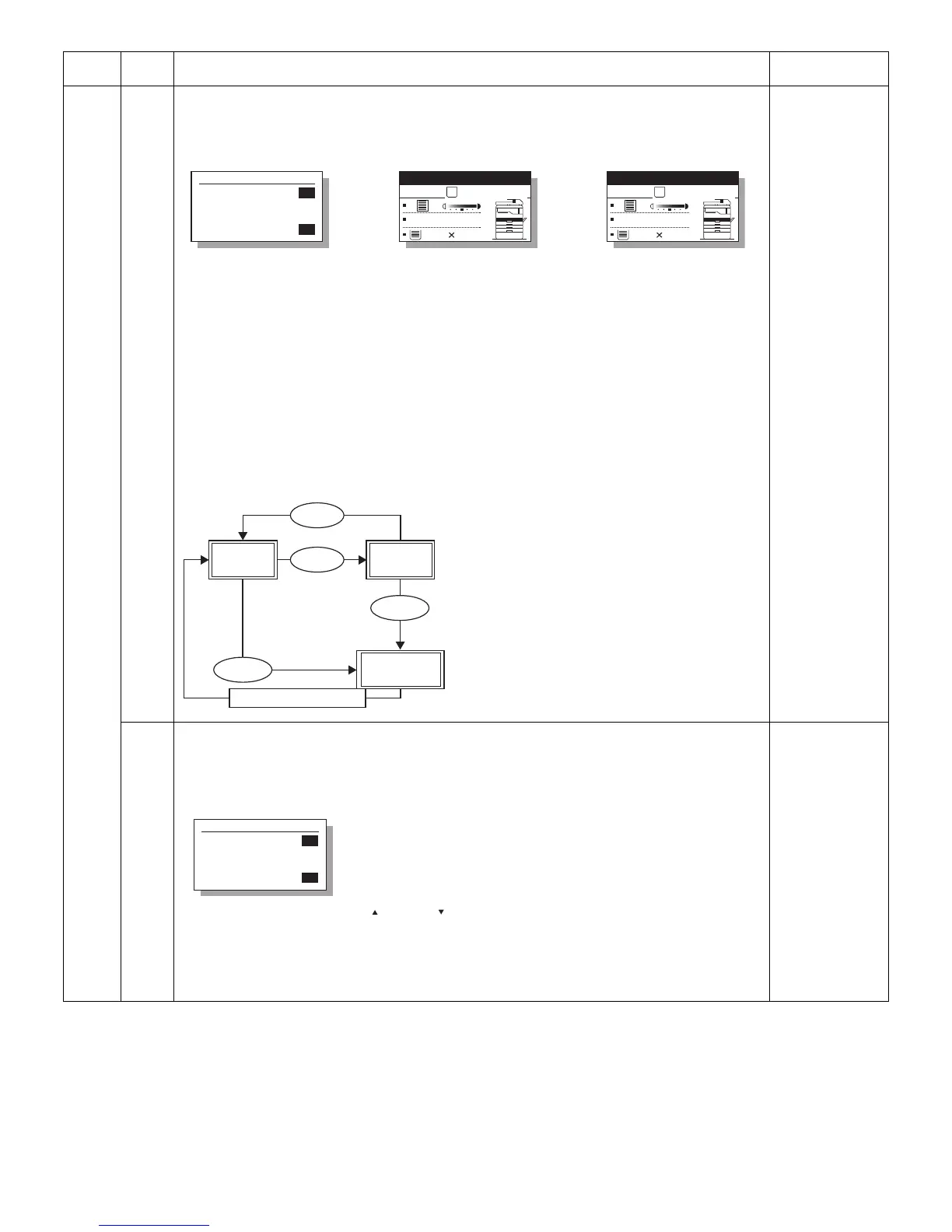

Sim46-29 GAMMA SET Ready to copy.
1:AE
2:TEXT
3:PHOTO 1
1/2 [ 1-99]
50
50
50
50
S
100%
8 1/2
11
(Adjustment item selection window) (Copy start window)
Copies in progress.
S
100%
8 1/2
11
(Copy execution window)
Display text Copy mode
1:AE AE mode (600dpi)
2:TEXT TEXT mode (600dpi)
3:PHOTO 1 PHOTO mode (Error diffusion)
4:PHOTO 2 PHOTO mode (Dither)
5:TEXT (TS) TONER SAVE mode (TEXT)(600dpi)
6:AE (TS) TONER SAVE mode (AE)(600dpi)
Adjustment
item selection
window
Copy start
window
Copy execution
window
[BACK] key
[START] key
[START] key
End of copy execution
[OK] key
Sim46-30 AE LIMIT
1:AE
2:AE(TS)
[ 0- 31]
0
0
0
(Adjustment item selection window)
Window display : Mode
1: AE : AE limit value
2: AE (TS) : AE (Toner save) limit value
