Sharp MX-M200D Service Manual

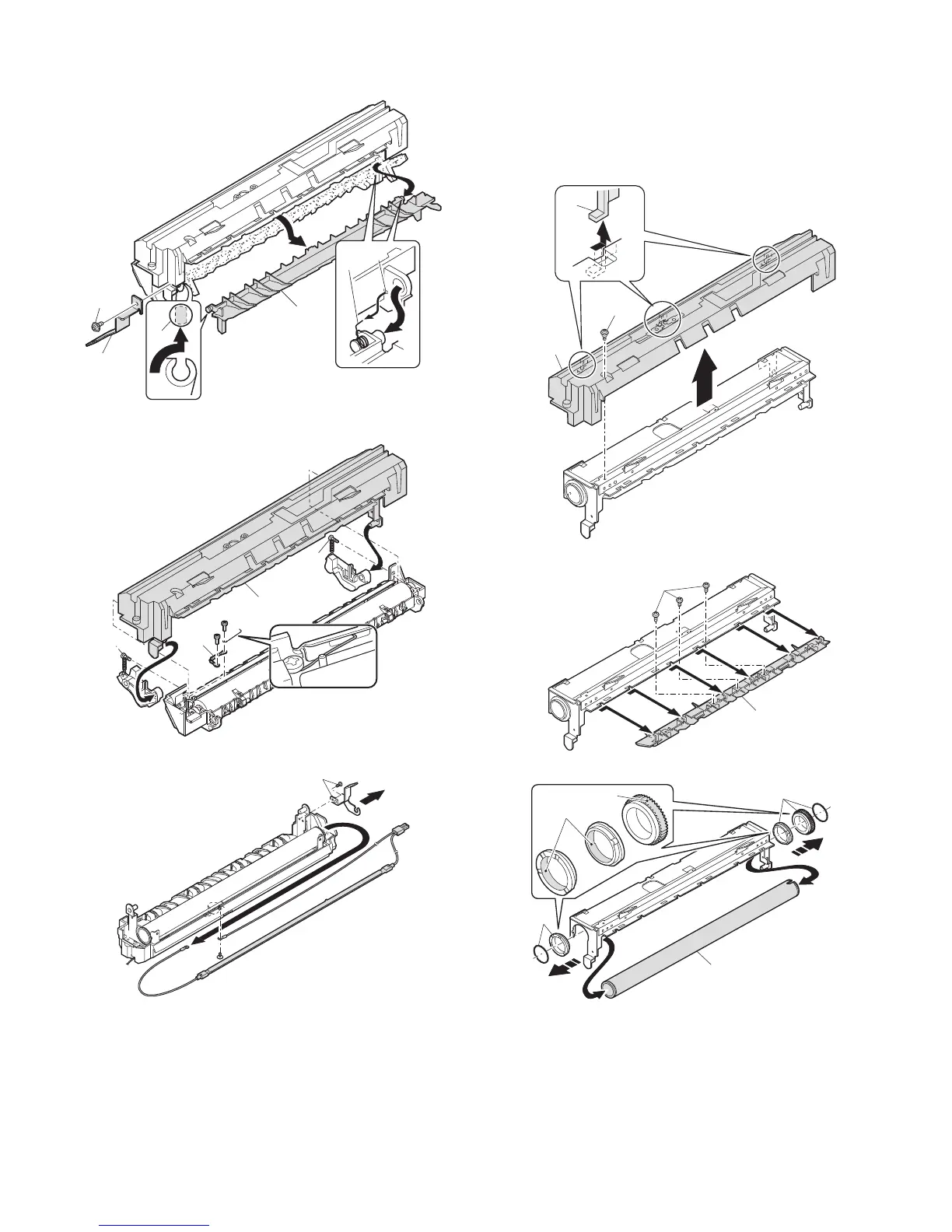

MX-M200D DISASSEMBLY AND ASSEMBLY 11-5
D.Heater lamp
Assembly: Insert the spring (A) into the hole (B) in the fusing frame.
Assembly: Put the fusing harness (A) on the heater lamp (B) as shown
in the figure and fix them together.
Place the fusing harness inside the rib (C).
E.Upper heat roller
Disassembly: There are three pawls on the fusing cover. Remove the
screws and slide the fusing cover to the right to remove.
The heater lamp is fixed on the fusing cover with a
screw. Slide the fusing cover to the front and remove the
screw, then remove the heater lamp.
(A)
(B)
(3)
(1)
(3)
(2)
(1)
(2)
(1)
(3)
(2)
(2)
(1)
(3)
(1)
(2)
(1)
(1)
(2)
Grease(JFE552)
Floil(GU2)
