G. Note for handling the drum unit, the transfer
unit, the developing unit, and the fusing unit
When handling the OPC drum unit, the transfer unit, and the devel-
oping unit, strictly observe the following items.
If these items are neglected, a trouble may be generated in the
copy and print image quality.
(Drum unit)
1) Avoid working at a place with strong lights.
2) Do not expose the OPC drum to lights including interior lights
for a long time.
3) When the OPC drum is removed from the machine, cover it
with light blocking material. (When using paper, use about 10
sheets of paper to cover it.)
4) Be careful not to attach fingerprints, oil, grease, or other for-
eign material on the OPC drum surface.
(Transfer unit)
1) Be careful not to attach fingerprints, oil, grease, or other for-
eign material on the transfer roller.
(Developing unit)
1) Be careful not to attach fingerprints, oil, grease, or other for-
eign material on the developing unit.
(Fusing unit)
1) Be careful not to put fingerprints, oil, grease, or other foreign
material on the fusing roller and the external heating belt.
2) Do not leave the fusing roller in contact state for a long time.
2. Transit and delivery
A. Implements, facility, and manpower
It is recommendable to use a forklift for bringing in the machine for
safety.
If no forklift is available, man-power of two persons is required. The
machine is considerably heavy, and requires safety precautions for
delivery and installation.
Transit of the machine must be made in packed condition to the
installing place.
Since the hard disk drive is built in the machine, use care not to
exert vibrations or shocks to the machine when in transit.
B. Delivery
Remove the packing materials prior to installation in the office envi-
ronment.
3. Unpacking

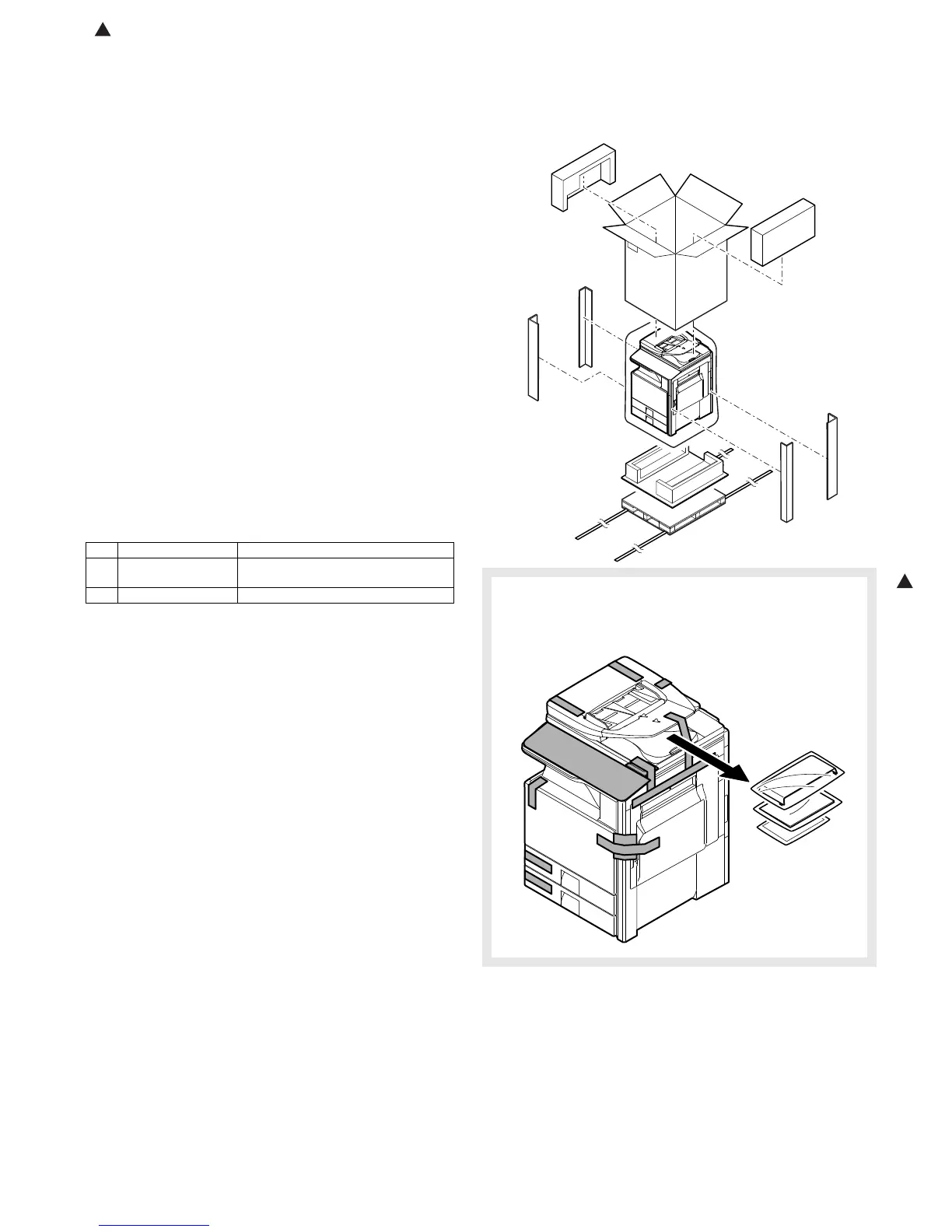

A. Unpacking procedure
1) Remove the PP band.
2) Remove the internal packing pads with the machine.
B. Removal of the fixing tape, protection material
and parts packed together
• MX-M283N/M363N/M363U/M453N/M453U/M503N/M503U
No. Content Method
1 Implements, facility,
and man power
Use a forklift. (If no forklift is available,
manpower of two persons is required.)
2 Delivery Transit must be made in packed condition.
