Sharp MX-M453N Installation Manual

MX-M503N MX-M283N/M363N/M363U/M453N/M453U/M503N/M503U/M282N/M362N/M452N/M502N 1 – 7

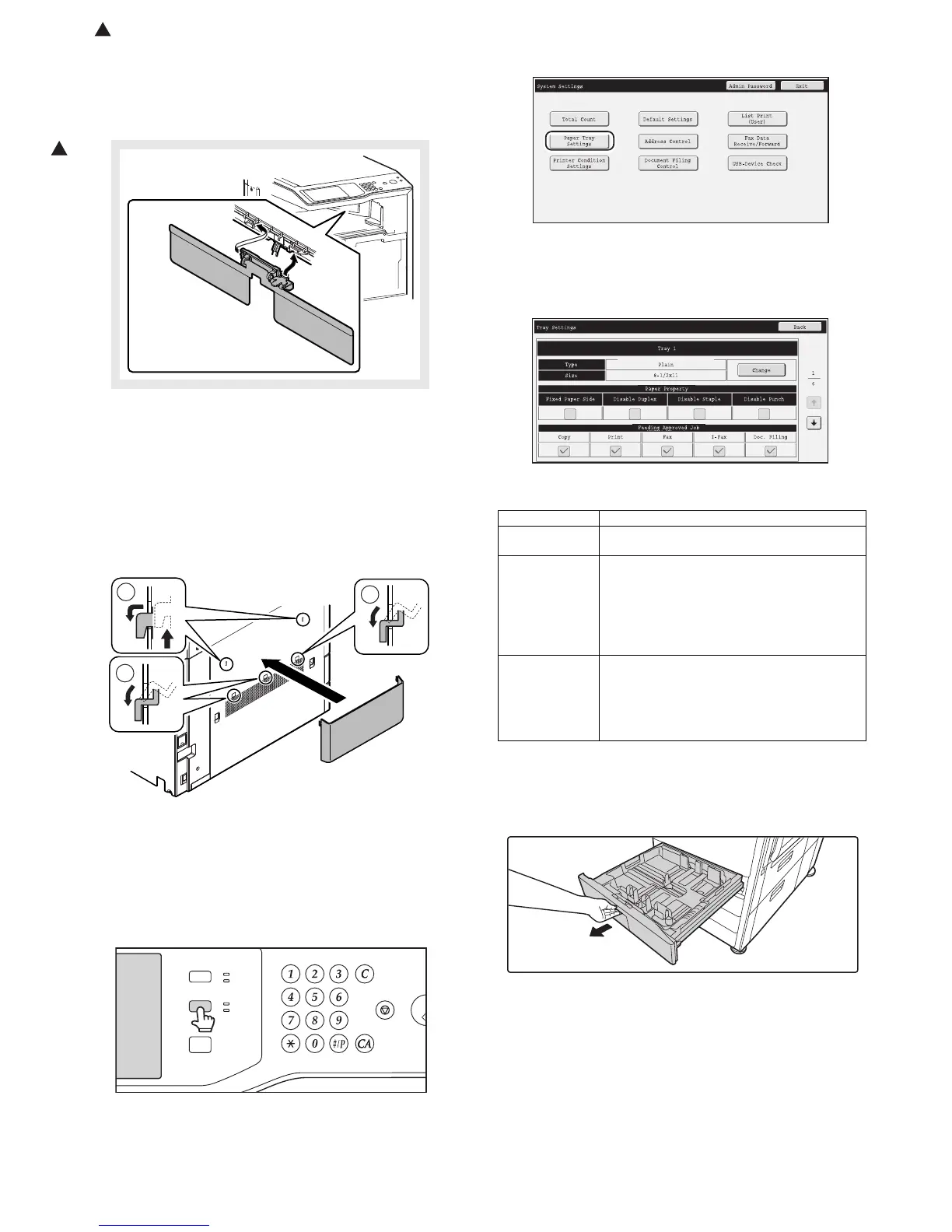

3) Install the paper holding plate unit.
* If the MX-FNX9 (Inner Finisher) or the MX-RBX3 (Interface
Unit) is installed when installing the main unit, do not install
the paper holding plate unit and the paper exit full detection
actuator.
F. Installation of the operation manual pocket
1) Install the Operation Manual storage cover to the left side of
the machine.
a) First, insert the pawl on the lower side of the Operation
Manual pocket.
b) Then, lift the pawl on the upper side and insert it, and slide
down to install.
* If the finisher is installed together with installation of the
machine, the Operation Manual storage cover must be
installed to the finisher.
G. Tr a y se tup
(1) Simulation setup
Change the tray setting in the "system setting" mode. If "Disabling
of Tray Settings" has been enabled in the system settings (adminis-
trator), the tray settings (except for the bypass tray) cannot be con-
figured.
1) Press the [SYSTEM SETTINGS] key.
2) Touch the [Paper Tray Settings] key.
3) Touch the [Paper Tray Settings] key to configure the settings.
These settings specify the paper type, paper size, and func-
tions allowed for each paper tray. When the [Tray Settings] key
is touched, a list appears showing the trays and the current
settings.
4) Touch the [Change] key in the above screen to change the set-
tings. The following settings can be configured.
(2) Tray size setup
1) Pull out the paper tray.
Gently pull the tray out until it stops.
If paper remains in the tray, remove it.
1
1
1
2
LOGOUT
HOME
IMAGE SEND
JOB STATUS PRINT
READY
DAT A
DAT A
LINE
SYSTEM
SETTINGS
Item Description
Type Select the type of paper that is loaded in the tray. The
paper types that can be selected vary by paper tray.
Size Select the paper size from the list. The paper sizes
that can be selected vary by tray. The sizes that can
be selected may also be restricted by the paper type
selected above.
If the desired size does not appear in the list, select
[Custom Size] and directly enter the size (only for the
bypass tray).
Feeding Approved
Job
Select the modes that can be used. If there is a
function that you do not wish to be used with the
selected tray, disable the function. When the "Type"
is other than plain paper, recycled paper, colored
paper, or a user type, [Fax] and [Internet Fax] cannot
be selected.
: '10/Jun/18
1

Sharp MX-M453N Specifications

General

Functions	Copy, Print, Scan
Print Speed	45 ppm
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Hard Disk Drive	80 GB
Scan Resolution	600 x 600 dpi
Maximum Copy Paper Size	A3
Warm-up Time	20 seconds
Paper Capacity	Standard: 1, 100 sheets, Maximum: 5, 600 sheets
Network Connectivity	Ethernet
Memory	Standard: 1 GB
Copy Speed	45 ppm
Copy Paper Capacity	Standard: 1, 100 sheets; Maximum: 5, 600 sheets
Power Consumption	1.84 kW
