Sharp MX-M453N Installation Manual

MX-M503N MX-M283N/M363N/M363U/M453N/M453U/M503N/M503U/M282N/M362N/M452N/M502N 1 – 4
: '10/Jun/18
1
• MX-M282N/M362N/M452N/M502N
C. Check the parts packed together
1) Check that all the parts are in the package.
* Expect Europe.
4. Installation
<Note before installation>
* When connecting the main unit with the optional STAND/1 X 500
SHEET PAPER DRAWER (MX-DEX8) or STAND/2 X 500
SHEET PAPER DRAWER (MX-DEX9), first unpack and install
the MX-DEX8 or MX-DEX9; then unpack the main unit and
securely place the main unit on the MX-DEX8 or MX-DEX9
before installing the main unit.

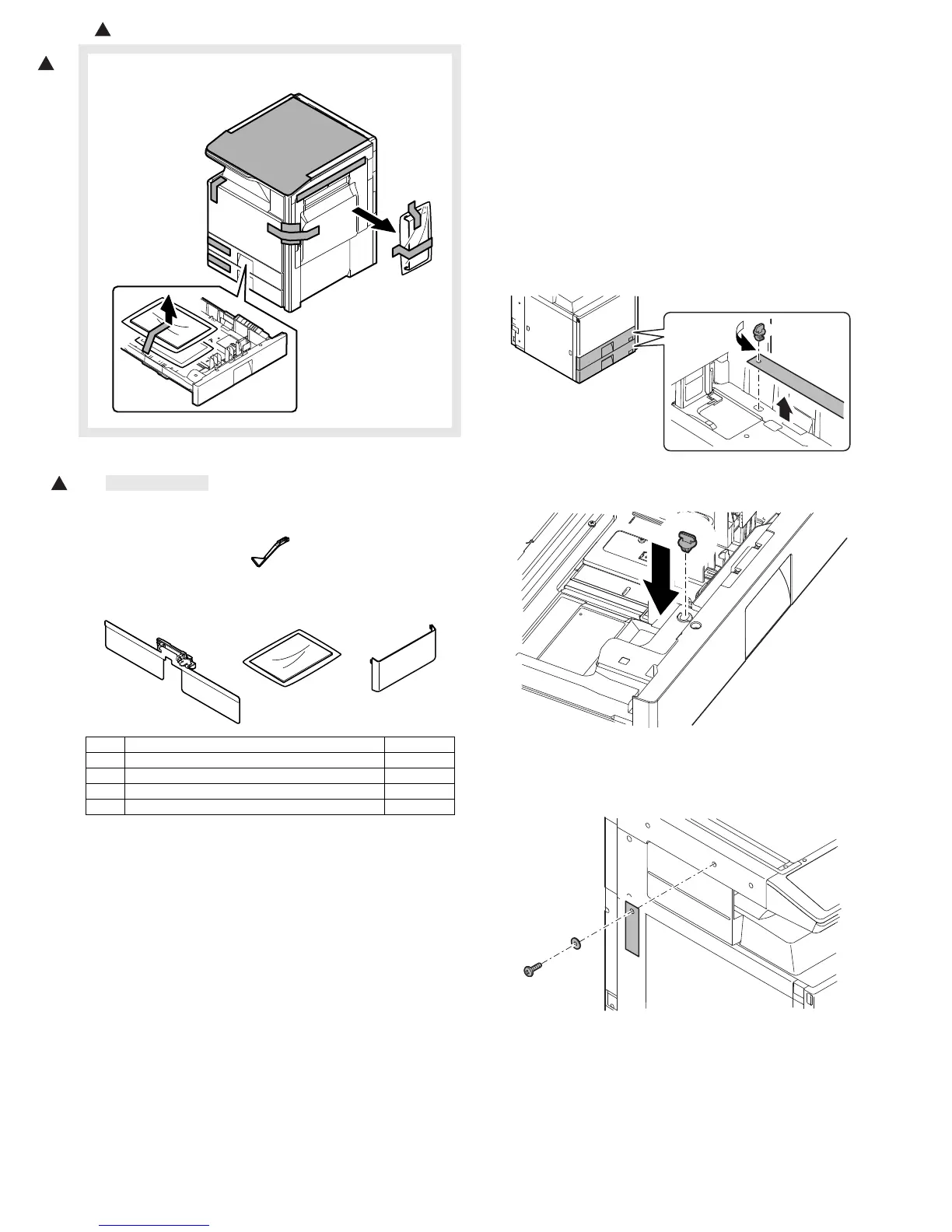

A. Lock release
(1) Tray rotation plate lock release
1) Pull out the tray, and remove the rotation plate fixing material
and the tray note label.
2) Attach the removed fixing material to the position shown in the
figure for storage.
(2) Scanner (2/3 mirror unit) lock release
1) Remove the optical unit fixing screw, and remove the note
label.
NO. Parts name Quantity
1 Paper exit full detection actuator 1
2 Paper holding plate unit 1
3 Operation manual 1
4 Operation manual pocket 1
1
1
1
3
4
2

Sharp MX-M453N Specifications

General

Functions	Copy, Print, Scan
Print Speed	45 ppm
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Hard Disk Drive	80 GB
Scan Resolution	600 x 600 dpi
Maximum Copy Paper Size	A3
Warm-up Time	20 seconds
Paper Capacity	Standard: 1, 100 sheets, Maximum: 5, 600 sheets
Network Connectivity	Ethernet
Memory	Standard: 1 GB
Copy Speed	45 ppm
Copy Paper Capacity	Standard: 1, 100 sheets; Maximum: 5, 600 sheets
Power Consumption	1.84 kW
