PART NAMES AND FUNCTIONS

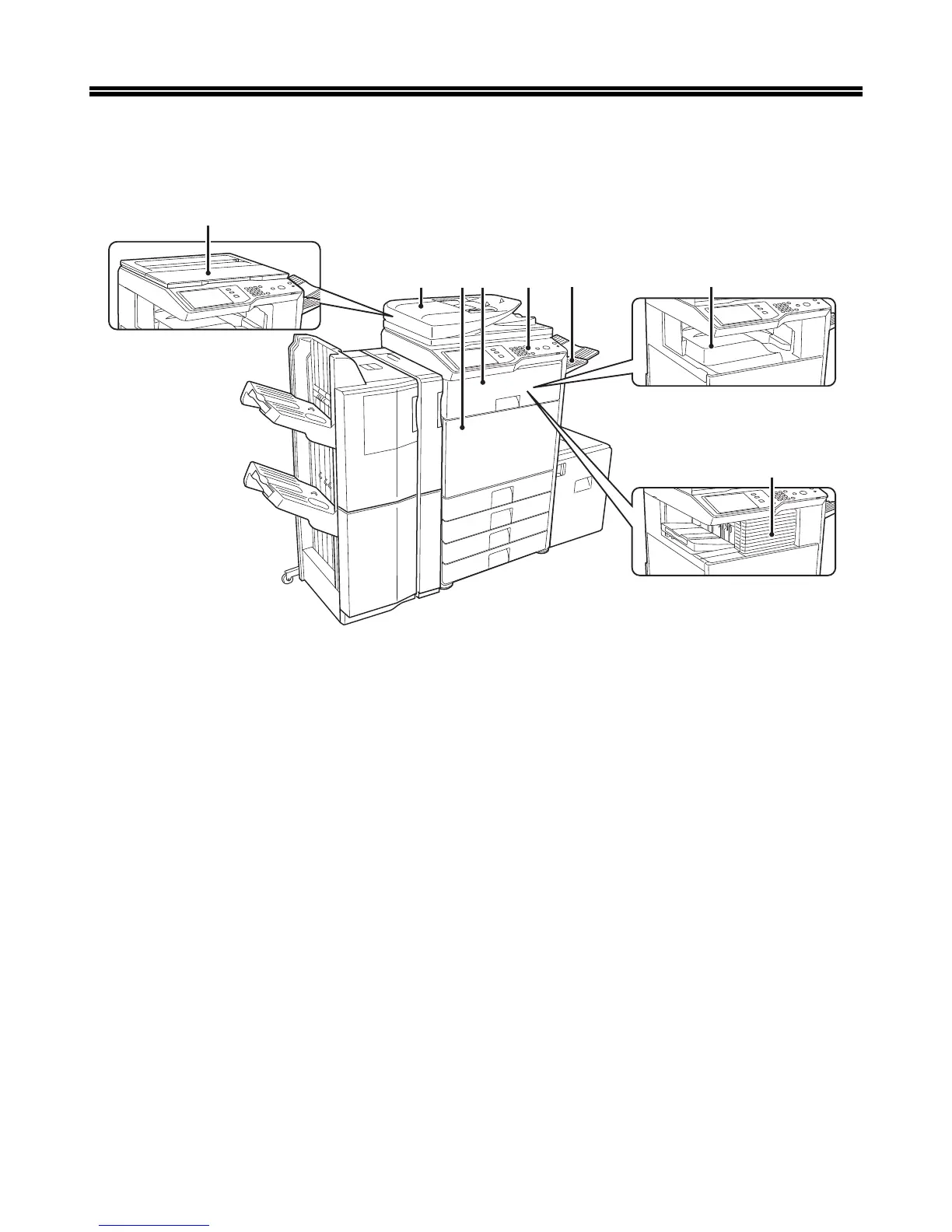

EXTERIOR
(1) Document cover*
Place an original on the document glass and close the
document cover before copying starts.
(2) Automatic document feeder*
This automatically feeds and scans multiple originals.
Both sides of 2-sided originals can be automatically
scanned.
(3) Front cover
Open this cover to switch the main power switch to "On"
or "Off" or to replace a toner cartridge.
(4) Paper pass unit*
This transfers output to the finisher (large stacker) or
saddle stitch finisher.
(5) Operation panel
This is used to select functions and enter the number of
copies.
(6) Exit tray unit (right tray)
*
When installed, output can be delivered to this tray.
(7) Output tray (centre tray)
Output is delivered to this tray.
(8) Finisher*
This can be used to staple output. A punch module can
also be installed to punch holes in output.
* Peripheral device.
(2)
(3)
(4)
(7)
(8)
(6)
(5)
(1)
When a finisher / saddle stitch
finisher is not installed
When a finisher is installed
