MX-M700N PAPER TRANSPORT SECTION G – 9

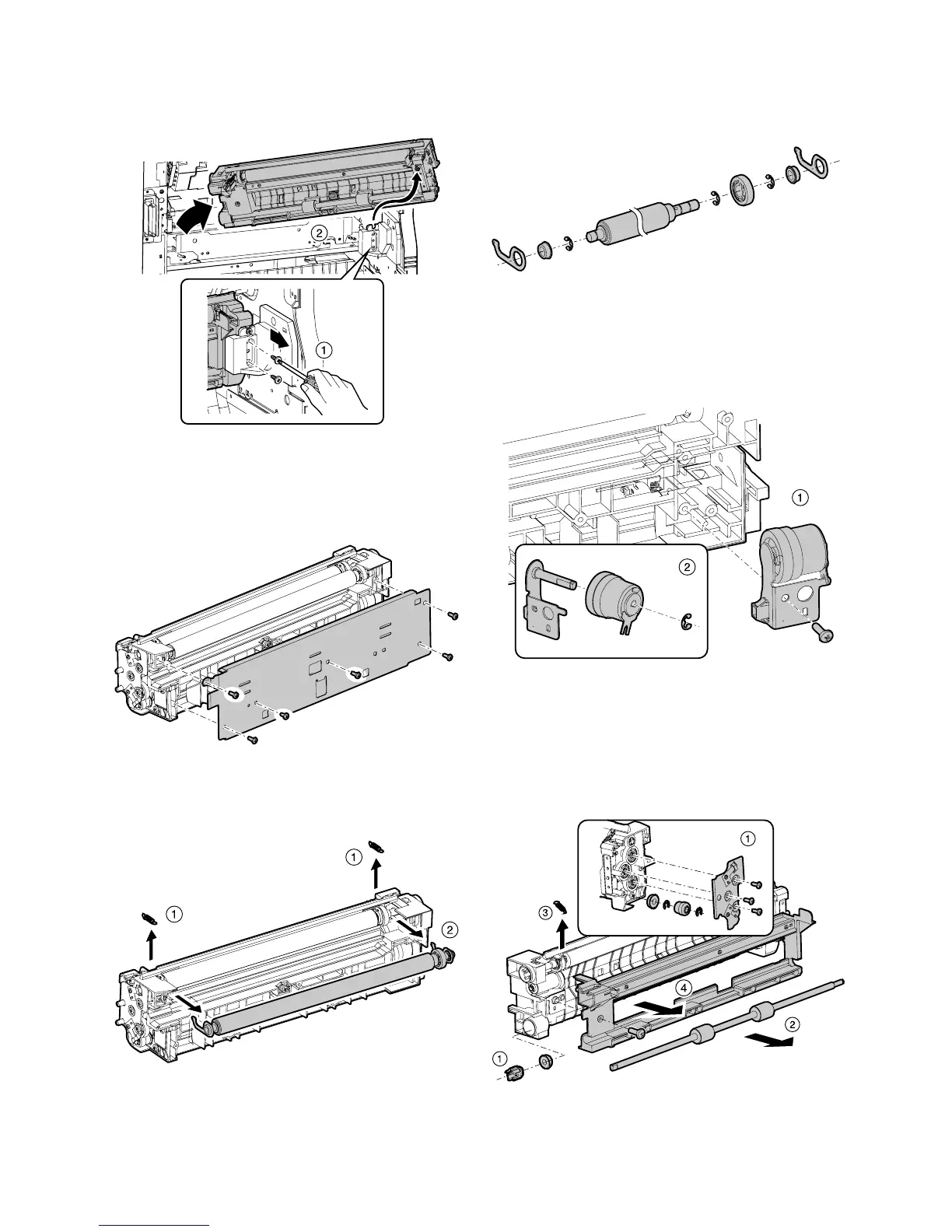

4) Remove the resist roller unit.
a. Resist roller (Idle)
1) Remove the resist roller unit. (See “(1) Resist roller unit”)
2) Remove the cover.
3) Remove the follower roller tension spring.
4) Remove the resist roller (Idle) unit.
5) Remove the bearing, and remove the E-ring, the gear, and
the pin.
b. Resist roller brake clutch
1) Remove the resist roller unit. (See “(1) Resist roller unit”)
2) Remove the cover. (See “a. Resist roller (Idle)”)
3) Remove the resist roller brake clutch fixture.
4) Remove the E-ring and the resist roller break clutch.
c. Transport roller 15
1) Remove the resist roller unit. (See “(1) Resist roller unit”)
2) Remove the front side cover.
3) Remove the E-ring, the gear, and the bearing.
4) Remove the coupling bearing on the rear side.
5) Remove the transport roller 15.
