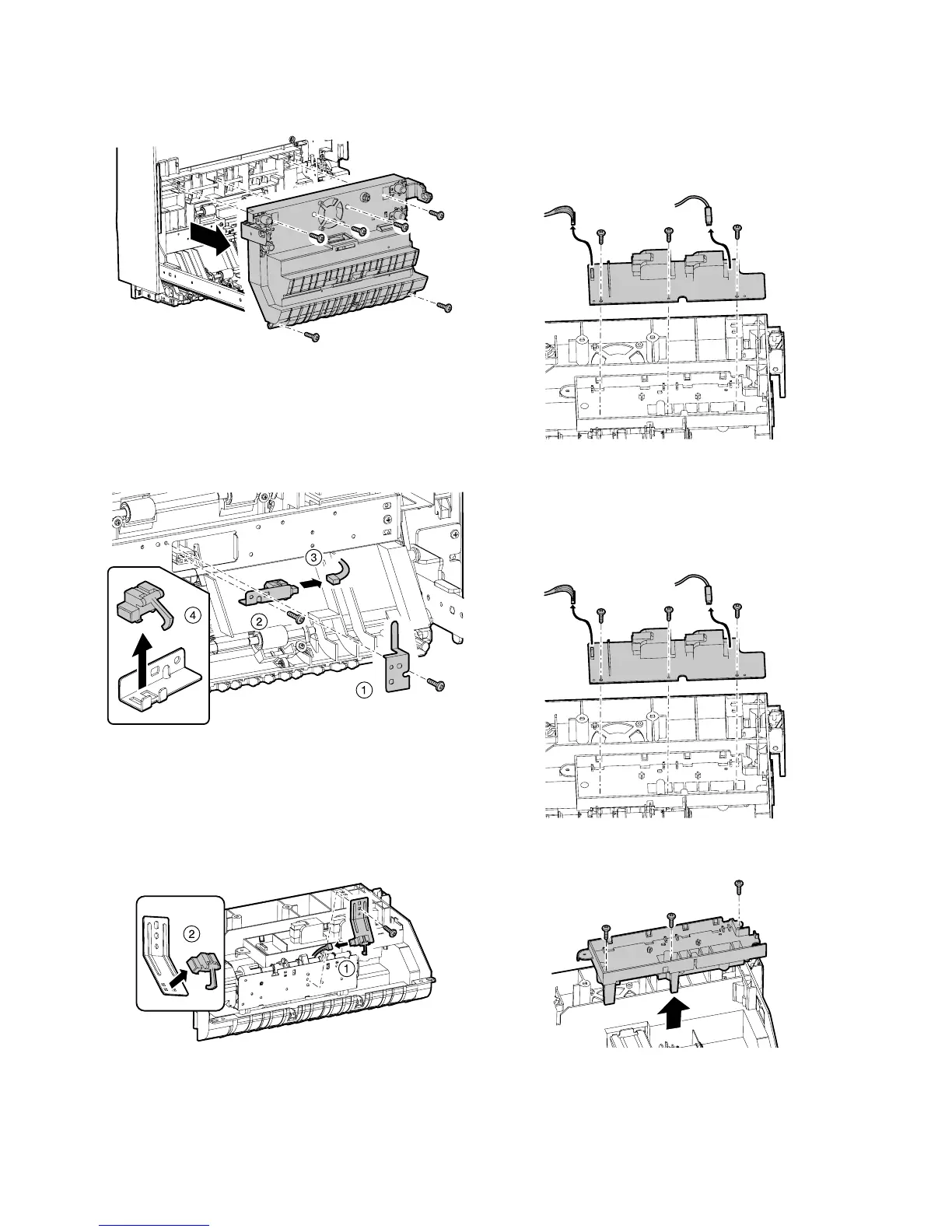

MX-M700N DUPLEX SECTION H – 9
4) Remove the left door transport paper guide R unit.
l. Duplex paper pass detector 2
1) Pull out the left door.
2) Remove the left door transport paper guide R unit.
3) Remove the duplex paper pass detector 2.
m. Paper pass detector 2
1) Pull out the left door.
2) Remove the left door transport paper guide R unit.
3) Remove the paper pass detector 2.
n. Transfer high voltage transformer
1) Pull out the left door.
2) Remove the left door transport paper guide R unit.
3) Remove the transfer high voltage transformer.
o. Transfer separation motor
1) Pull out the left door.
2) Remove the left door transport paper guide R unit.
3) Remove the transfer high voltage transformer.
4) Remove the PWB holder.
