MX-M700N DUPLEX SECTION H – 10

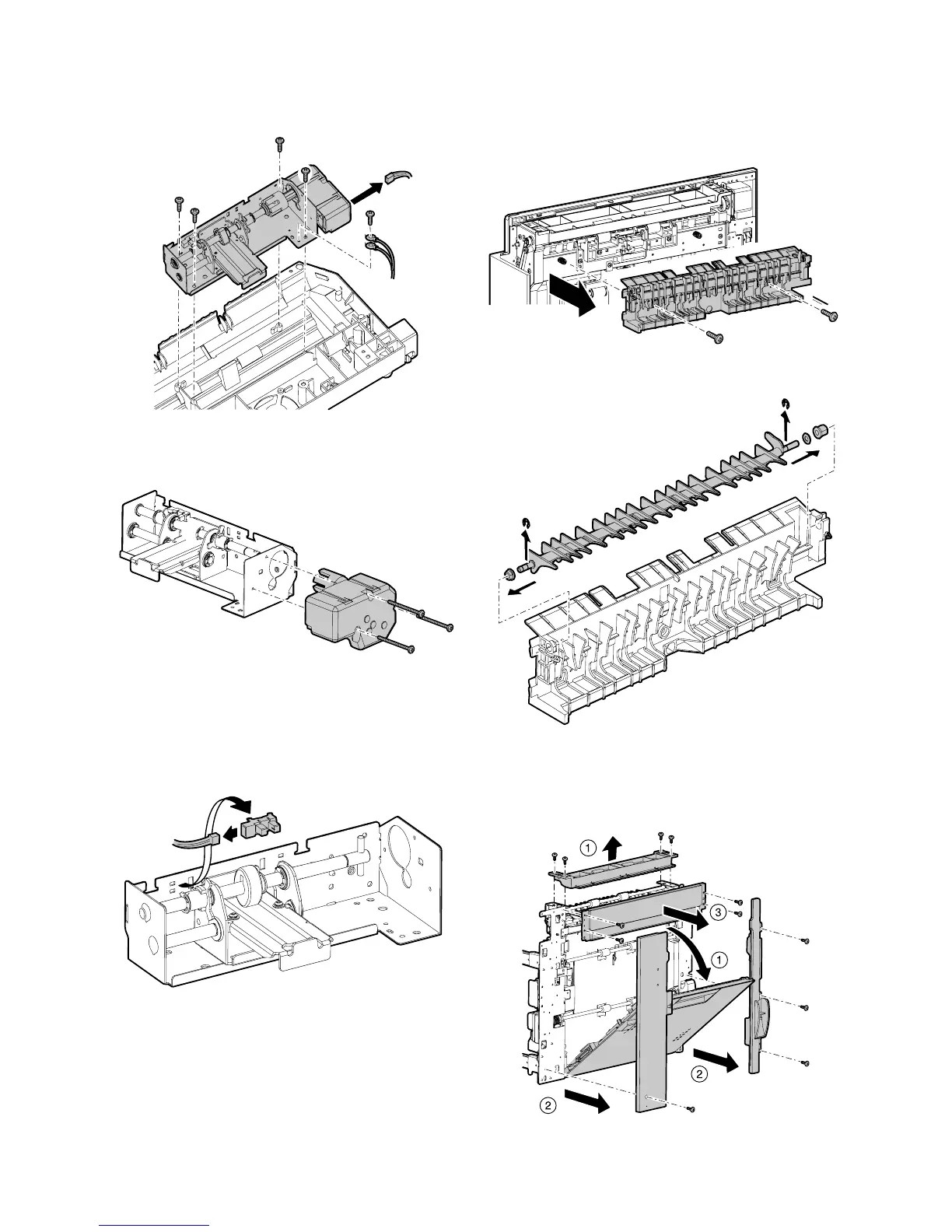

5) Remove the transfer separation unit.
6) Remove the transfer separation motor.
p. Transfer belt separation home position sensor
1) Pull out the left door.
2) Remove the left door transport paper guide R unit.
3) Remove the transfer belt separation home position sensor.
q. Switchback gate
1) Pull out the left door.
2) Remove the paper guide unit.
3) Remove the paper exit gate.
r. Paper exit gate
1) Pull out the left door.
2) Remove the paper guide unit. Open the door, and remove the
cabinets.
