BEFORE USING THE MACHINE
Contents
This section provides basic information about the machine. Please read this chapter before using the machine.

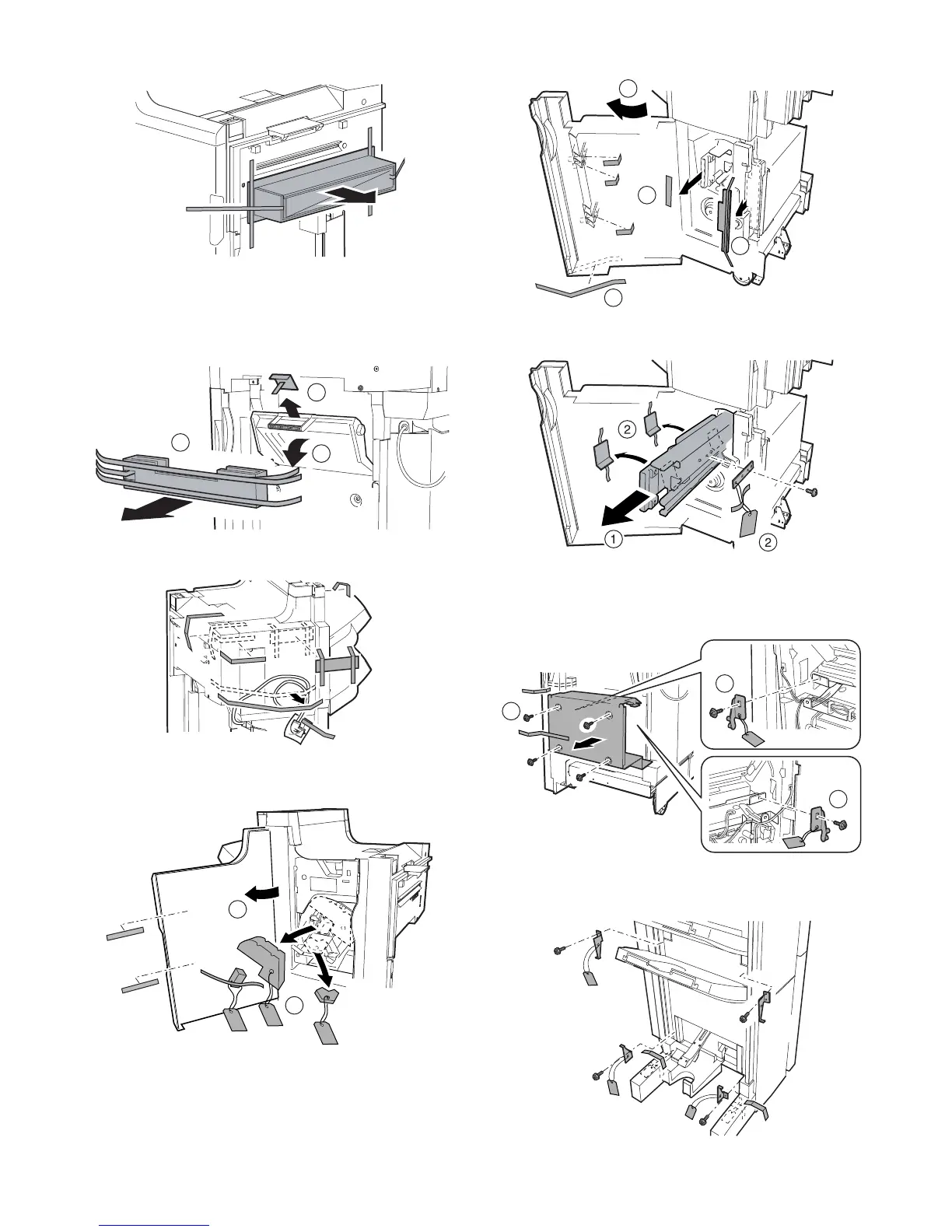

PART NAMES AND FUNCTIONS

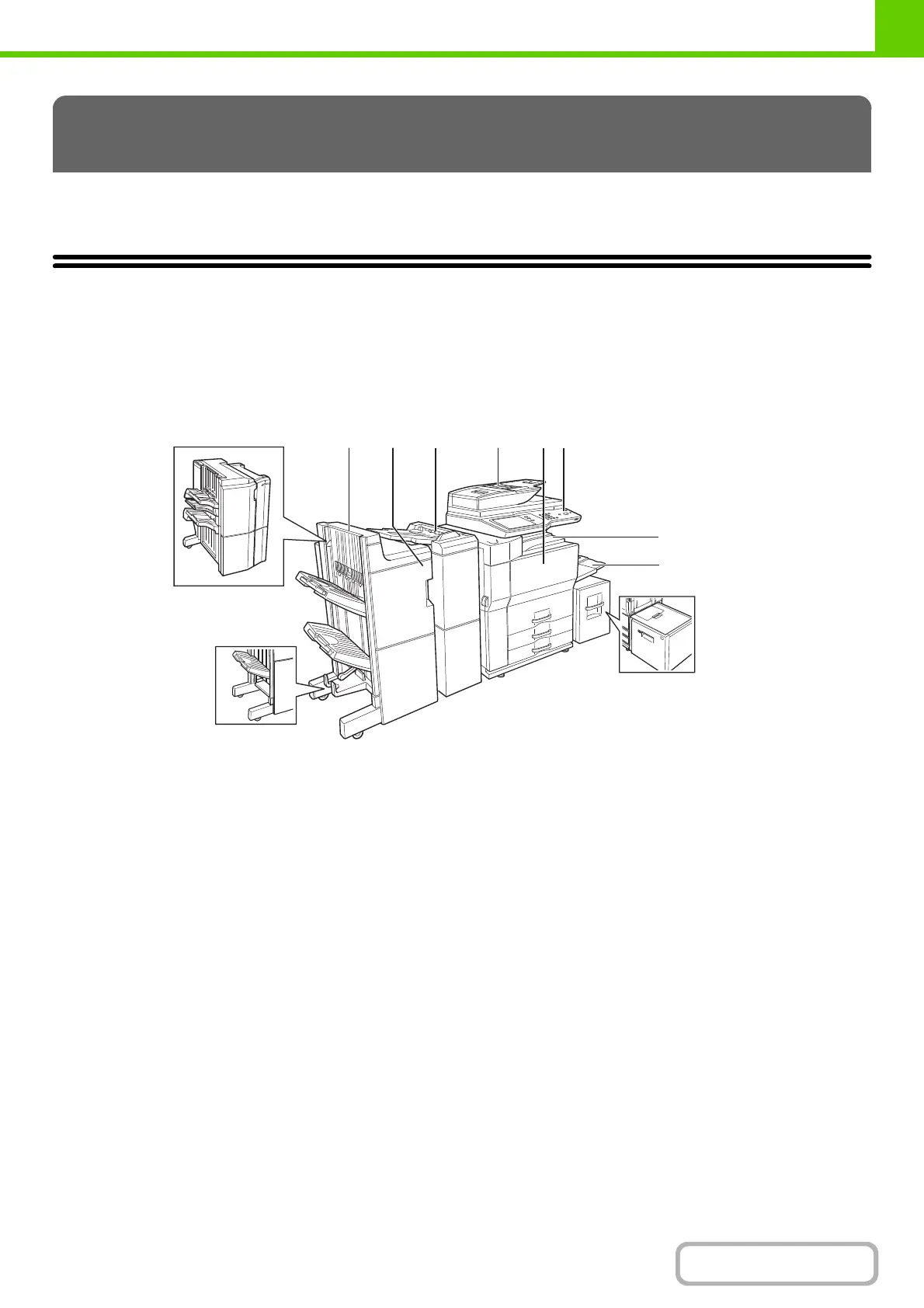

EXTERIOR
(1) Saddle stitch finisher (MX-FN16)
*
Output device that enables the use of the staple function
and offset function.
☞ FINISHER AND SADDLE STITCH FINISHER (page 1-50)
Finisher (MX-FN15)
*
Output device that enables use of the staple function,
offset function and pamphlet copy function.
☞ FINISHER AND SADDLE STITCH FINISHER (page 1-50)
Finisher (3 trays)
*
Output device that enables use of the staple function for
up to 100 sheets (8-1/2" x 11" size paper).
☞ FINISHER (3 TRAYS) (page 1-56)
(2) Punch module (AR-PN4B)
*
Punches holes in copies and other output.
Requires finisher (MX-FN15) or saddle stitch finisher
(MX-FN16).
☞ FINISHER AND SADDLE STITCH FINISHER (page 1-50)
(3) Inserter (MX-CF10)
*
Paper set in an inserter can be inserted into output as
covers or inserts. The inserter can be used to staple
output and punch holes manually.
☞ INSERTER (page 1-61)
(4) Automatic document feeder
This automatically feeds and scans multiple sheet
originals. Both sides of two-sided originals can be
scanned at once.
☞ PLACING THE ORIGINAL (page 1-44)
(5) Front cover
Open to replace toner cartridge.
☞ TURNING THE POWER ON AND OFF (page 1-15)
☞ REPLACING THE TONER CARTRIDGES (page 1-72)
(6) Operation panel
This is used to select functions and enter the number of
copies.
☞ OPERATION PANEL (page 1-8)
(7) Center tray
Finished sheets are deposited here.
(8) Bypass tray
Special papers (including transparency film) and copy
paper can be fed from the bypass tray.
☞ LOADING PAPER IN THE BYPASS TRAY (page 1-42)
BEFORE USING THE MACHINE
(1) (2) (3) (4) (5) (6)
(8)
(7)

Sharp MX-M623U Specifications

General

Brand	Sharp
Model	MX-M623U
Category	All in One Printer
Language	English
