BEFORE USING THE MACHINE

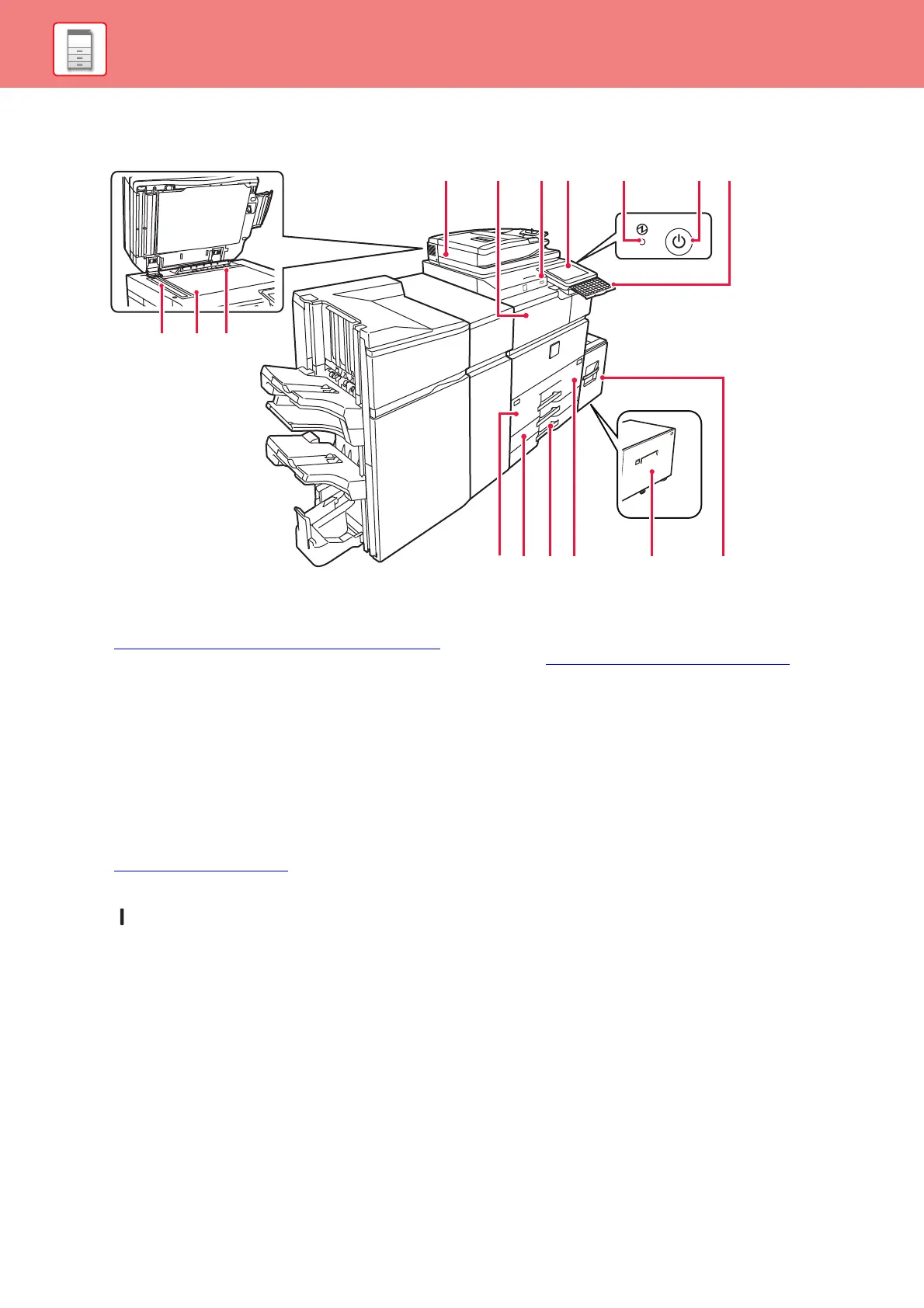

PART NAMES AND FUNCTIONS
(1) Automatic document feeder
It automatically feeds and scans multiple originals. Both sides of
2-sided originals can be automatically scanned at one time.
►
USING THE AUTOMATIC DOCUMENT FEEDER (page 16)
(2) Paper pass unit*
Relay between the machine and the finisher, finisher (large
stacker), saddle stitch finisher or saddle stitch finisher (large
stacker).
(3) USB port (A type)
This is used to connect a USB device such as a USB memory
device to the machine.
Supports USB 2.0 (Hi-Speed).
(4) Operation panel
This panel hosts the [Power] button, [Power Save]
button/indicator, error indicator, [Home Screen] key, main power
indicator, data notification indicator, and touch panel.
Use the touch panel to operate each of these functions.
► OPERATION PANEL (page 14)
(5) Main power indicator
This lamp lights up when the machine's main power switch is in
the “ ” position.
(6) [Power] button
Use this button to turn the machine's power on and off.
(7) Keyboard
Use this as a substitute for the soft keyboard displayed on the
touch panel. When not being used, it can be stored under the
operation panel.
(8) Scanning area
Originals placed in the automatic document feeder are scanned
here.
(9) Document glass
If you want to scan books or other thick originals that cannot be
fed through the automatic document feeder, place them on this
glass.
► USING THE DOCUMENT GLASS (page 16)
(10) Original size detector
This unit detects the size of an original placed on the document
glass.
(11) Tray 1
Store paper in this tray. A maximum of 1250 sheets (20 lbs. (80
g/m
2
)) of paper can be loaded.
(12) Tray 3
Store paper in this tray. A maximum of 500 sheets (20 lbs. (80
g/m
2
)) of paper can be loaded.
(13) Tray 4
Store paper in this tray. A maximum of 500 sheets (20 lbs. (80
g/m
2
)) of paper can be loaded.
(14) Tray 2
Store paper in this tray. A maximum of 850 sheets (20 lbs. (80
g/m
2
)) of paper can be loaded.
(15) Tray 5 (MX-LC19)*
Store paper in this tray. A maximum of 3000 sheets (20 lbs. (80
g/m
2
)) of paper can be loaded.
(16) Tray 5 (MX-LC18)*
Store paper in this tray. A maximum of 3500 sheets (20 lbs. (80
g/m
2
)) of paper can be loaded.
* Peripheral device. For more information, see the User's Manual.
