12

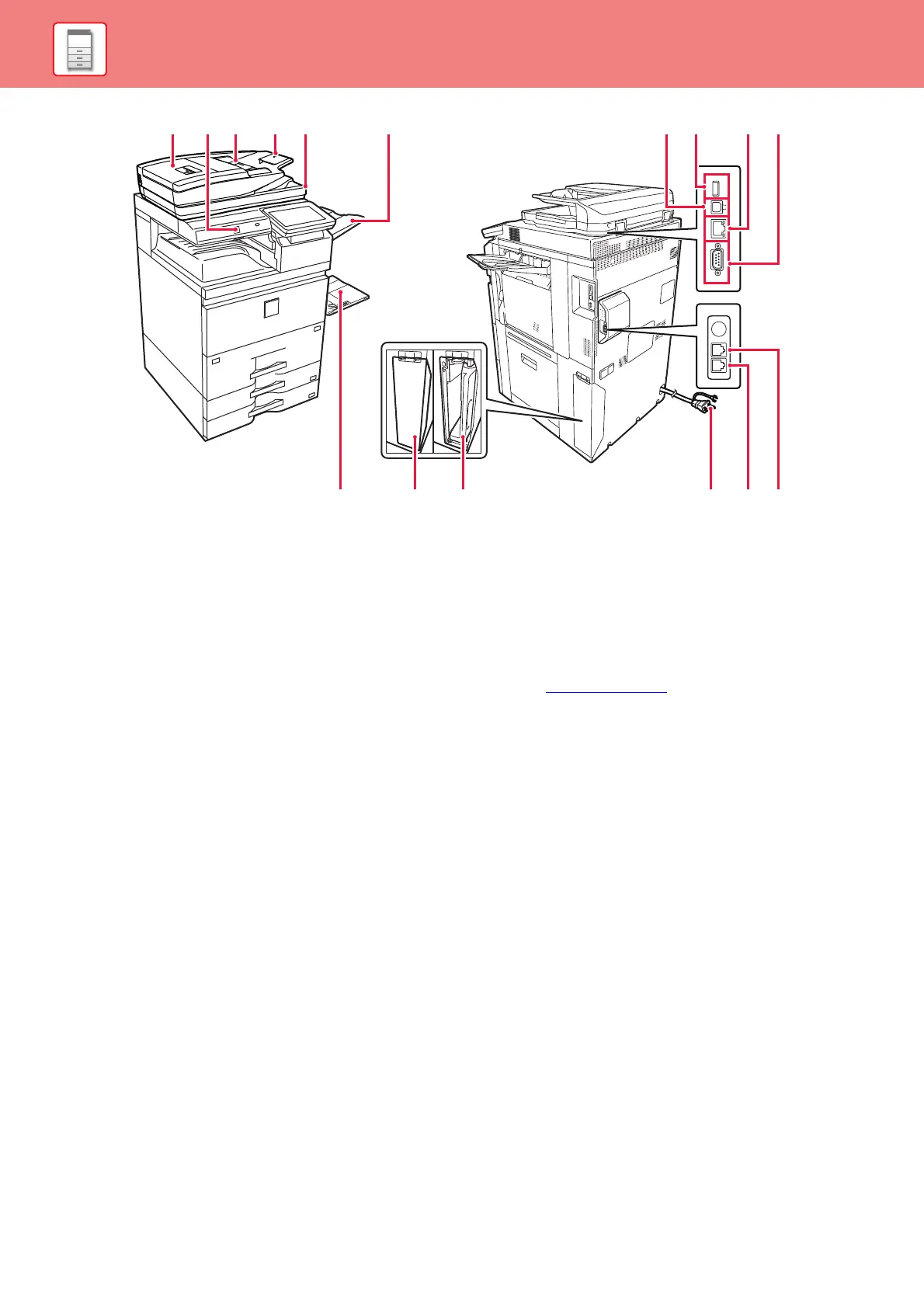

BEFORE USING THE MACHINE
(1) Document feeding area cover
Open this cover to remove an original misfeed.
(2) Motion sensor
This sensor detects the presence of a person that approaches
the machine, and automatically wakes the machine from sleep
mode (Motion Sensor Mode Only).
(3) Original guides
These guides help ensure that the original is scanned correctly.
Adjust the guides to the width of the original.
(4) Document feeder tray
Place the original.
Originals must be placed face up.
(5) Original exit tray
The original is discharged to this tray after scanning.
(6) Exit tray unit (right tray)*
Set so that paper is output into this tray as required.
(7) USB connector (B type)
The machine does not use this connector.
(8) USB port (A type)
This is used to connect a USB device such as a USB memory
device to the machine.
Supports USB 2.0 (Hi-Speed).
(9) LAN connector
Connect the LAN cable to this connector when the machine is
used on a network.
Use a shielded LAN cable.
(10) Service-only connector
(11) Bypass tray
Use this tray to feed paper manually.
When loading paper larger than 8-1/2" x 11"R or A4R, pull out
the extension guide.
► Bypass tray (page 21)
(12) Cover for waste toner box
Open this cover when you need to replace the waste toner box.
(13) Waste toner box
This container collects excess toner that remains after printing.
(14) Power plug
(15) Telephone line jack (LINE)*
When the fax function of the machine is used, the telephone line
is connected to this jack.
(16) Extension phone jack (TEL)*
When the fax function of the machine is used, an extension
phone can be connected to this jack.
*1 Peripheral device. For more information, see the User's Manual.
(3)(1) (4) (5)
(2)
(7)
(8) (9) (10)
(15) (16)
(6)
(11) (12) (13) (14)
To Next Page
