Sharp MZ-800 User Manual

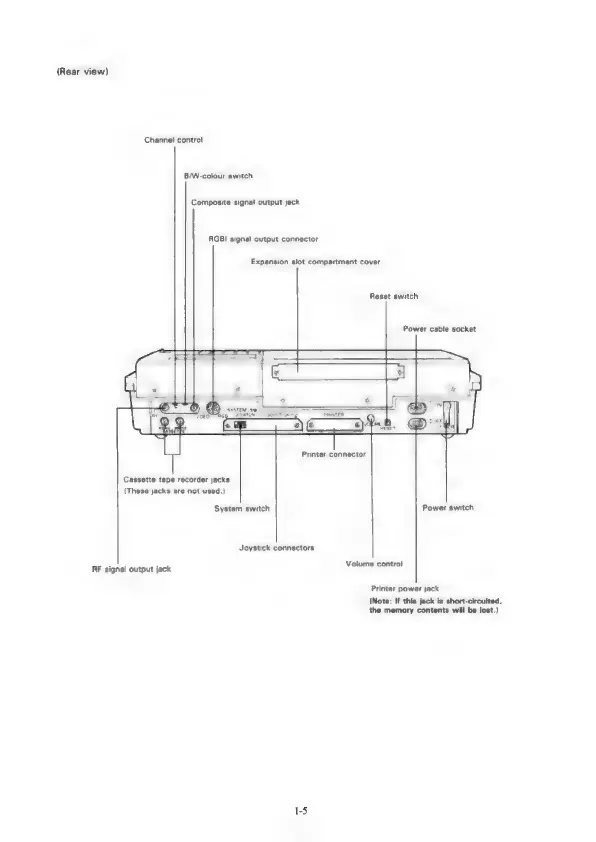

(Rear view)
Channel control
B/W-colour switch
Composite signal output jack
RGBI signal output connector
Expansion slot compartment cover
Reset switch
Power cable socket
Printer connector
Cassette tape recorder jacks
(These jacks are not used.)
‘System switch Power switch
Joystick connectors
RF
signal
output
jack
Volume
control
Printer power jack
(Note: If this jack is short-circuited,
the memory contents will be lost.)
1-5
