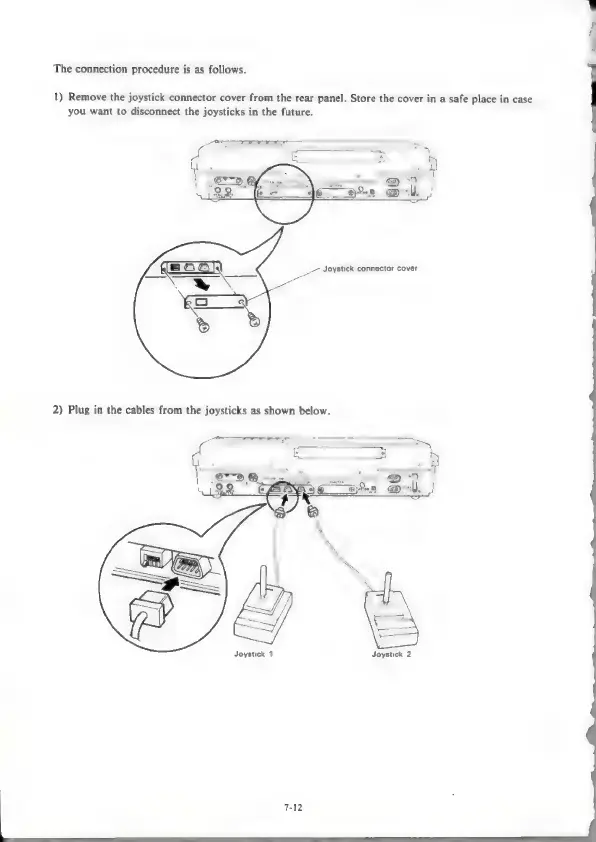

The
connection
procedure
is
as
follows.
1)
Remove
the
joystick
connector
cover
from
the
rear
panel.
Store
the
cover
in
a
safe
place
in
case
you
want
to
disconnect
the
joysticks
in
the
future.
Joystick
connector
cover
2)
Plug
in
the
cables
from
the
joysticks
as
shown
below.
Be
Joystick
1
Joystick
2
7-12
